SLM200 Sliding Door Operator

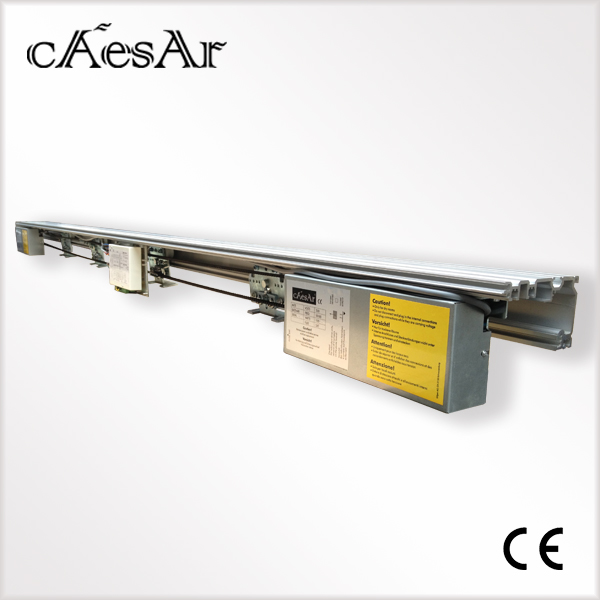

EC200 automatic door operator similar as Kaba SLM


Feature and Advantages

-Dynamic power limitation
-LED-type function and error indicators
-Prioritised fulfilment of operating commands
-Weight and path measurement
-Testing of safety and security elements
-End-point positioning

This automatic sliding door system including all related glass panels and profille


Door parameters ELM200 Basic module
1 leaf sliding door   Modular design
clear passage width 700-3000mm Microprocessor control
Max leaf weight 1×300kg Function program
2 leaf sliding door 800-3000mm -Automatic
Max leaf weight 2×200kg -Permanent open
Technical data   -Partial open
Height 110mm -Exit only
Structural depth 180mm -Manual release device
Opening&closing force,max 220N -Locking
Motor Double
Adjustable opening speed 30-80cm/s
Adjustable closing speed 30-80cm/s
Adjustable pausing time 0-10s
Power supply data 230V, 50/60Hz
Power consumption 200W
Degree of protection IP21
