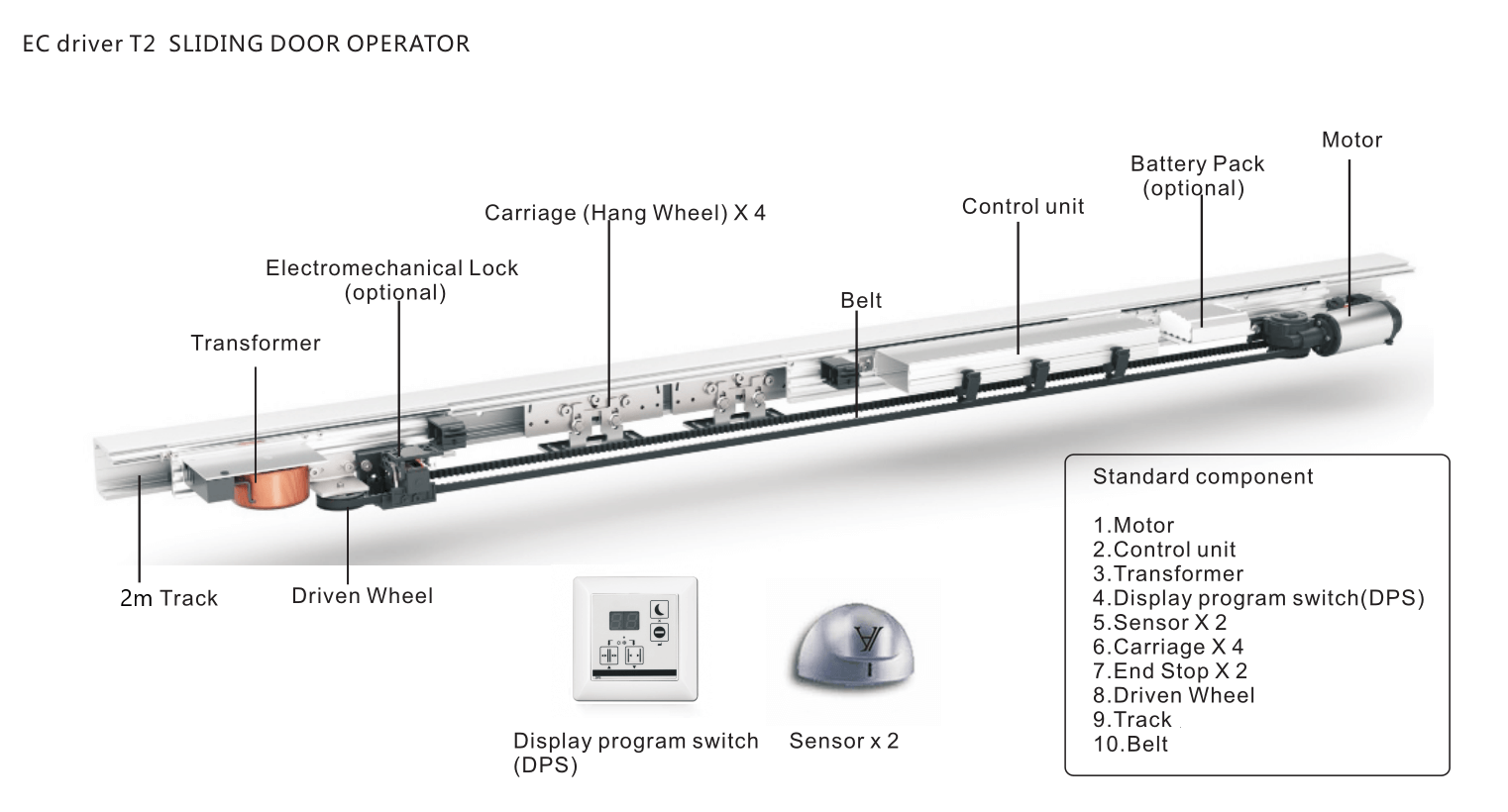

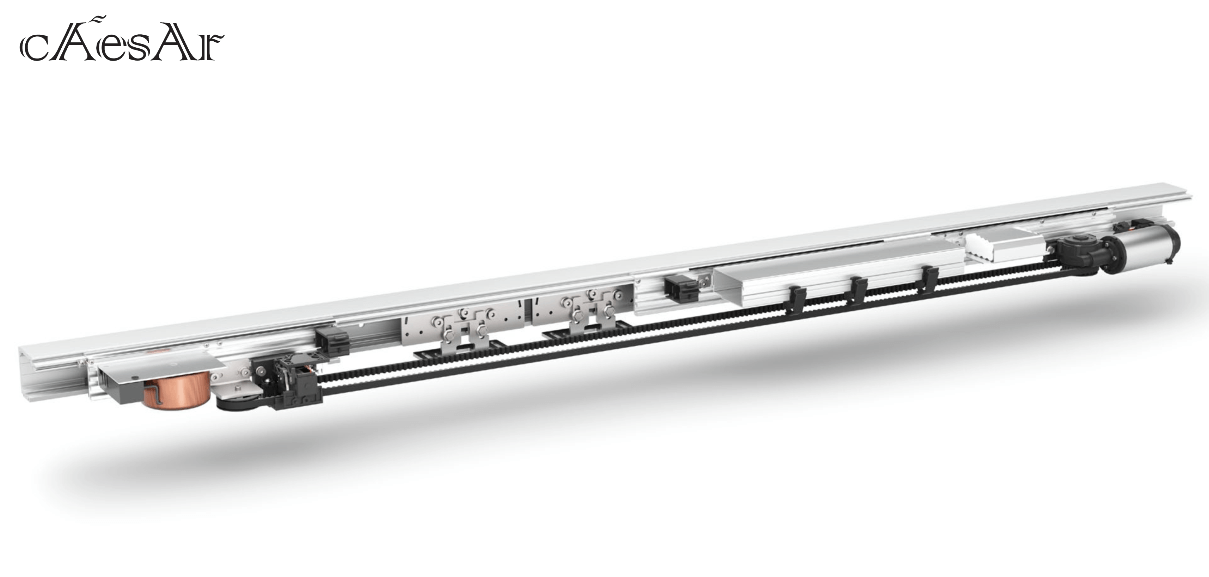

ECdrive T2 Sliding Automatic Door System

Drive system for linear sliding doors in high traffic

The linear sliding door system EC driver T2 offers numerous convincing benefits at an excellent
cost/performance ratio. The drive is suitable for doors in high traffic areas. The EC drive T2 covers door
leaf weights of up to 120 kg and is uncompromisingly reliable. High-quality materials and the latest
control technology guarantee high efficiency. Servicing costs are considerably reduced thanks to the
self-cleaning roller carriage. The rounded cover in the elegant design gives the system an attractive

Features and benefits

1.Driving motor adopts brush speed regulating motor, which has large torque, wide adjustable speed range and overheat protection of motor;

2.Transformer: high power, low temperature rise, small size;

3.The pulley comes with a cleaning brush,which has high strength, good abrasion resistance and low noise;

4.CPU control unit has self-learning program;

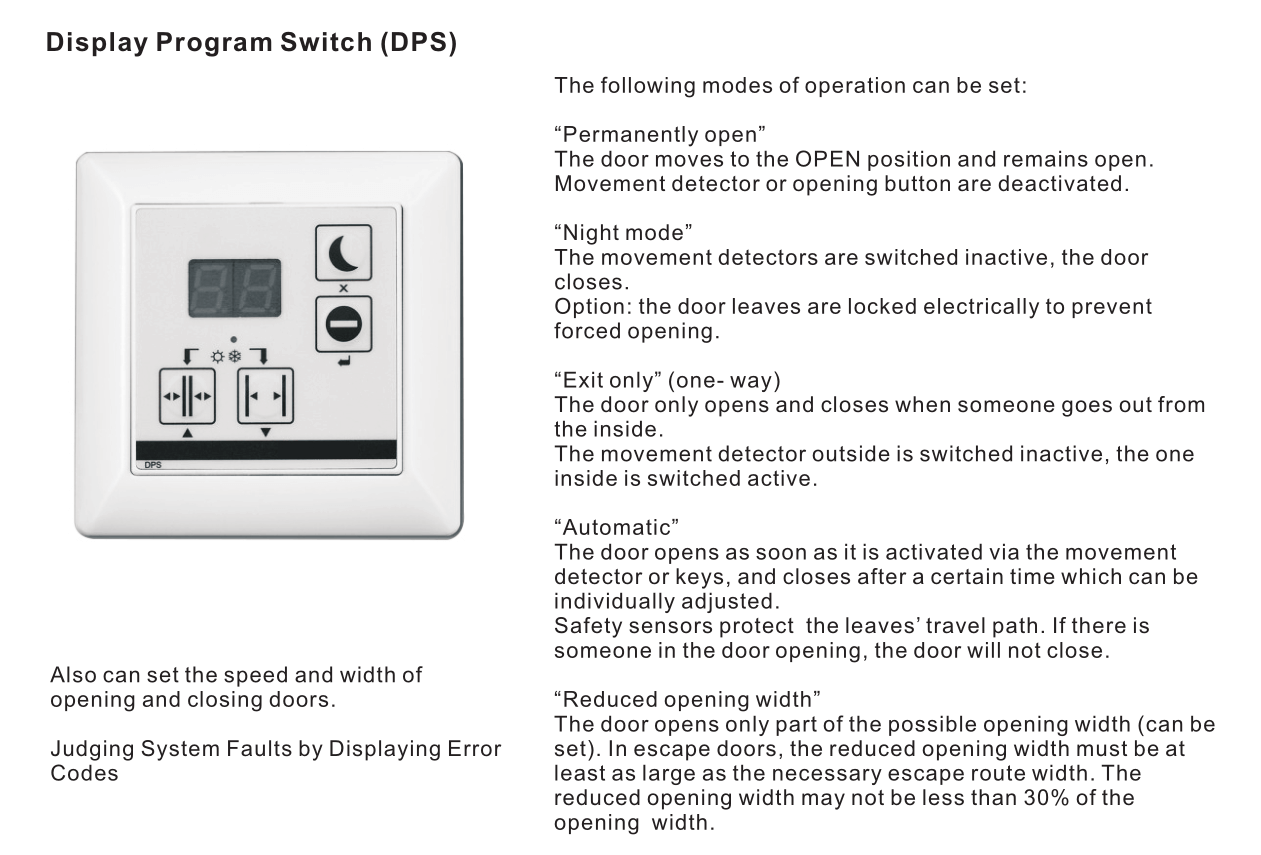

5.All parameters and fault diagnosis of the system can be adjusted by display programme switch (DPS);

6.With automatic reverse function, when the door encounters obstacles in the process of closing, it will automatically move in the opposite direction.

7.May be combined with all standard door profiles

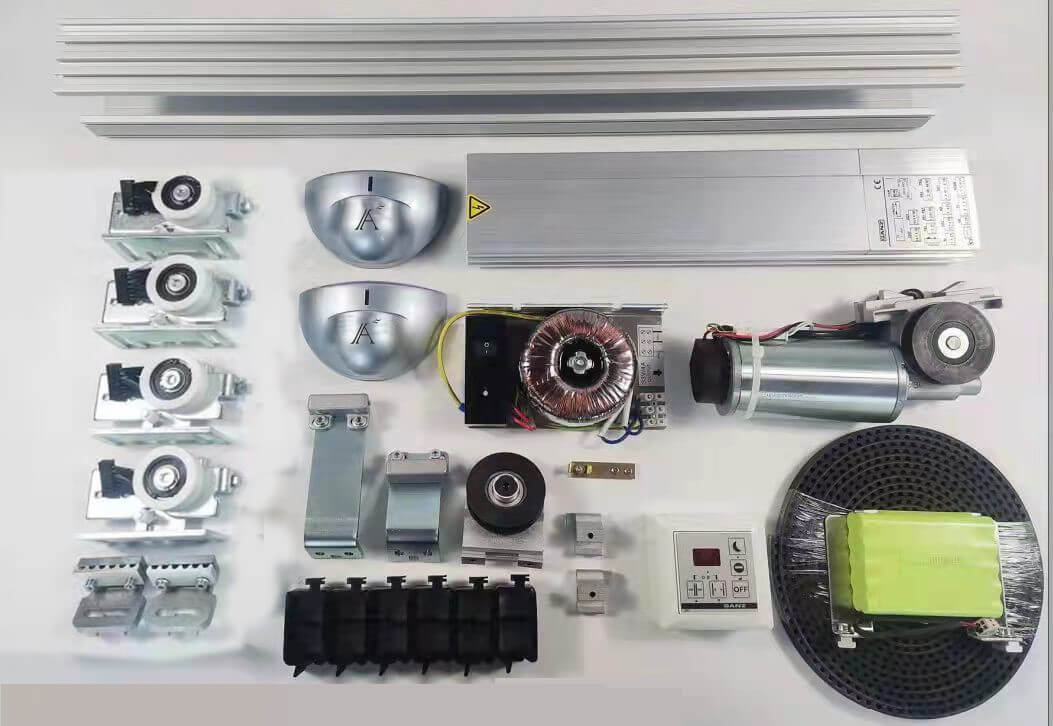

8.Fully comprehensive range of accessories

9.Reliable investment due to compliance with all relevant European standards.
