Dunker Motor for ES200 Sliding Door Operator

Description

Dunkermotoren – Ametek Germany develops and produces precision motors for more than 50 years. Their motors are known for their strength and durability. Based on years of experience, we believe in their quality, using only the original Dunkermotoren motor as the drive unit for automatic door operators.

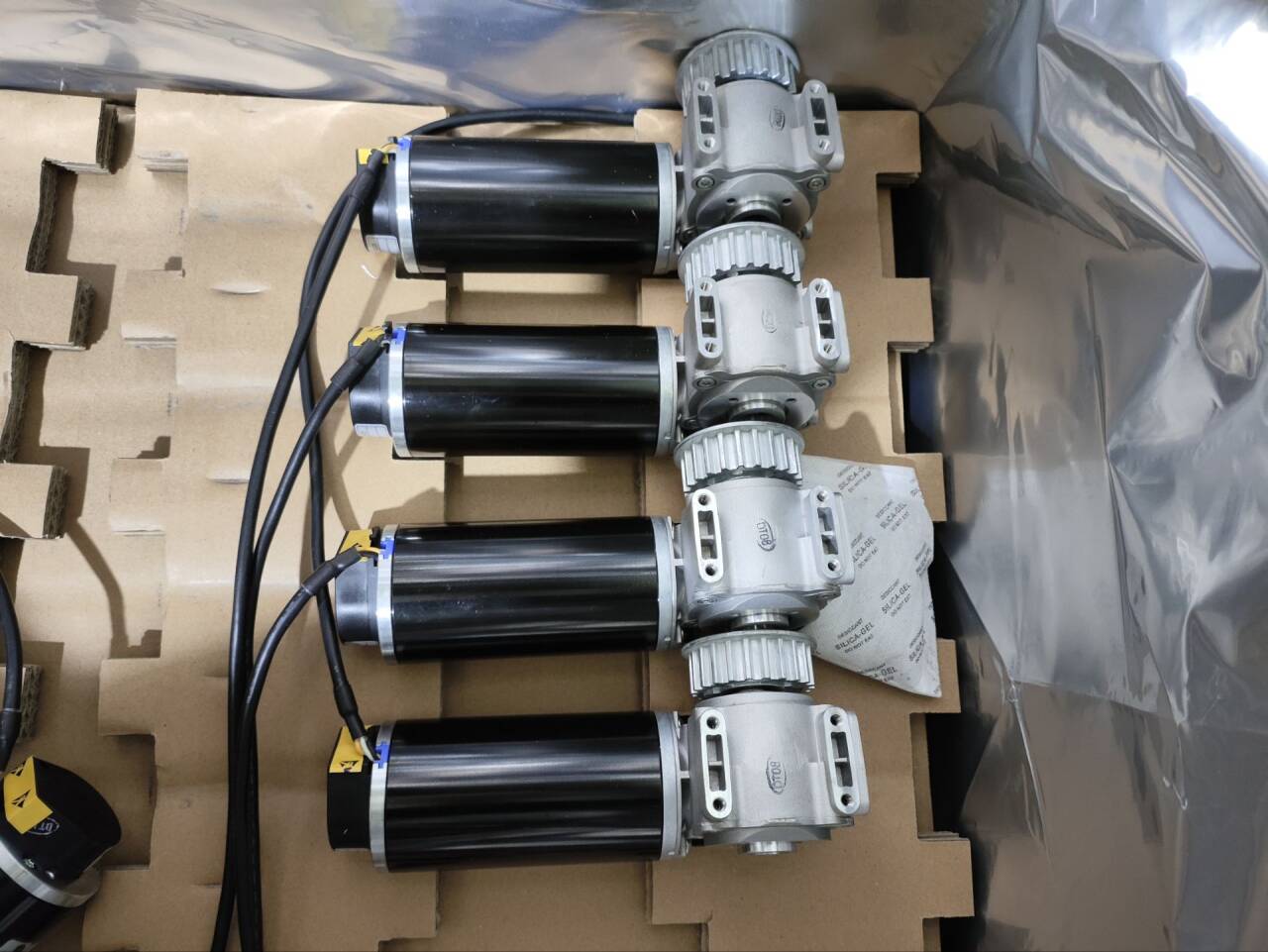

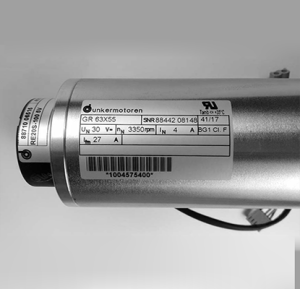

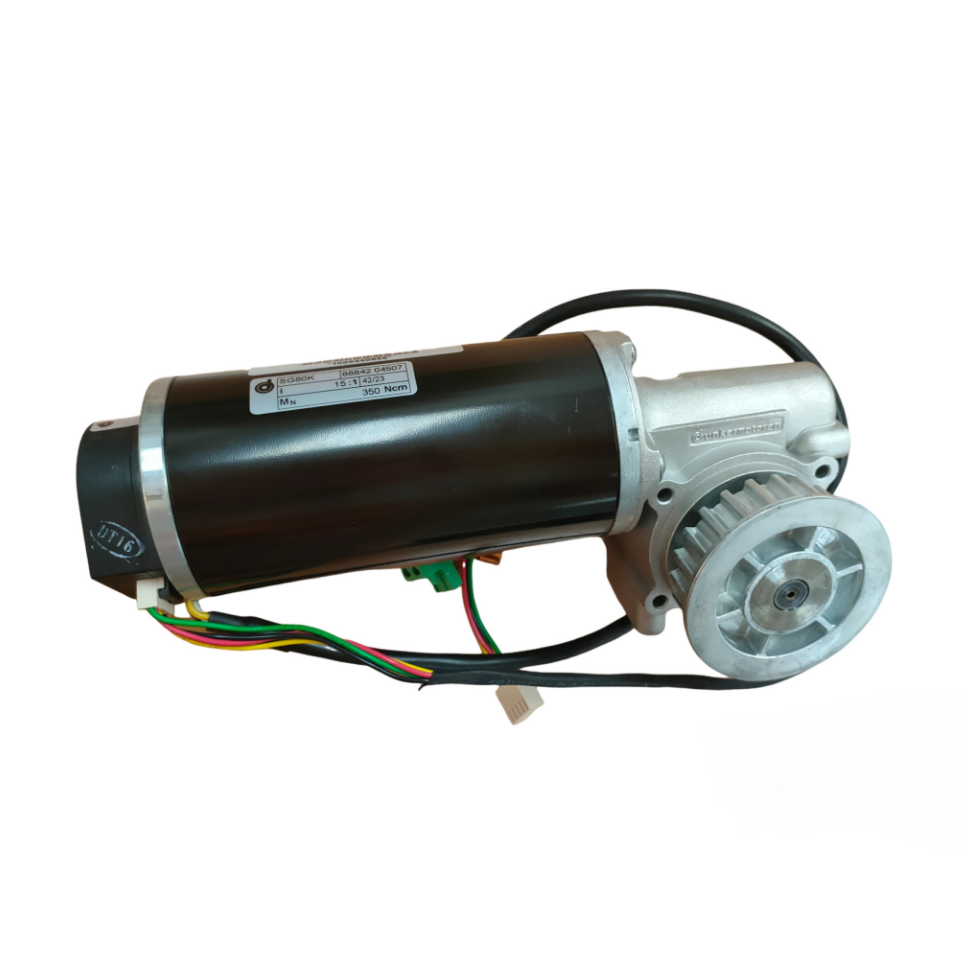

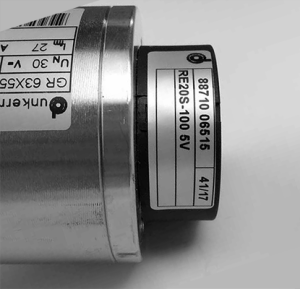

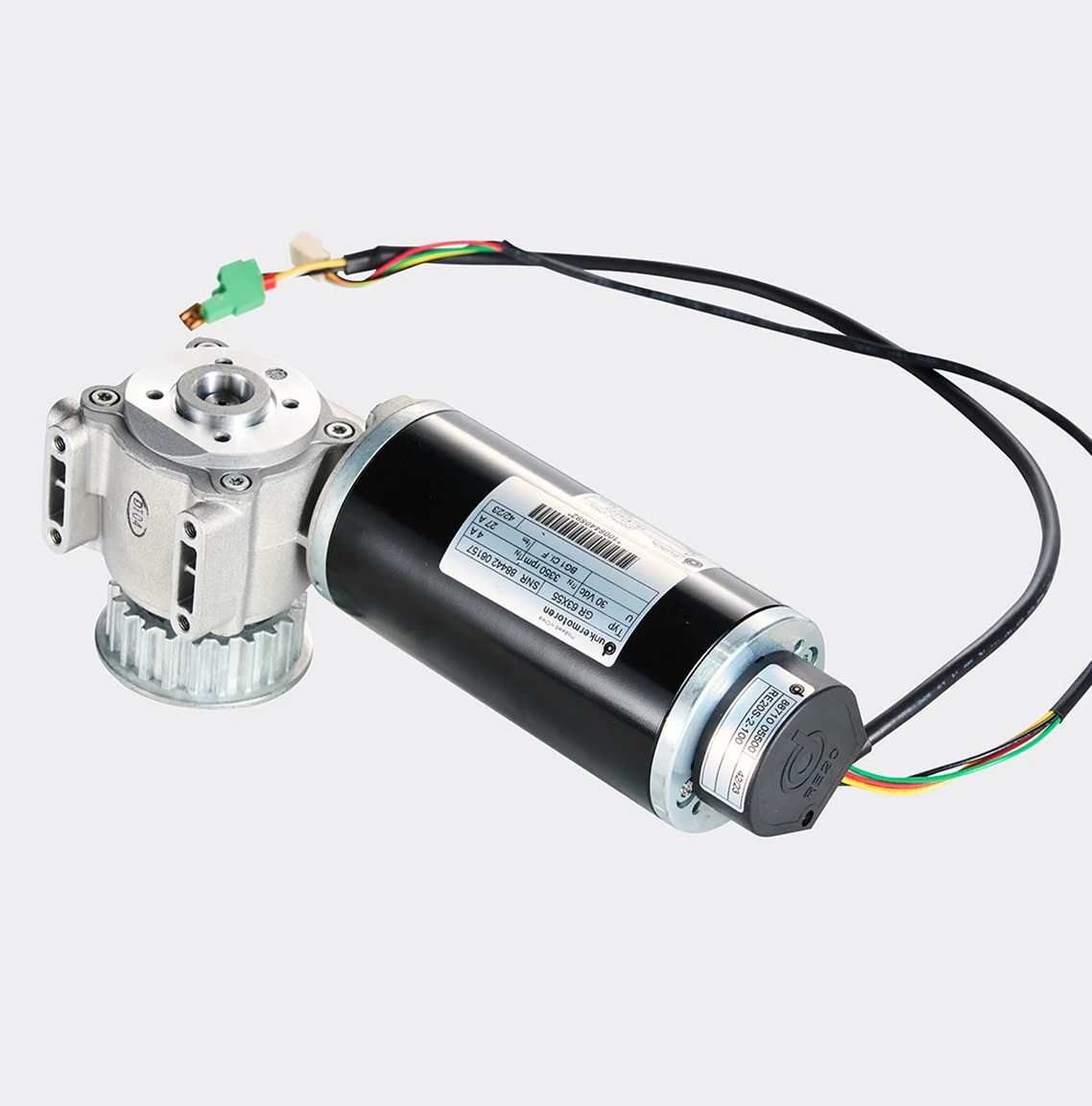

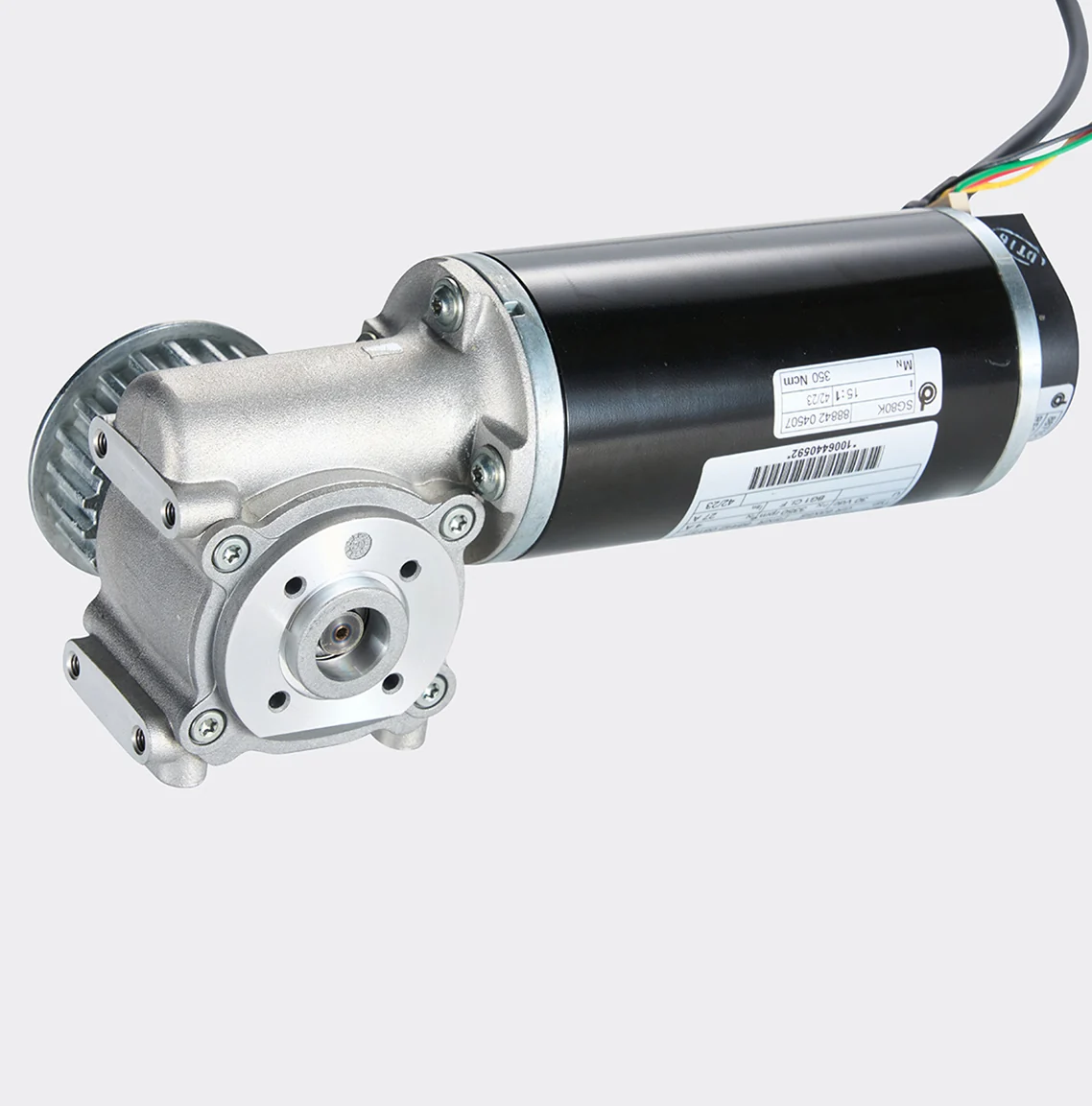

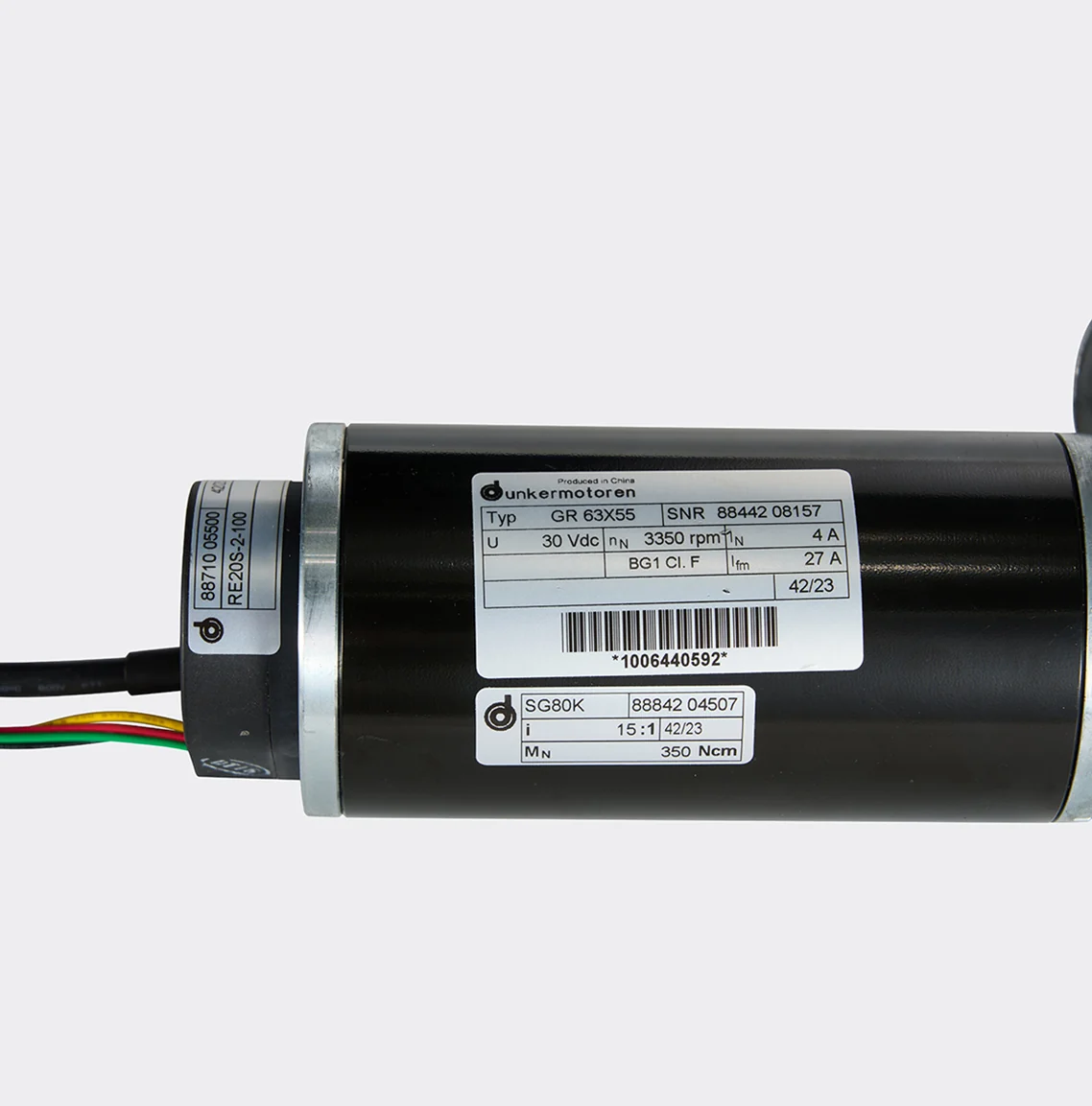

Module combination: Motor GR 63×55 30V, Worm Gearbox SG80, Encoder RE20

• Operation in both directions of rotation
• Ball bearing at motor output shaft is standard
• Optionally with deviant shaft length and diameter, shaft on both sides, special and high voltage winding, higher protection class up to IP 65
• Nominal voltage: 30 V
• Nominal power: 100 W
• Nominal speed: 3350 rpm
• N.W.: 1.7 kgs (Motor only, plus gearbox & encoder and driving wheel total N.W. 2.5 kgs)
