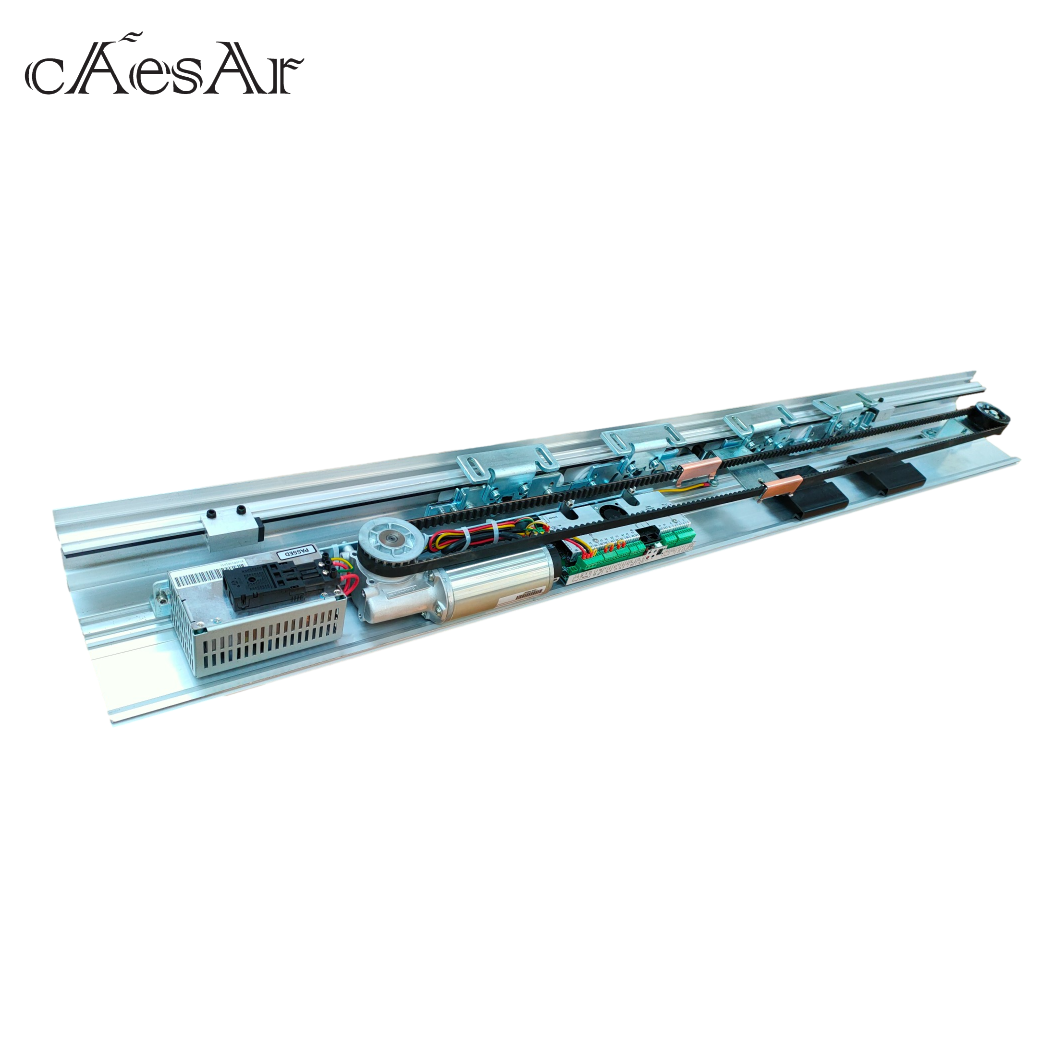

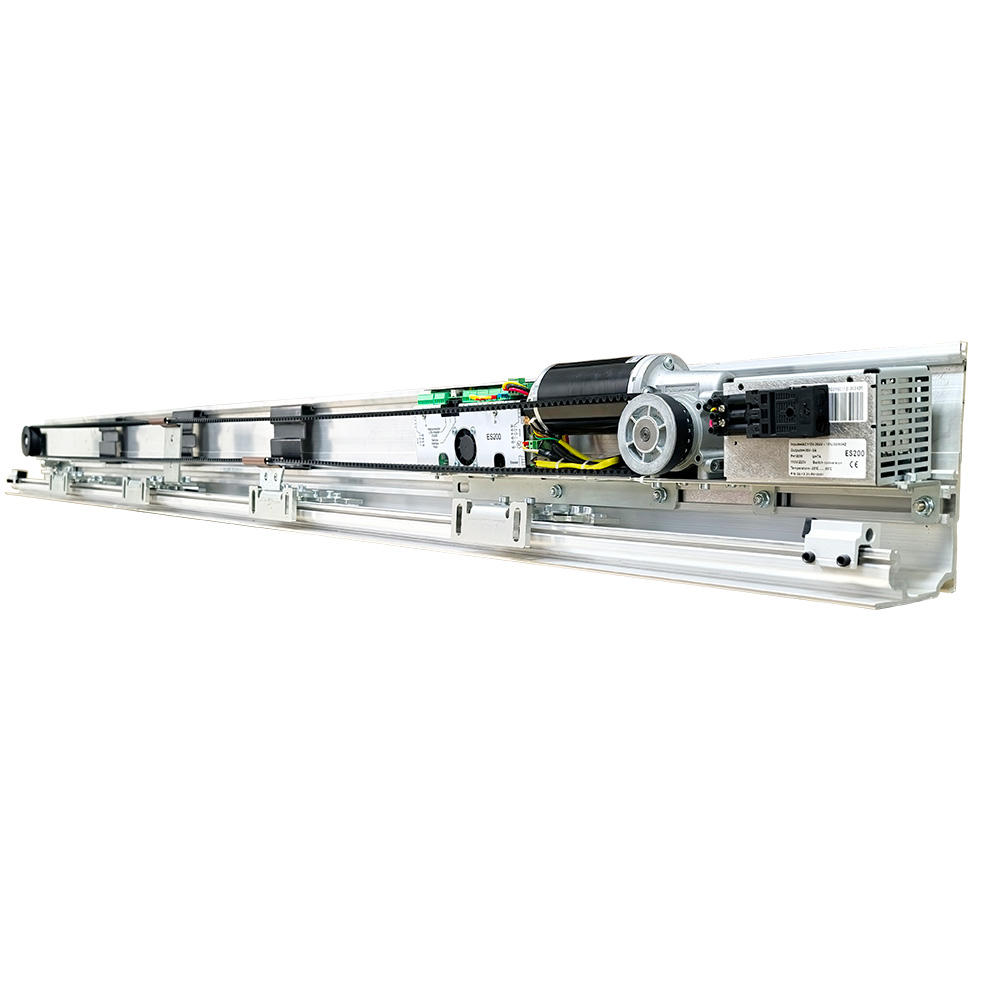

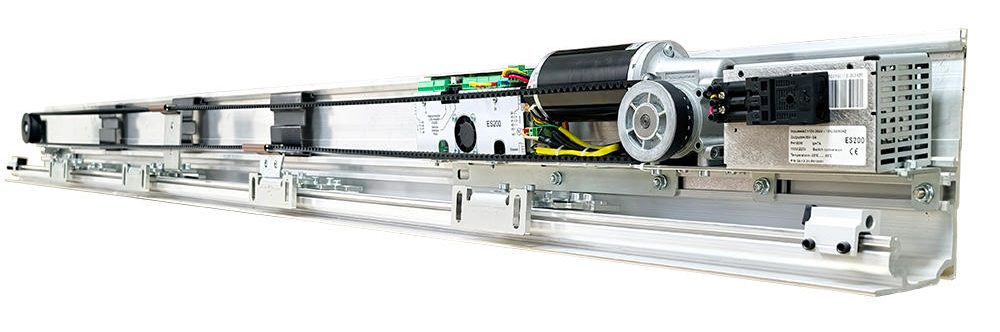

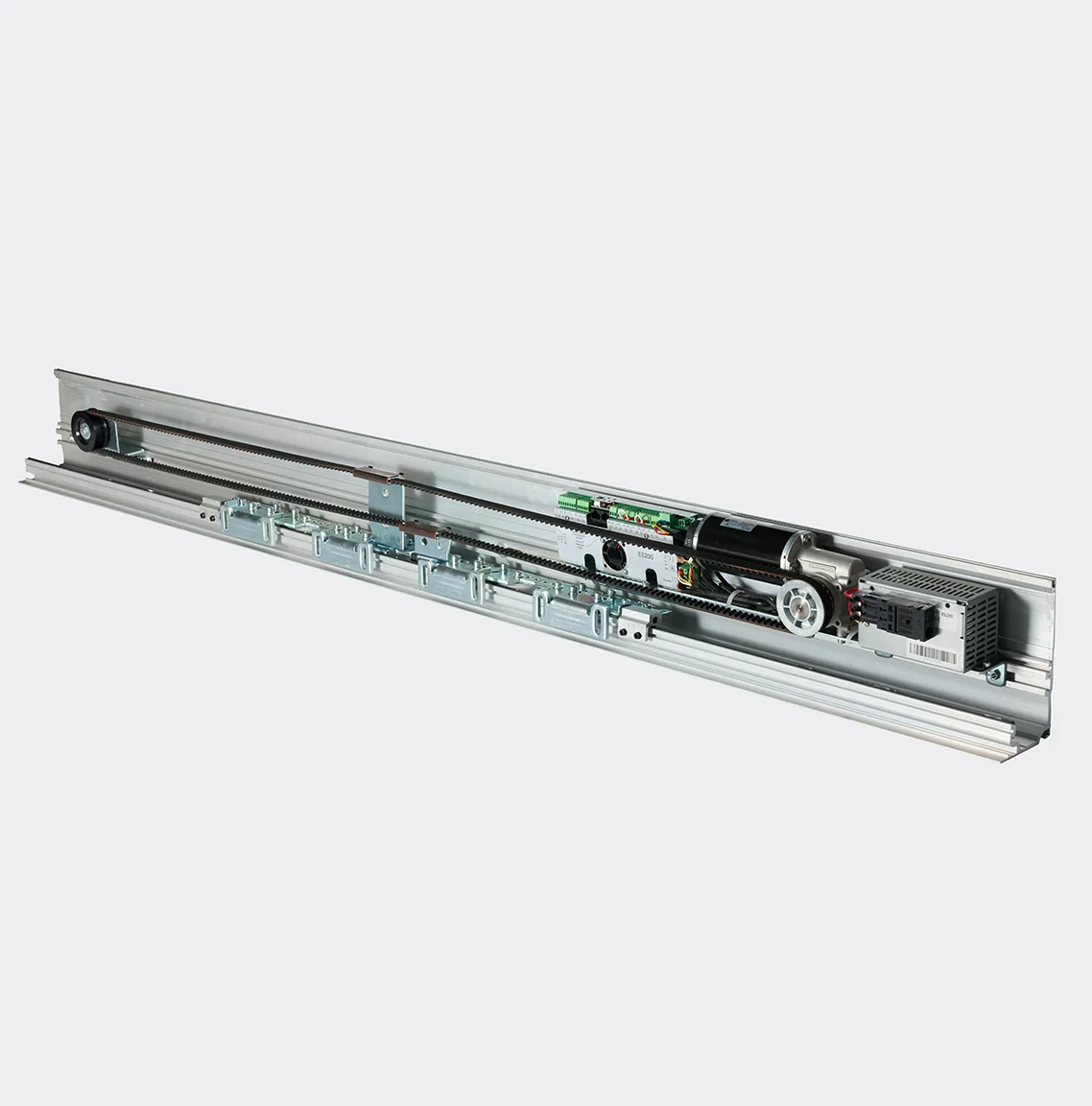

Automatic Sliding Door Mechanism ES200

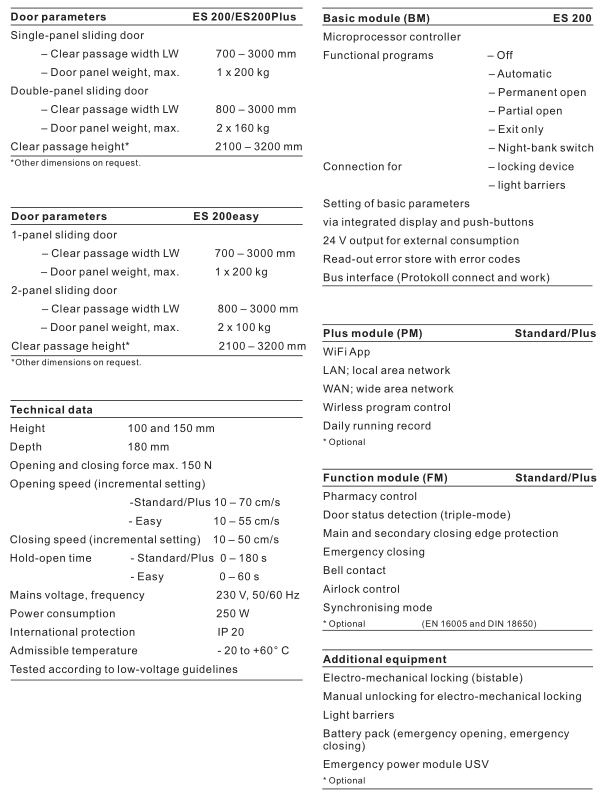

  • Dunkermotoren GR 63×55 30V motor
  • Max. door weight:1*200kg,2*160kg
  • Passage width:700-3000mm
  • Passage height:2100-3200mm
  • Track length:Standard 4.15m,Custom 2-6m


Caesar ES200 automatic door operator, derived from German technology, in line with EN10065:2012 European safety standards, CE, RoHS and FCC international certification, using international famous brand Germany Dunker motor, powerful, safe and reliable, excellent quality, hot sale to More than 100 countries around the world.
 The ES200 is an elegant and fuctional unit that has been designed to meet the requirements of every automatic door application.

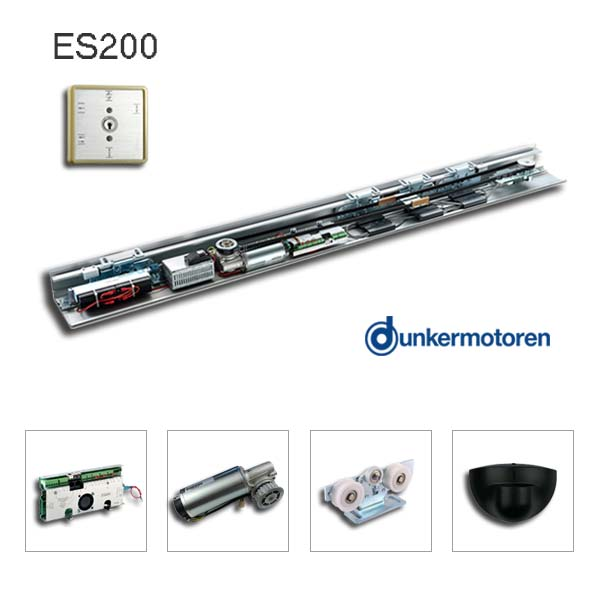

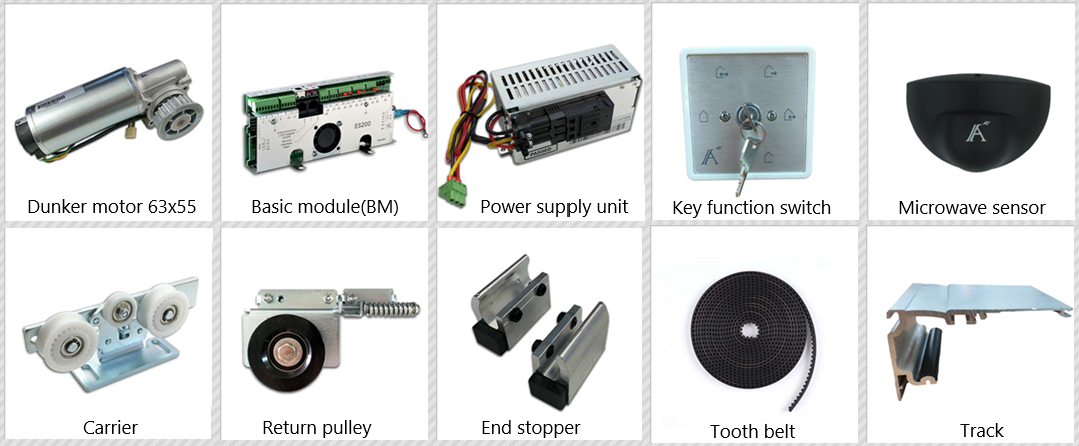

ES200 standard package includes:

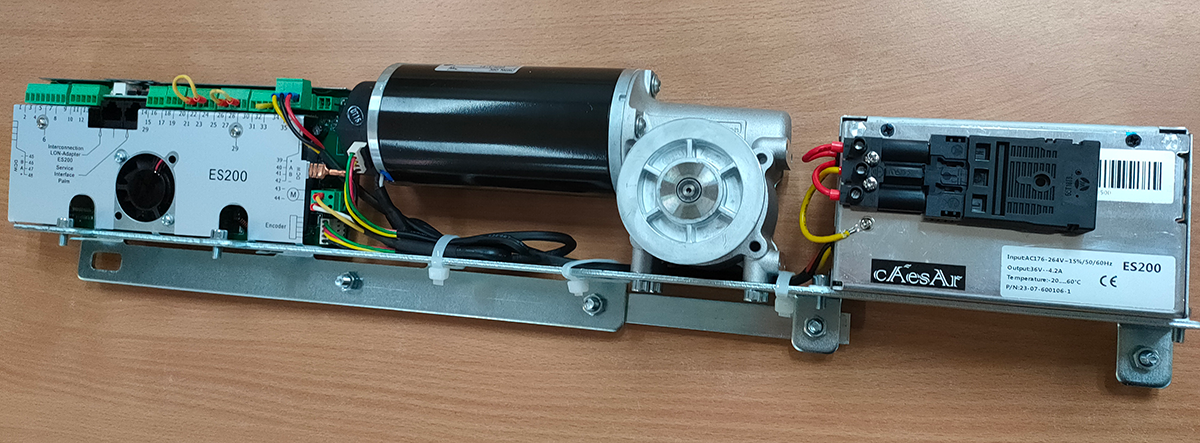

1.Motor(Dunker GR 63×55) ×1       2.Control board ×1              3.Power supply ×1                4.Key switch ×1

5.Radar sensor ×2                                6.Carrier ×4                         7.Return pulley  ×1               8.End stop ×2

9.Belt connection ×1                          10.Driving belt 6m×1          11.Track  2.075m ×2

Application:Framed/Frameless door

Products Advantages:

  1. Powerful motor. Original Germany brand Dunkermotoren motor.Same motor supplier as dorma.
  2. Long service life. Tested for more than 5 years.
  3. Safety. No any sensitive safety equipment although, When meet a balloon, door panels will reverse softly.
  4. Silent. The track rail is coved by a pad which can reduce noise and protect wheels.
  5. Mobile phone wifi app control. (Optional)
  6. Meet European safety standard EN16005 and DIN18650. (Optional)


Additional information

Weight 31 kg
