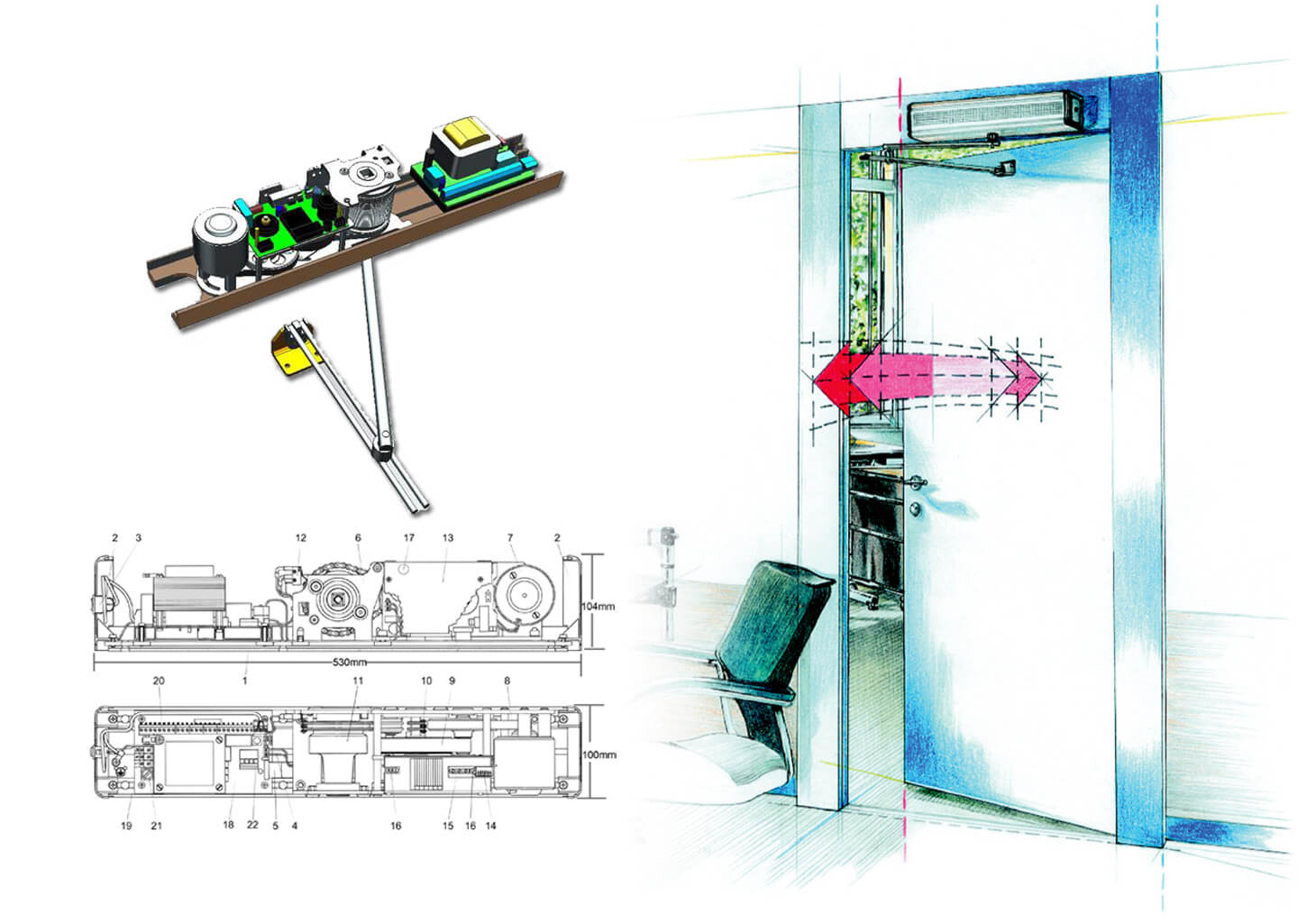

ED100/250 automatic swing door system with inward opening arm

Main Specifications

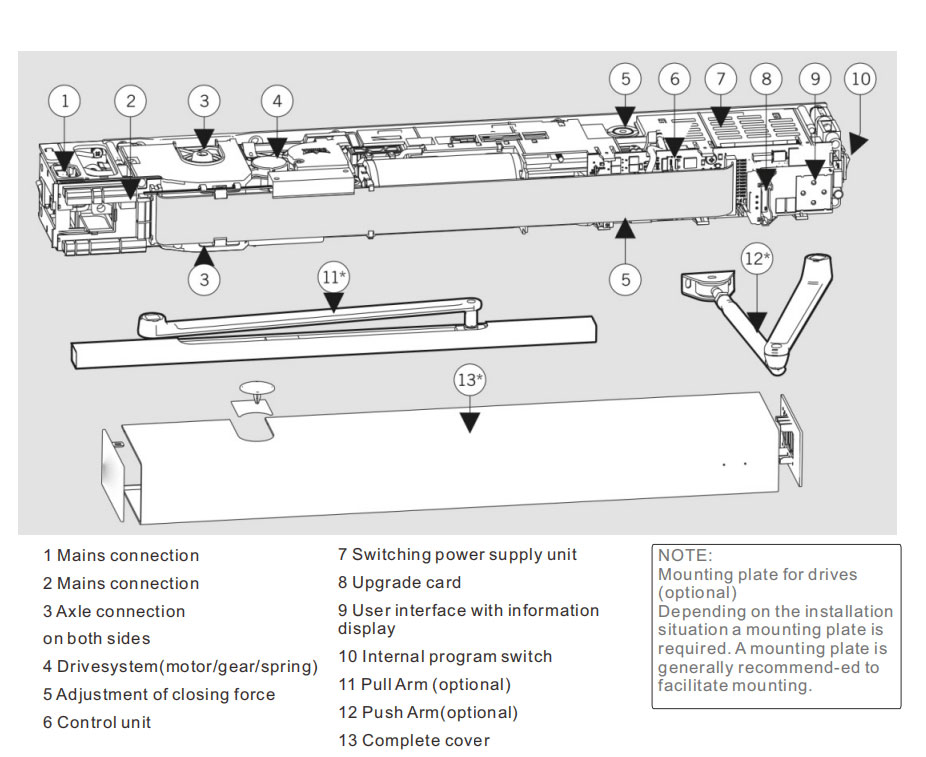

• Product Name: ED100 / ED250 Door Operator (Dunkermotoren GR 63×55 Drive Unit), compatible with Dorma ED100 and ED250‑series automatic swing door operators.

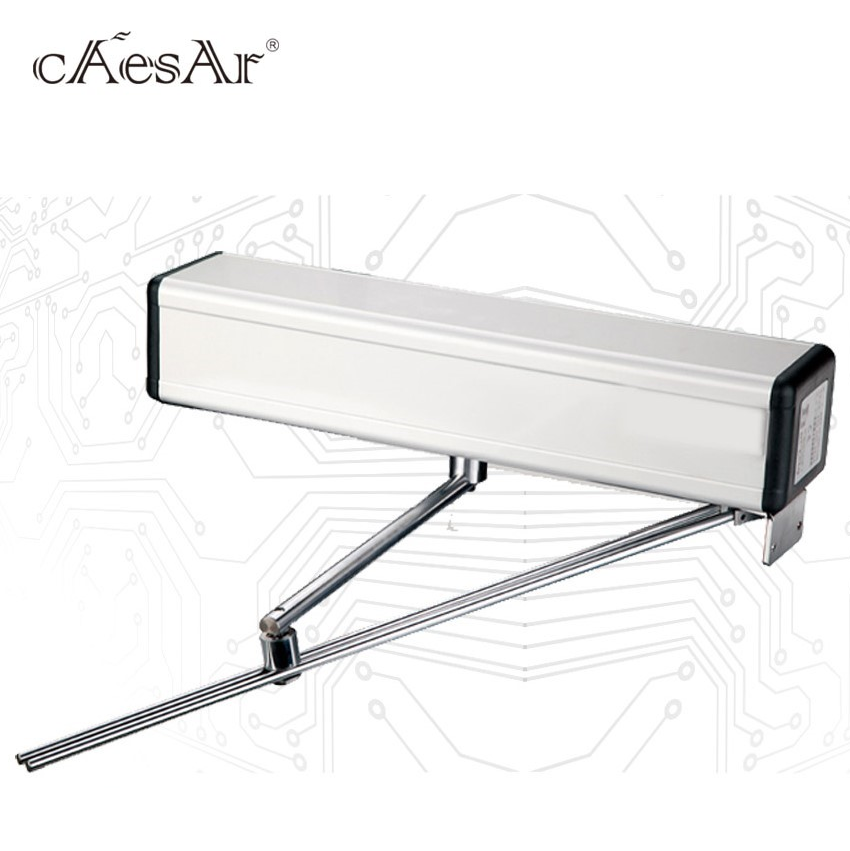

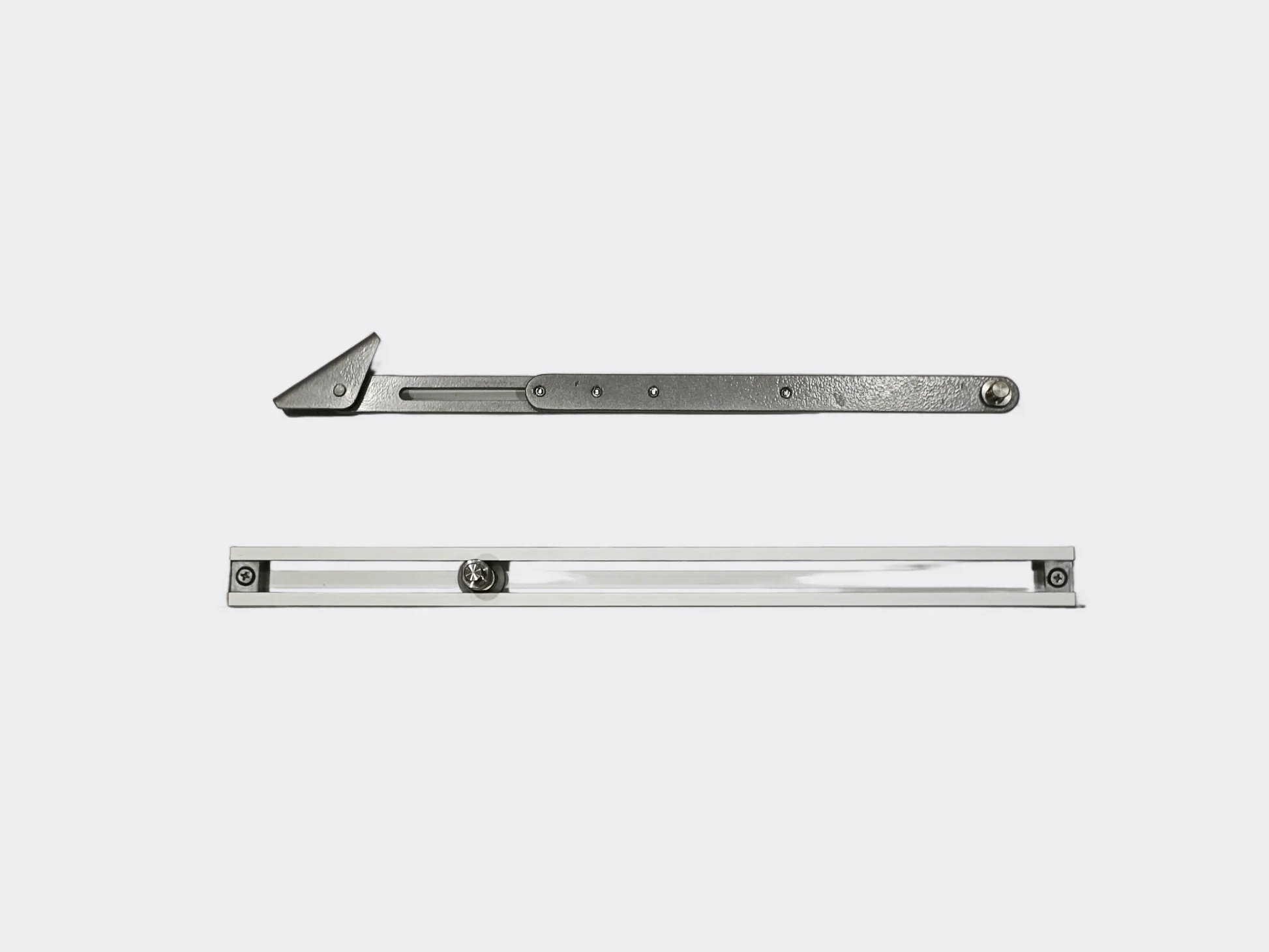

• Operator Type: Electromechanical surface‑mounted swing operator; two versions available for selection: push‑type (standard scissor arm) and pull‑type (slide‑track channel).
• Cycle Testing: Operator platform tested up to 1,000,000 cycles.

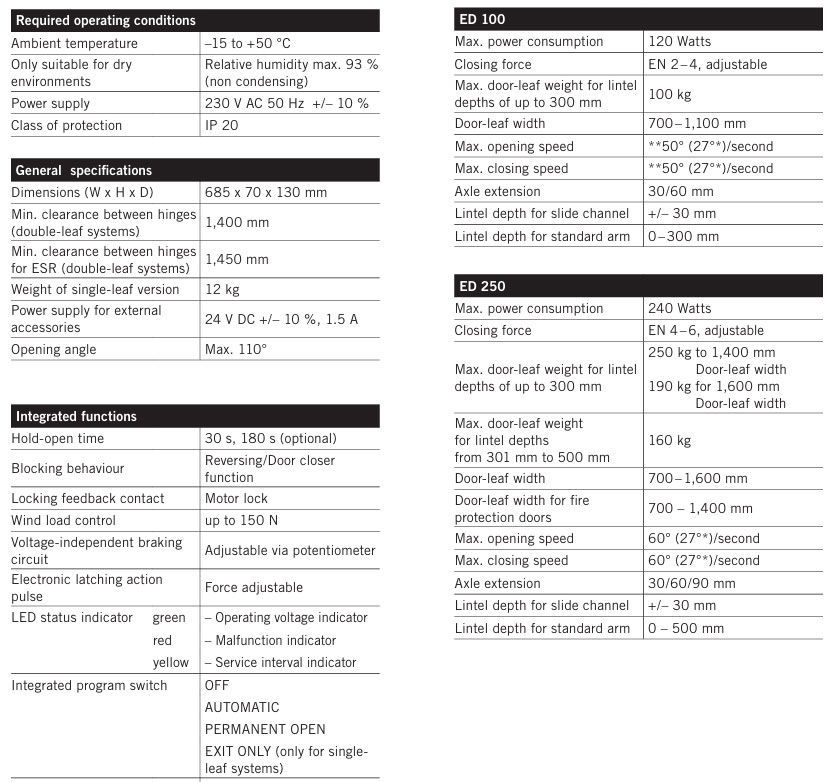

• ED100: Max. door weight 100 kg under standard specifications, door width 1100 mm.

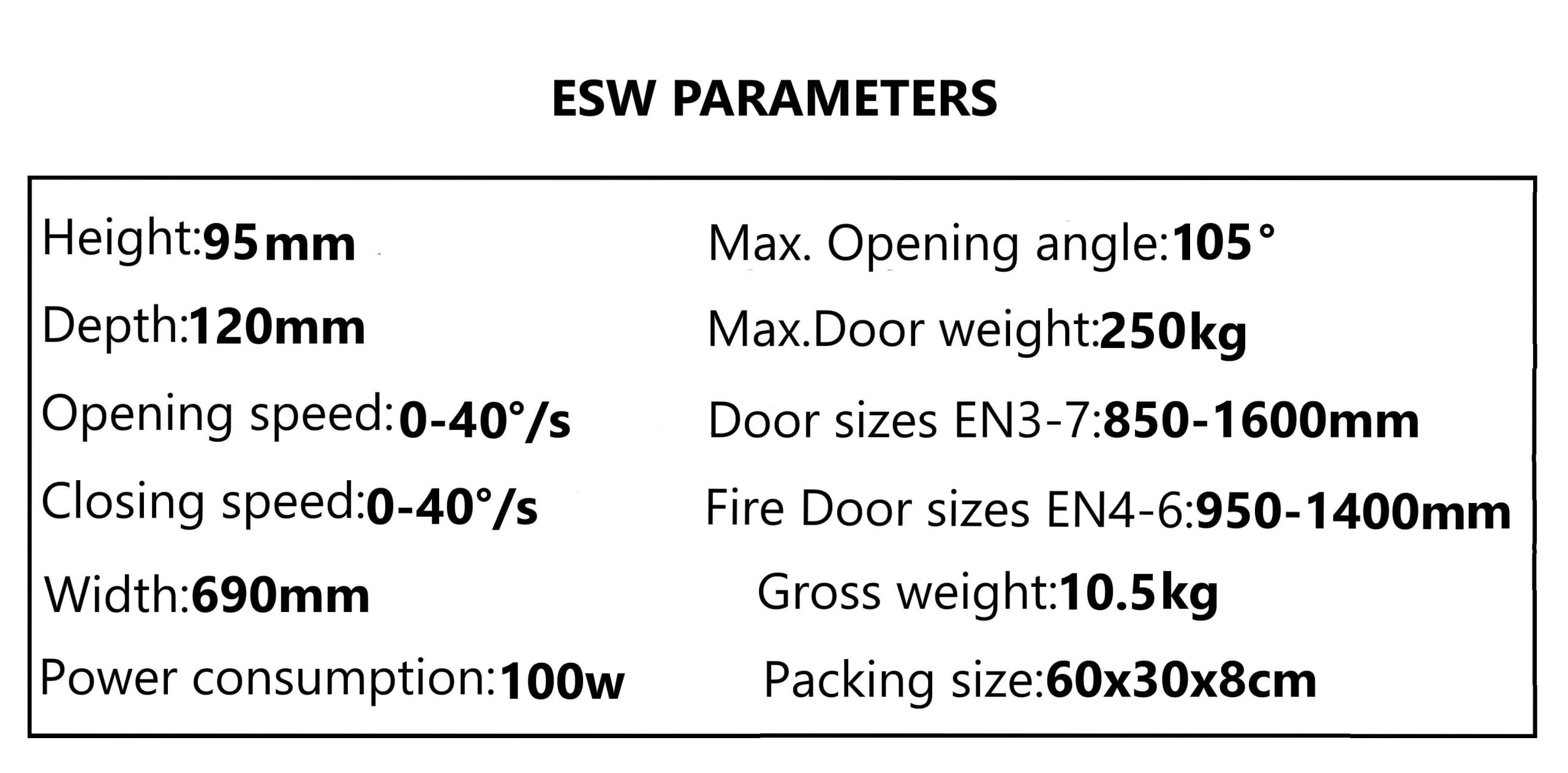

• ED250: Max. door weight 250 kg, max. door width 1600 mm; subject to regional requirements, arm type and installation configuration.
• Wind‑load Control: Maintains constant drive speed under wind pressure or stack‑effect pressure; ideal for exterior doors and pressure‑differential zones.

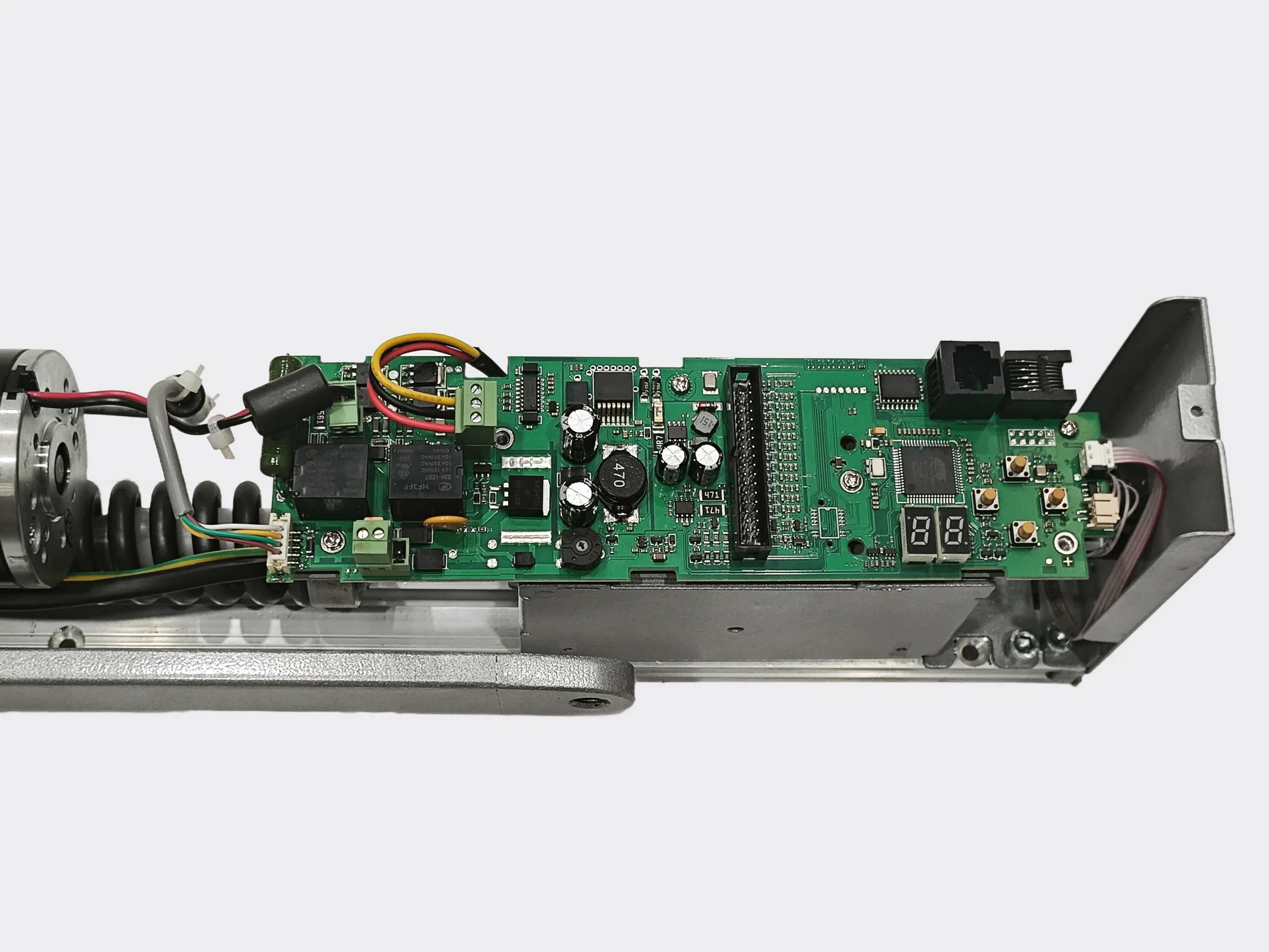

• Operating Modes (Controller / Switch): Off, Automatic, Permanent Open, Partial / Half‑Open, Exit‑Only. Additional “Night / Assist” and power‑assist options are available depending on configuration.
• Safety & Standards: Designed for installations complying with EN 16005 and relevant local requirements, to be fitted with compliant sensors / safety edges. Check suitability for fire‑rated and smoke‑resistant doors for regional variants.
• Slim Body: Slender header height in common 100 mm / 150 mm profiles; typical installation depth ≈ 180 mm.

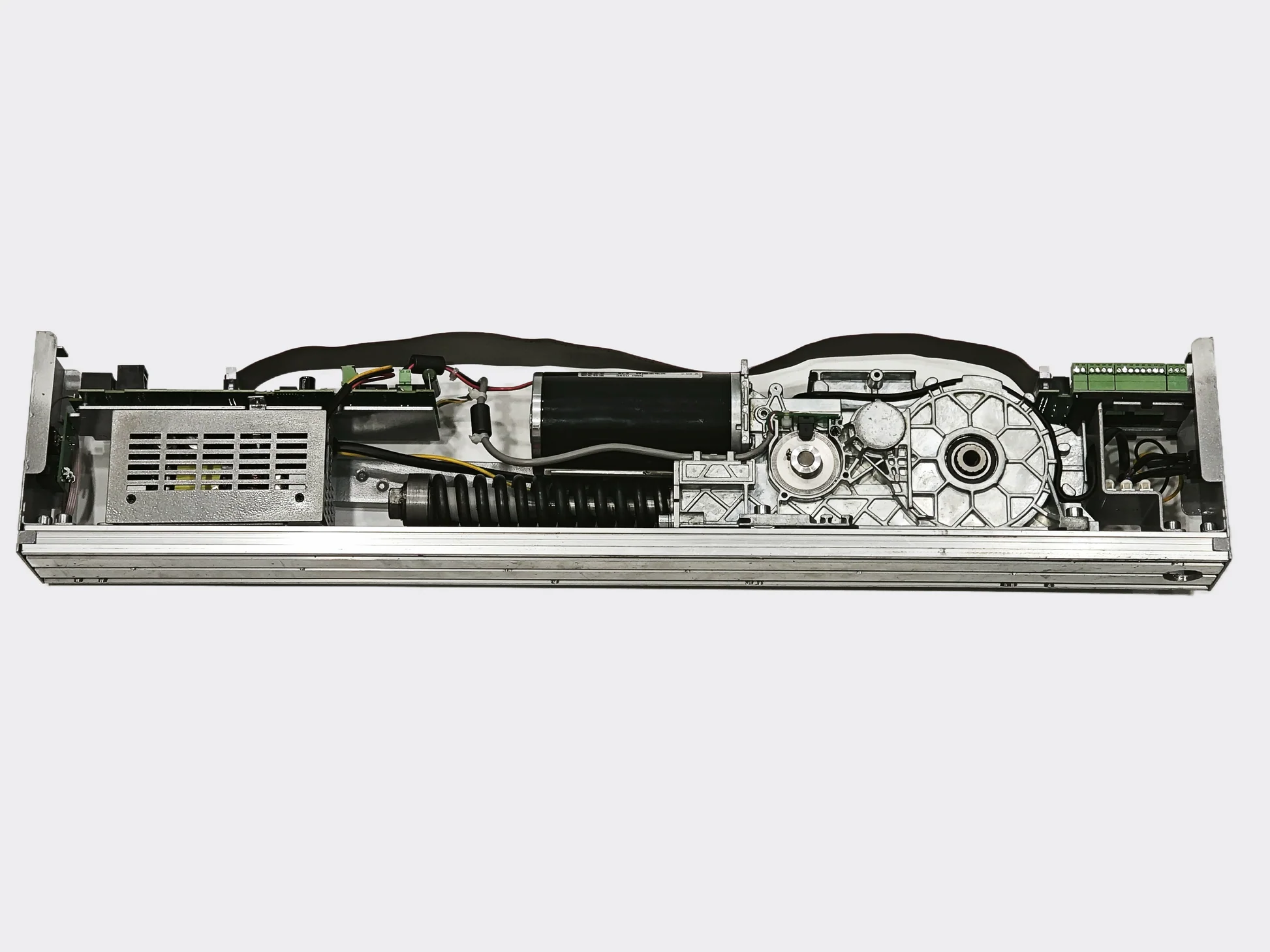

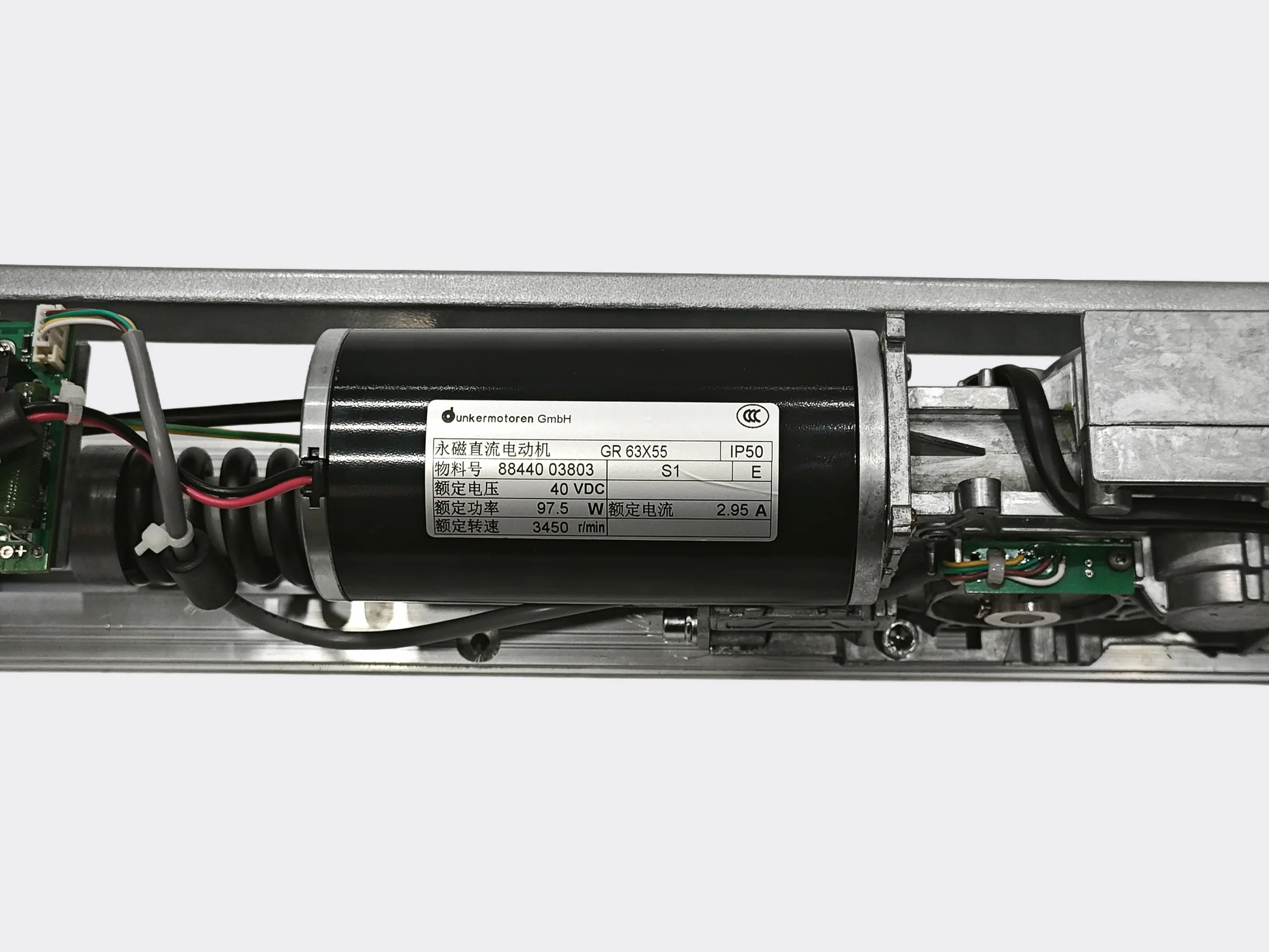

• Drive Unit: Dunkermotoren GR 63×55 brushed DC motor, delivering outstanding performance in door automation with high power density and smooth torque characteristics.
• Power Supply / Electrical: 230 V AC, 50/60 Hz via universal power supply; low‑energy and full‑power commissioning options available based on project scope.
• Emergency Operation: Optional rechargeable battery pack for safe door switching during power outages to support evacuation.
