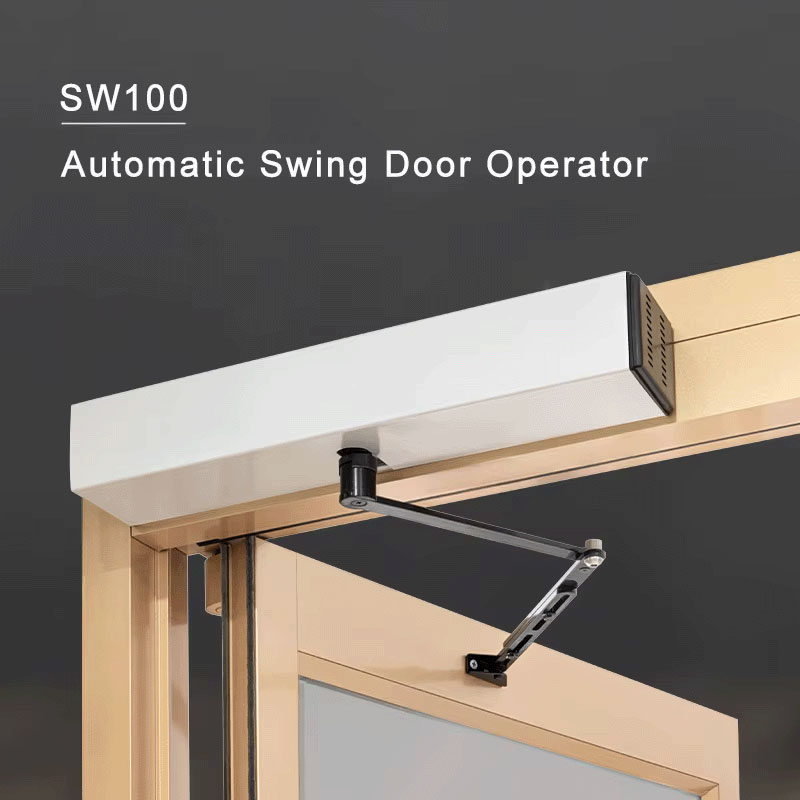

ESW-100 automatic swing door opener with outward opening arm

Name: ESW-100 automatic swing door opener with outward opening arm
SKU: ESW-100
Price: 167.00 USD
Availability: InStock

Original price was: $230.00.Current price is: $167.00.

SKU: ESW-100 Categories: Automatic Door Operator, Sliding & Swing Door Machine, Swing Door Operators

Description

Product Advantage

1. The ESW-100 drive unit operates with low noise, reliable performance and safe use, providing more convenience for living and working environments.

2. The ESW-100 is a new upgraded transformer-less drive that offers a wider range of supply power voltages.
3. Provides interfaces such as sensors, access control, and security sensor protection, and is equipped with interfaces for magnetic electric lock and backup battery too. UPS power can be configured to meet security requirements.

4. Both them can realize Interlocking function between door and door.

5. If touch obstacles or personnel in operation, the door will open in the opposite direction.

6. Applicable to office buildings, storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories,hospitals and other places.

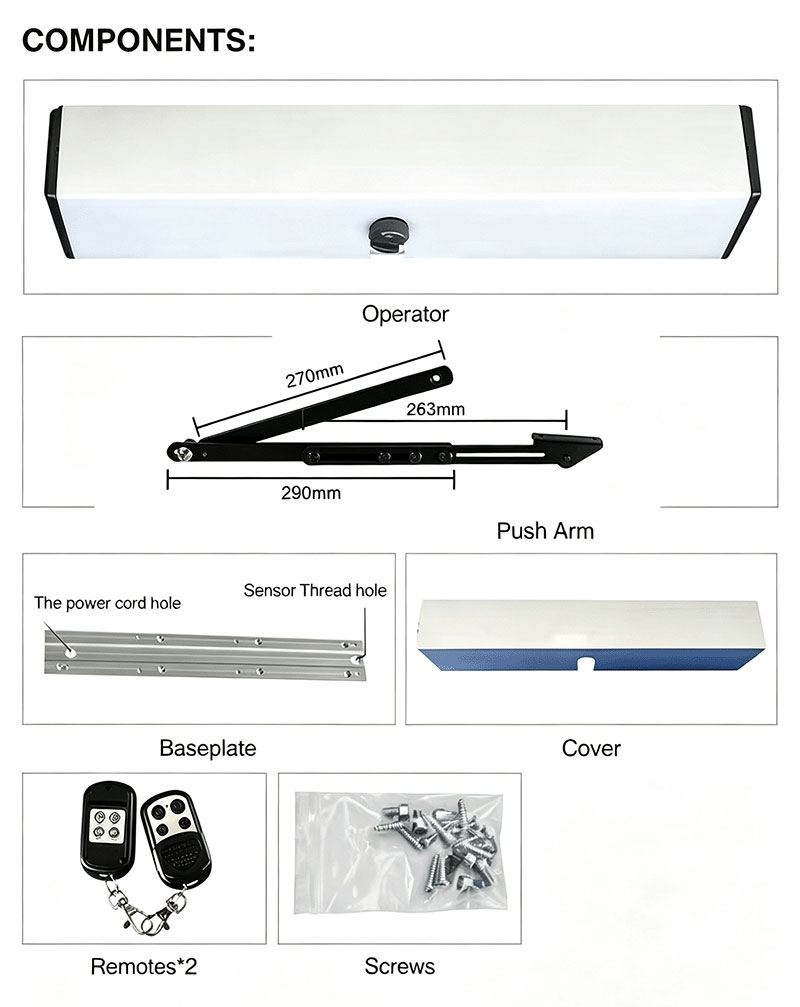

Complete ESW100 automatic swing door operator includes:

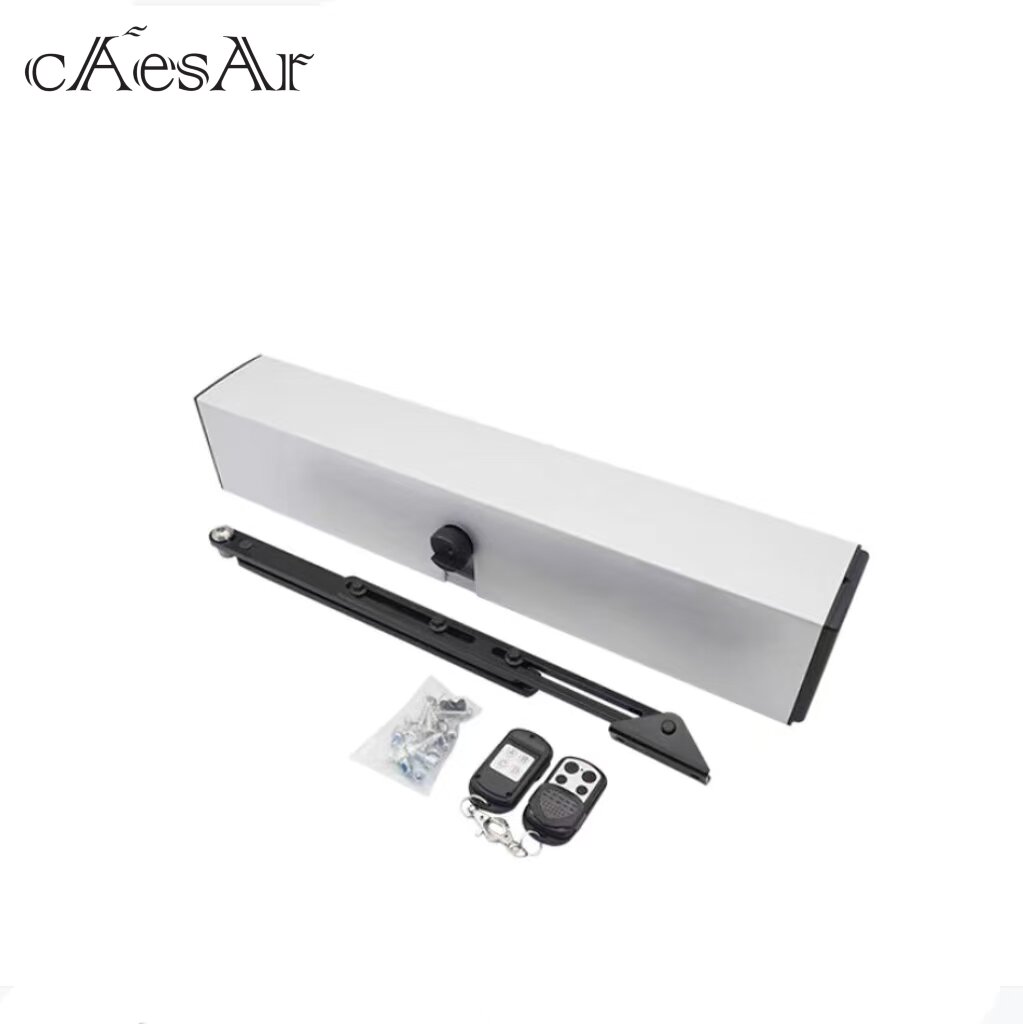

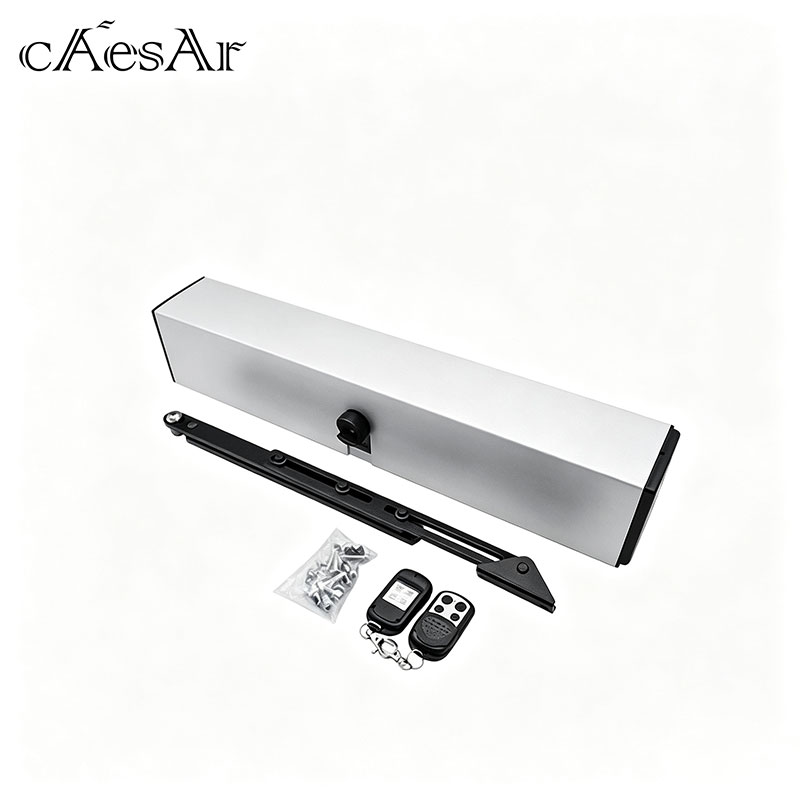

1.ESW100 swing door operator with cover. 2.Outward opening arm. 3.Remote control x2 4.Microwave sensor black x2

Technical Data
product name: Automatic Swing Door Opener
Door form: single door
Carrying weight: ≤1×100kg
Applicable door width: ≤1200mm
Power supply voltage: AC 220V ± 10%, 50/60Hz
Power consumption: 50W
Door opening speed: 250-450mm/S (adjustable)
Closing speed: 250-450mm/S (adjustable)
Opening time: 3-7S (adjustable)
Door opening time: 1-30S (adjustable)
Manual opening and closing force: <30N
Running noise: ≤55Db
