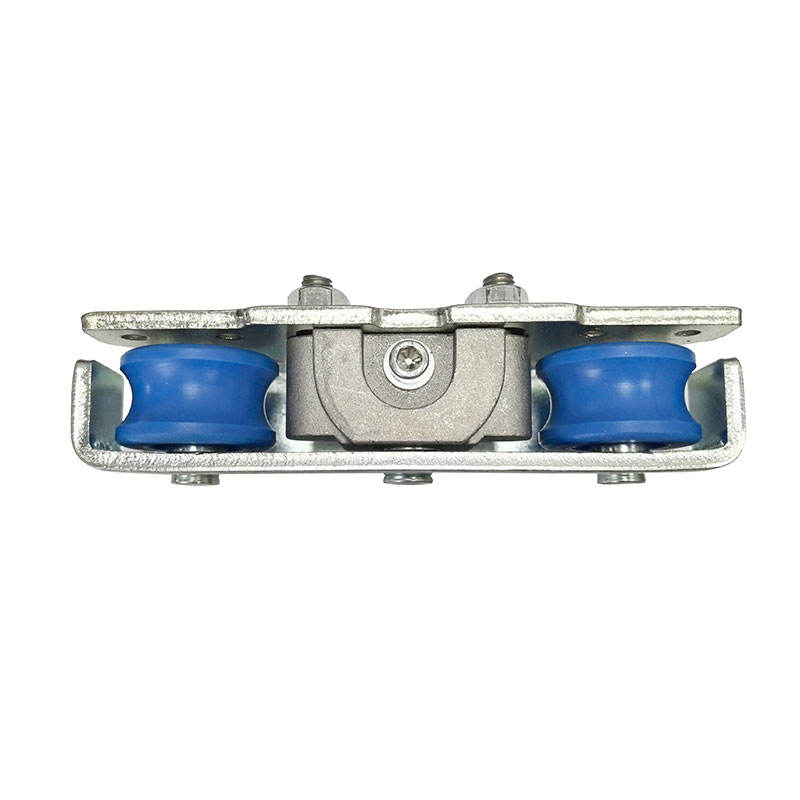

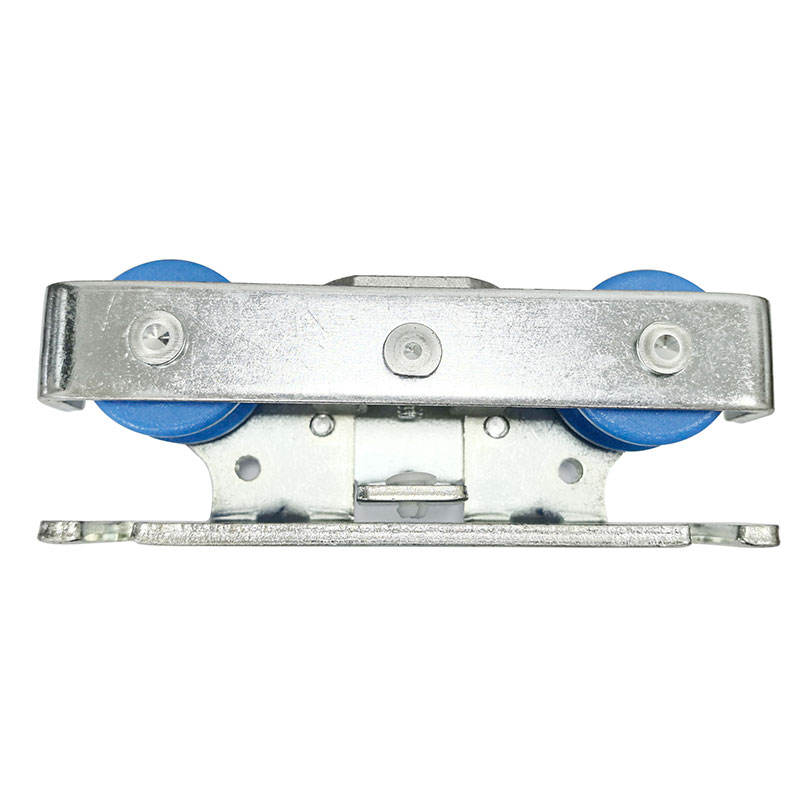

Carrier for EL100 Automatic Door Hanger with Polyester Pulley

Description

The CAESAR EL100 carriages, hang wheels, sliding door trolleys or door connections, are precision-engineered components fixed on door panels or door wings as connections to the track rail profile. For frameless sliding glass doors or french doors, a glass clamp is required to joint the glass panel and trolleys.

Typically, there are 4 pieces of carriage in a standard pack of  EL100, each moving wing of the door needs 2 pcs.

• Bi-parting sliding doors or double sliding doors – 4 pcs (left x 2pcs, right x 2pcs)
• Single sliding doors – 2 pcs (left x 1pc, right x 1pc)

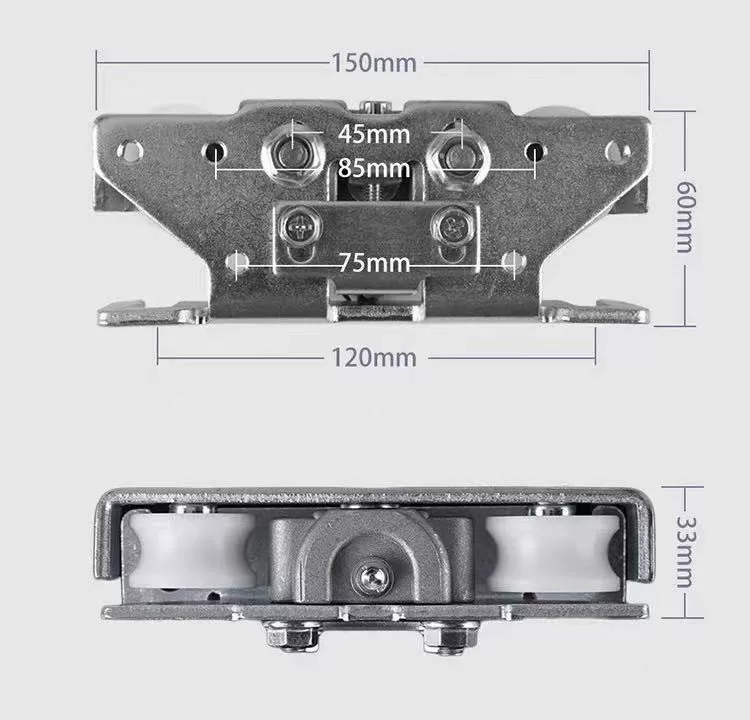

Technical Specifications

• Model / Part Name: CAESAR EL100 Carriage Wheel Assembly .
• System Compatibility: Designed for the CAESAR EL100 operator family; Competable with Panasonic 120 operator.

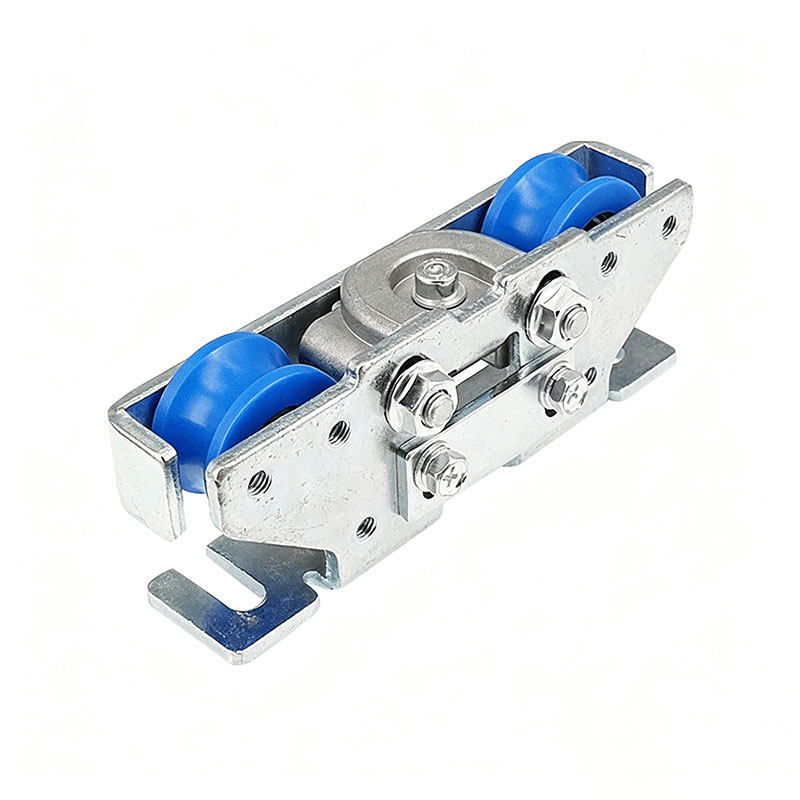

• Function: Precision trolley that links each sliding door leaf to the track rail. Functioning as high-performance  track wheels, the assembly uses two load-bearing  rollers plus a smaller anti-riser (anti-jump) guide wheel and provides height/level adjustment via an eccentric wheel.
• Quantity per Door: Two carriers per moving leaf (left + right). A bi-parting entrance uses four carriers total.
