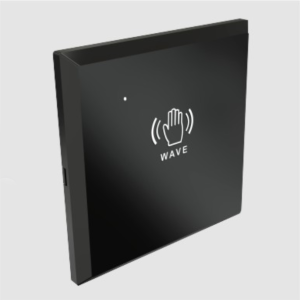

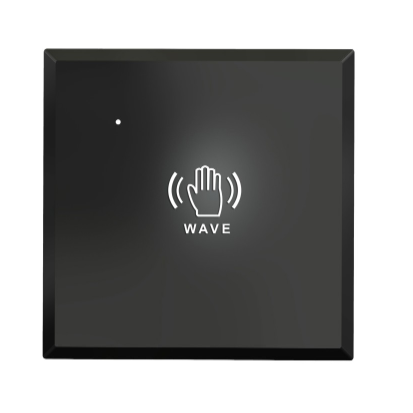

SPACER INDUCTION SWITCH

Description

Product application

Can be used in all non-contact control entrance and exit induction control, easy operation, to eliminate the hand contact pollution.

Overall characteristics

The capacitive imported induction chip is used to detect the charge movement brought by the human palm and judge the induction movement of the human hand to realize the key function. Instead of the traditional mechanical contact switch, with the hand front non-contact induction, clean and hygienic. Strong anti-interference ability, effectively improve the ordinary infrared hand sensing by strong light interference and other infrared products interference problems. The induction distance is 0 to 7 cm and adjustable. Standard type 86 switch panel design, convenient for installation on various occasions. The panel adopts radium carving technology, with backlight display, novel style, fashion. Relay dry contact output, easy connection to various gating devices.

Technical parameter

Input power: AC/DC 12-24V

Action current: 29 mA (when DC12V is in power supply)

Standby current: 210 μ A (DC12V when supplied)

Relay output: Often open / often closed

Relay contact capacity: 1A24VDC

Sensing distance: 0-7cm

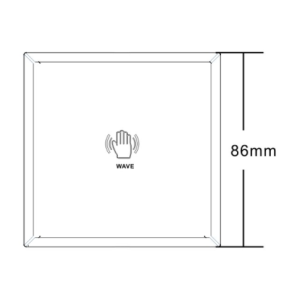

Appearance size: 86×86 mm
