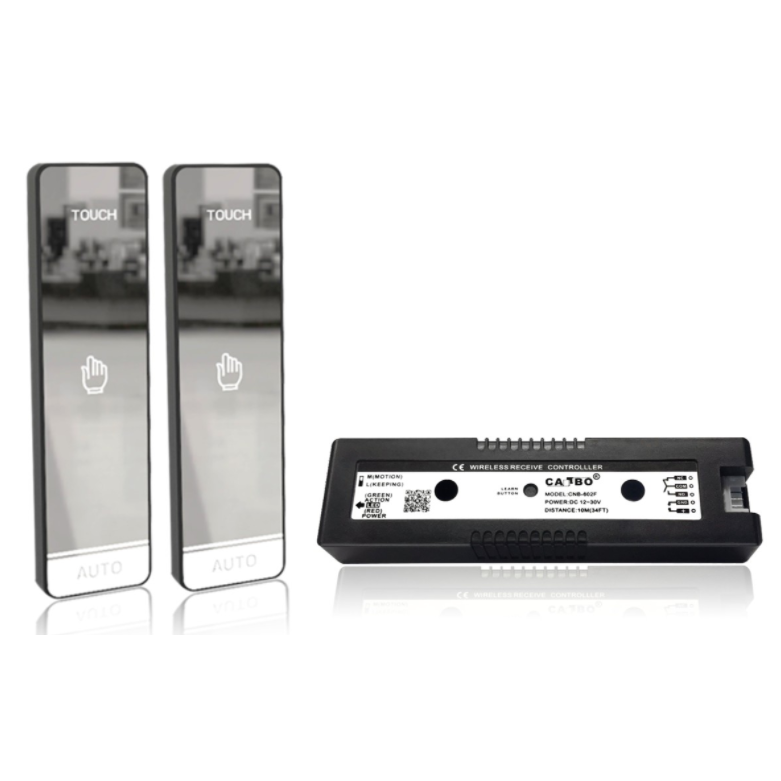

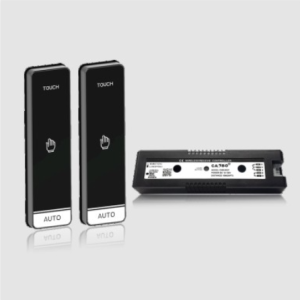

WIRELESS HANDHELD TOUCH SWITCH 602

Description

Product application

Widely used in automatic door and entrance channel for open use.

Overall characteristics

Using 2.4G wireless sending and receiving, low power consumption, strong anti-interference ability. The receiver is equipped with a wide voltage input design, and the 12-30V DC power supply input is effective. When the signal is received, the red light will also turn green, to confirm whether the signal is valid. Design of anti-proof screws. CNB-602P waterproof model, waterproof and dustproof treatment, long service life technical parameter

Technical parameter

Support function: Touch-sensing

Standby current:  35 uA

Working humidity: 90%

Working temperature:  -30℃ -50℃

Emission frequency: 2.4GHZ

Power supply battery: Button battery 3.3V x2

Way to install:  bottom plate fixed, wireless mount

Wireless distance: horizon 30 meters, partition wall 12 meters

Average of 200 touches per day: 12 months available

Product appearance:  134MM (high) X34MM (wide) X11.4MM (thick) switch

Product appearance: 110MM (high) X30MM (wide) X15MM (thick) receiver

Receiver technical parameters

Standby current: 26mA (when DC12V supply)

Power Supply Voltage: DC12-36V

Action current: 95mA (DC12V supplied)

Relay contact capacity: 1A 24VDC
