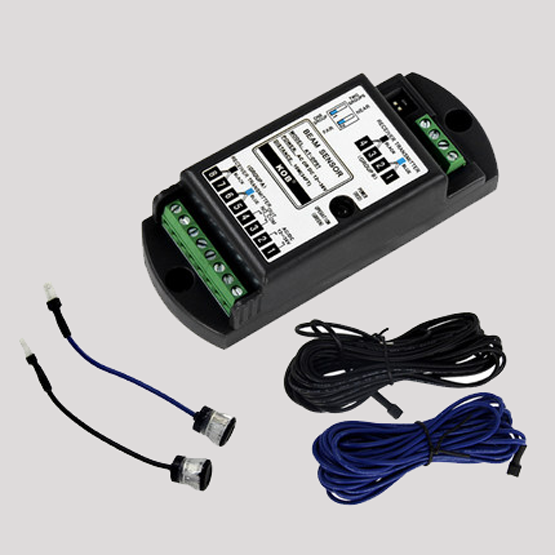

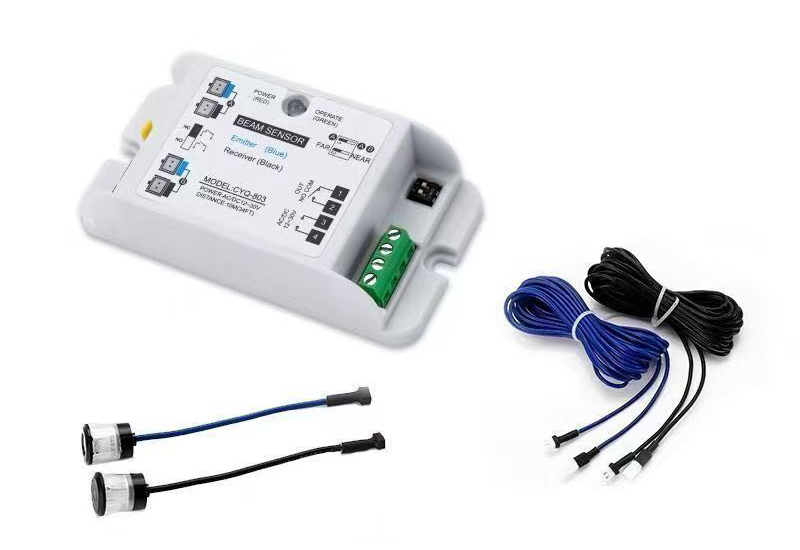

Safety Beam Photocell Sensor (Light Barrier)
$18.00
Working Power: 12-36V AC/DC
Static Current: 35mA (At 12V)
Action Current: 72mA (At 12V)
Max. Transmit Distance: 10m
NO/NC Contact: Selected by NO/NC jumper
Beam Count: Single or double beam
Working Temperature: -42-45℃
Working Humidity: 10-90% relative humidity
Dimension(Controller): 105.5×53.4×28.5mm
Dimension(Magic Eye): 19x13mm (LxD)
Description

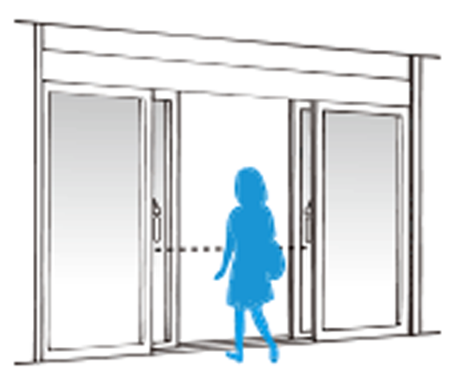

Mounting a safety beam sensor or light barrier is an effective safety solutions for automatic sliding door, electric glass door, automatic aluminium door or automatic frameless glass door systems. Infrared signal emission from an eye on one side of door frame reaches the receiver eye on the other side, it will build a straight light path. As long as the ray path blocked by kids, pets, disables, or any persons standing in the passage, the safety beam sensor or light barrier will immediately detect the obstacle and stop the door from closing, prevent the peopleor objects in between from being clamped.
Working Power: 12-36V AC/DC
Static Current: 35mA (At 12V)
Action Current: 72mA (At 12V)
Max. Transmit Distance: 10m
NO/NC Contact: Selected by NO/NC jumper
Beam Count: Single or double beam
Working Temperature: -42-45℃
Working Humidity: 10-90% relative humidity
Dimension(Controller): 105.5×53.4×28.5mm
Dimension(Magic Eye): 19x13mm (LxD)
