LV801 Image Recognition Sensor

$55.00

View adjustment: 0-90°(expose installation)

0-45°(embedded installation)
External dimension: 86×80×69mm(expose)
130×82×71mm(embedded)
Installation height: ≤6meters
Network distance: 10-30 meters
(dependin on the strength of Wi-Fi on site)

Category:

Description

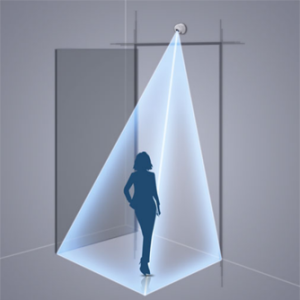

1, Recognizing the human figure in the detecting area, whether in the moving or stationary state, it can also outout signals. This product can be as a motion sensor, also as a presence safety sensor.
2. Adopt advanced Convolutional Neural Network, to detect and recognize the human figure, can avoid interference from strong light, vibration, flying insects,floating leaves,etc.
3, It supports inserting an SD card and expanding the memory to 128G torealize all-day video monitoring; and it is convenient for users to upgrade the system without changing the hardware.
4, Equipped with the global Al+LOTInternet of Things platform–“TUYA”, the detecting area size can be set through the APP, and remote monitoring and
remote opening of the door can be realized by mobile phones. 5, Built-in microphone, real-time simultaneous monitoring.
6,Four working mode can be switched freely,which is convenient to adapt to various use occasions.

Technical parameter Detection function:Main processor:
INGENIC T31N
human figure motion,presence,remote control Main frequency:
1.5GHz
opening,monitoring,period function switching Relay ON, CN optional Detection mode:Signal output:
Moving + human figure detection
AC/DC 12-30V Power supply:(Dual mode)Pixel:
Standby comsumption:HD 720P 1296*732
135mA(DC12V power)175mA(DC12V power)Working current:
Response speed:
50ms
TF card in FAT32 format, Installation methods:Monitor storage:
Expose or embedded installation on the door head,wall,and ceiling
maximum 128GB memory

View adjustment: 0-90°(expose installation)

0-45°(embedded installation)
External dimension: 86×80×69mm(expose)
130×82×71mm(embedded)
Installation height: ≤ 6meters
Network distance: 10-30 meters
(dependin on the strength of Wi-Fi on site)
