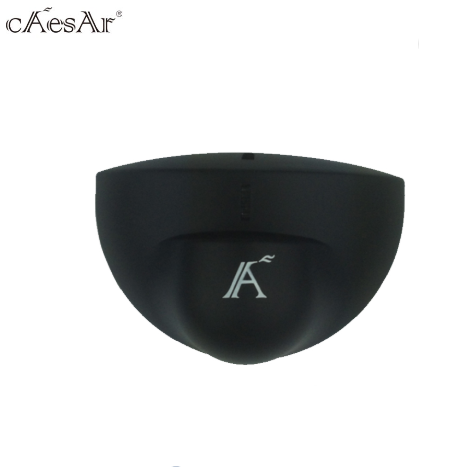

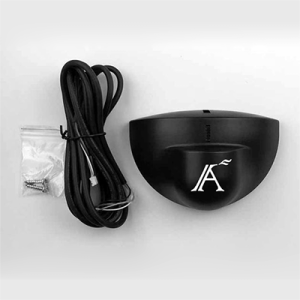

Egale 6 Microwave Radar Sensor




24.125GHz Microwave radar motion detect sensor for automatic doors, electric power doors, automatic sliding doors and glass doors, very stable and reliable door opening sensor, rapid action and anti-interference. European radar module Sensitivity adjustable and detection angle changeable Up to 4m mounting height, max. detection area 3x6m, enhanced mode available. Proven technology product, very cost effective and high performance radar sensor

Transmitter power density: <5 mW / cm2

Transmitter frequency: 24.125 GHz

Dimension: 120 x 80 x 55 mm (W x L x H)

Mounting Height: 2-4m

Working voltage: 12-24v AC/DC(±10%)

Tilt angle: 0°~90° vertical, -30°~+30° lateral

Power consumption: <2W (VA)

Working temperature: -20℃~+55℃

Holding time: 2s

International protection: IP52 N.W. 0.25kg
