ECdrive automatic sliding door operator kit

Description

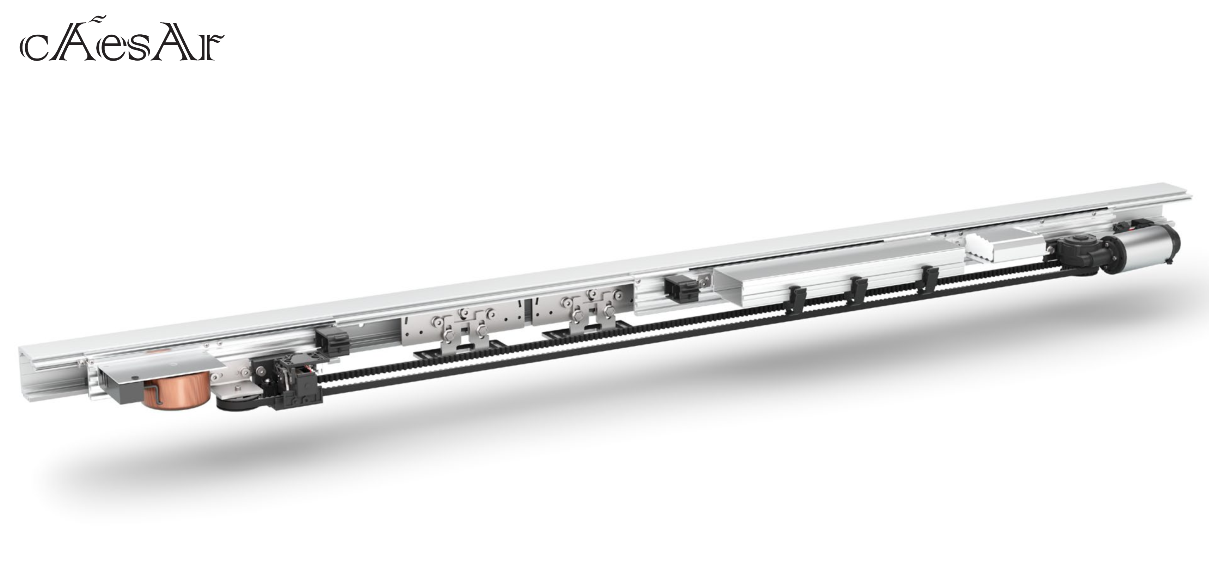

ECdrive Sliding Door Drive System for High‑Traffic Areas
The ECdrive sliding door system delivers multiple outstanding advantages with excellent cost‑performance.
This drive unit is designed for doors in high‑traffic zones.
Capable of handling door leaves up to 120 kg, ECdrive offers remarkable reliability.
Premium‑grade materials and state‑of‑the‑art control technology ensure high‑efficiency operation.
Self‑cleaning roller carriages greatly reduce maintenance costs.

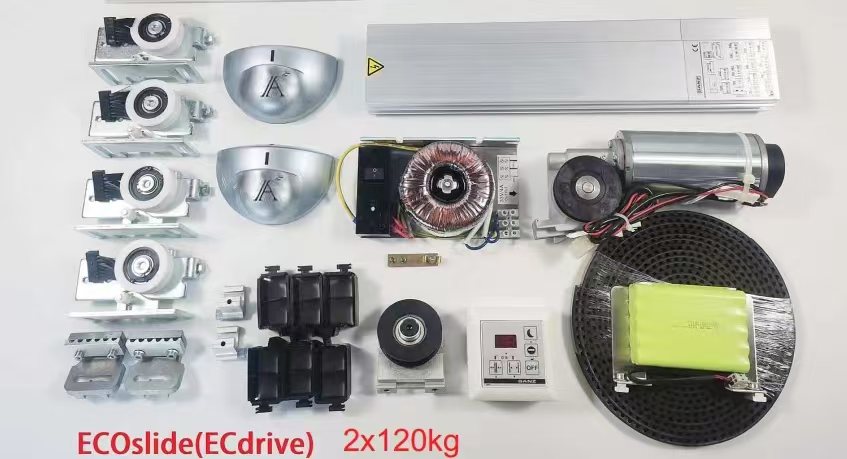

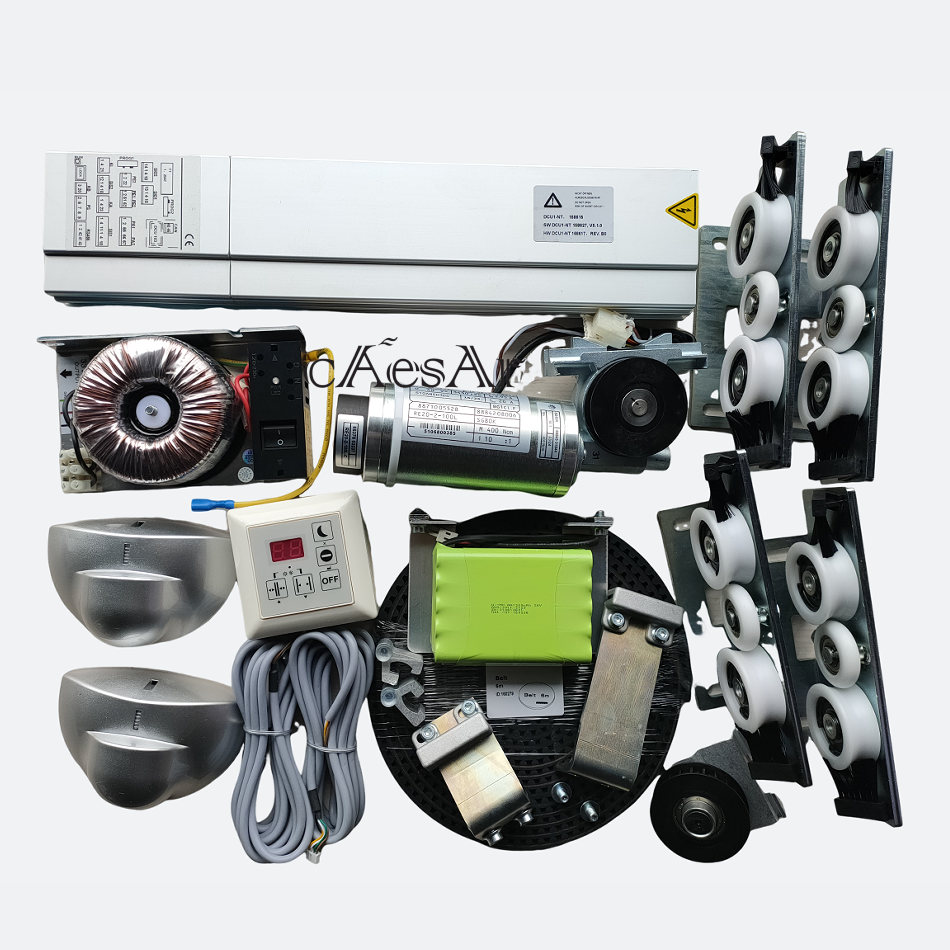

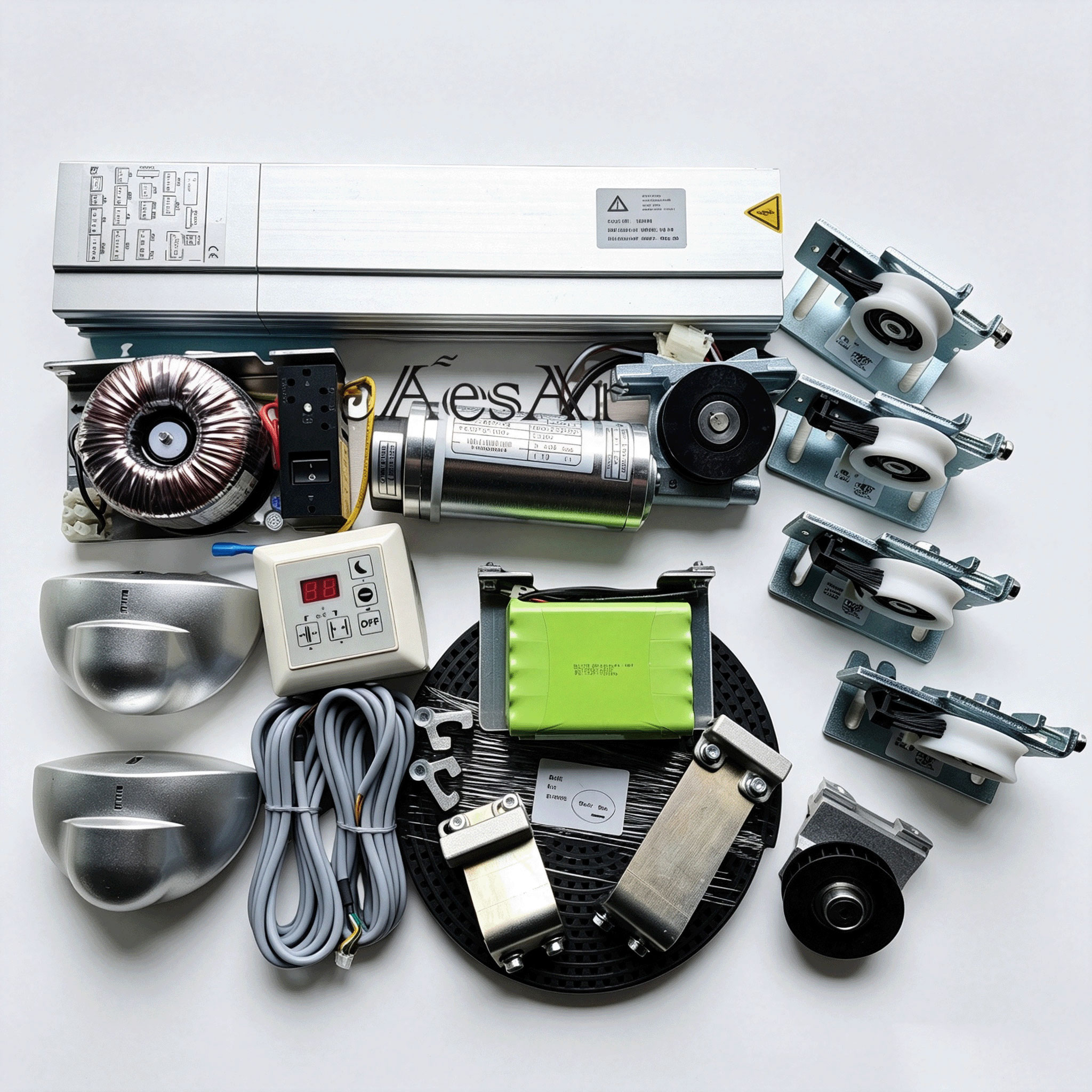

ECdrive automatic door operator kit, includes:

1.Motor 2.Control board DCU110 3.Power supply 4.DPS 5.Radar sensor ×2 6.Carrier ×4 7.Return pulley 8.Stoper ×2 9.Belt connection 10.Driving belt 11.Backup battery

Features and benefits
1.Driving motor adopts brush speed regulating motor, which has large torque, wide adjustable speed range and overheat protection of motor;
2.Transformer: high power, low temperature rise, small size;
3.The pulley comes with a cleaning brush,which has high strength, good abrasion resistance and low noise;;
4.CPU control unit has self-learning program;
5.All parameters and fault diagnosis of the system can be adjusted by display programme switch (DPS);
6.With automatic reverse function, when the door encounters obstacles in the process of closing, it will automatically move in the opposite direction.
7.May be combined with all standard door profiles
8.Fully comprehensive range of accessories
9.Reliable investment due to compliance with all relevant European standards.
