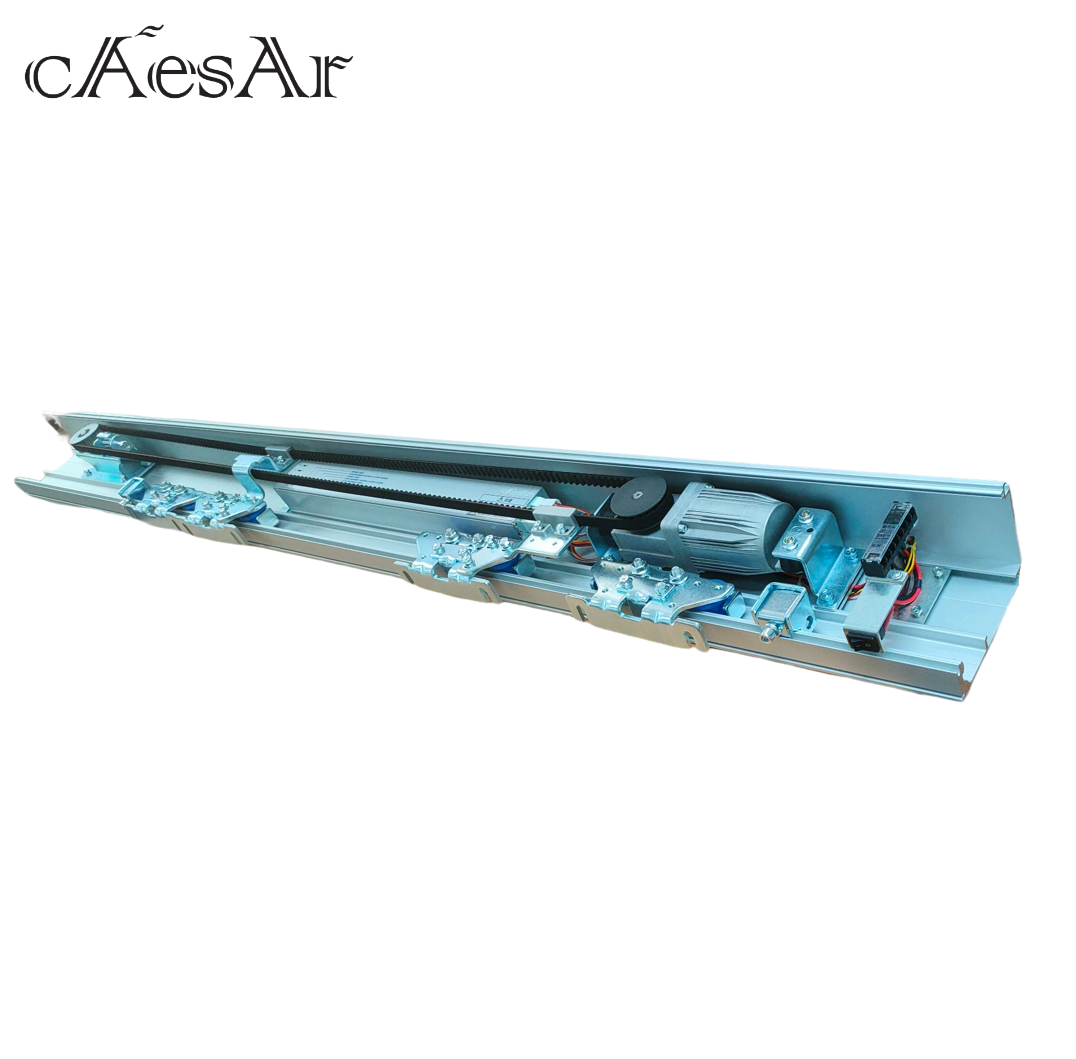

Automatic Sliding Door Operator EL100


  • Economic
  • Easy installation

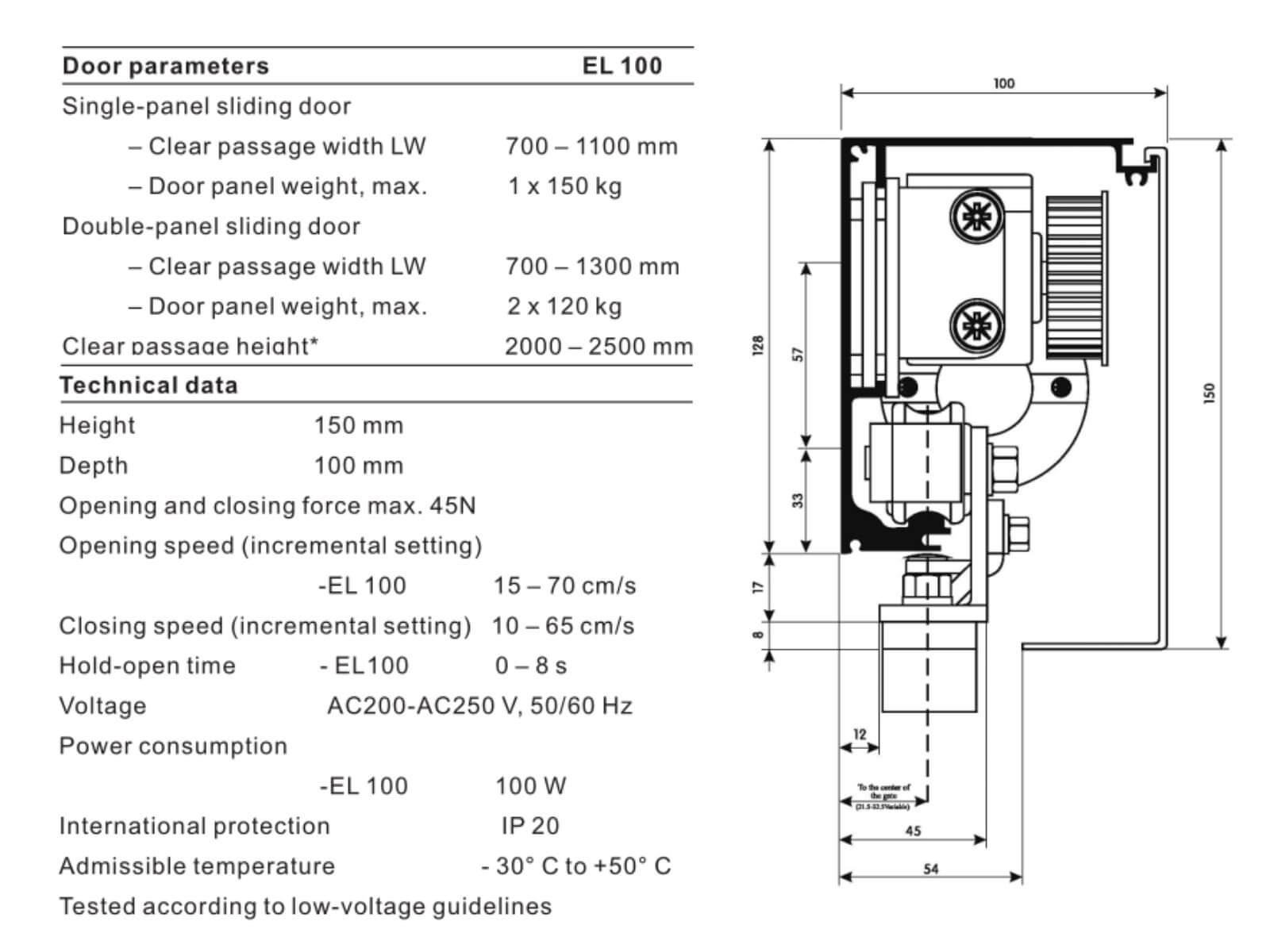

  • Max. door weight:1*150kg,2*120kg


The cost-effective, basic drive unit

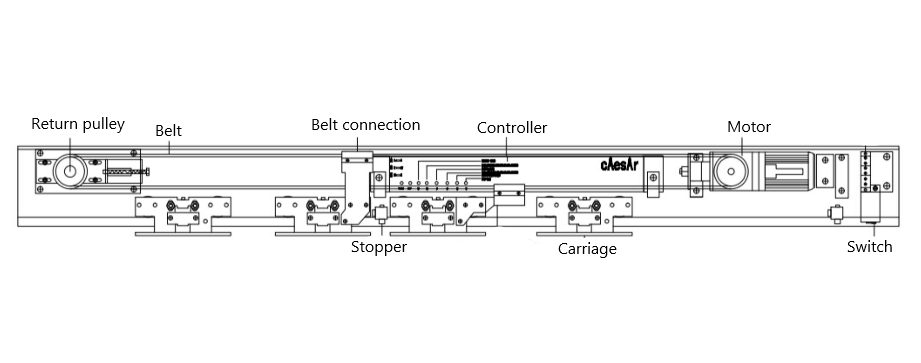

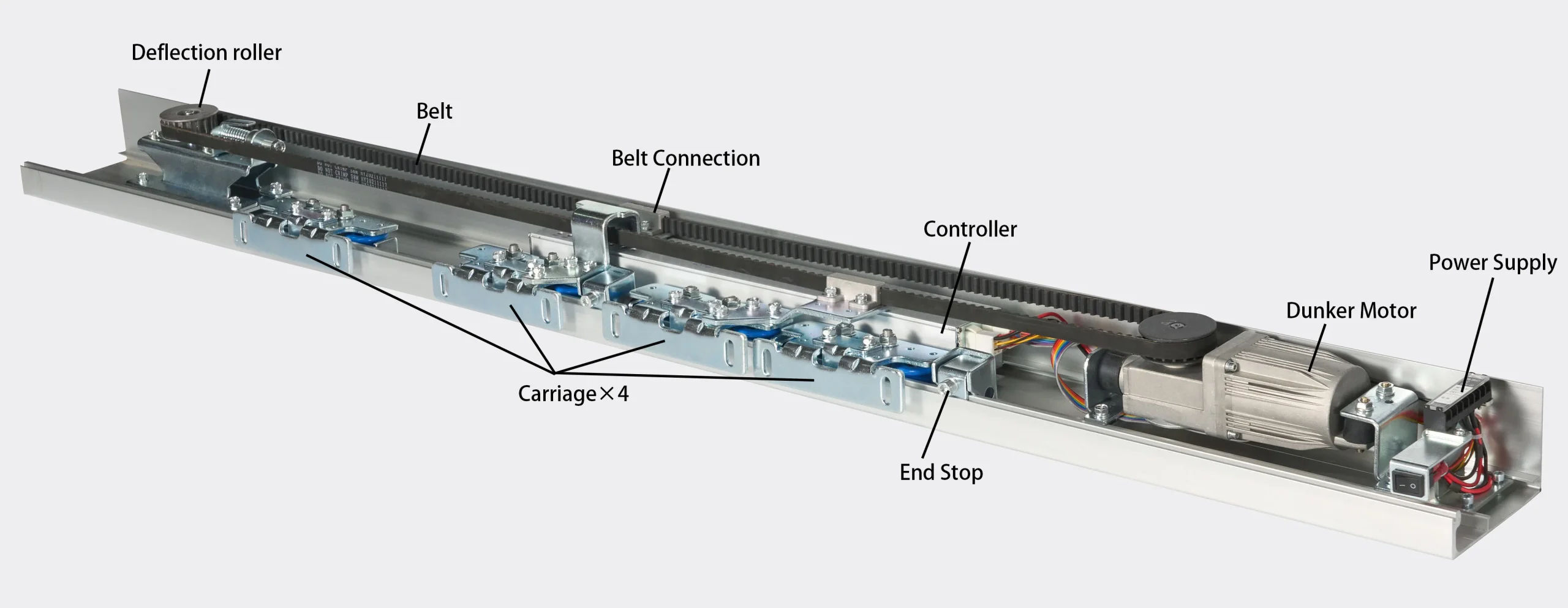

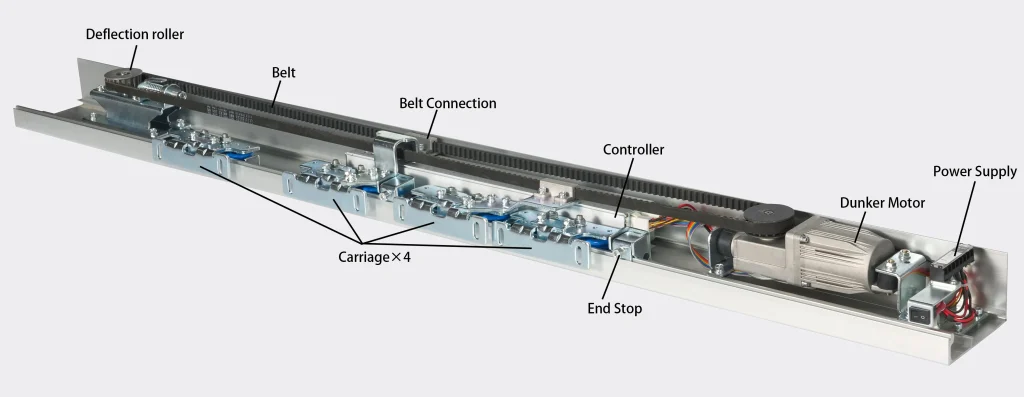

1.Logical layout, easy to install

The EL sliding door drive unit offers carefully-developed functions and user-oriented quality. The simple layout of its components guarantees fast installation and main-tenance. An optimum solution, with a highly-attractive price/performance ratio.
2.For a variety of occasions
Adopt modularized component design concept, use simple installation direction for customers, ensure the use of door machine function is flexible and convenient.

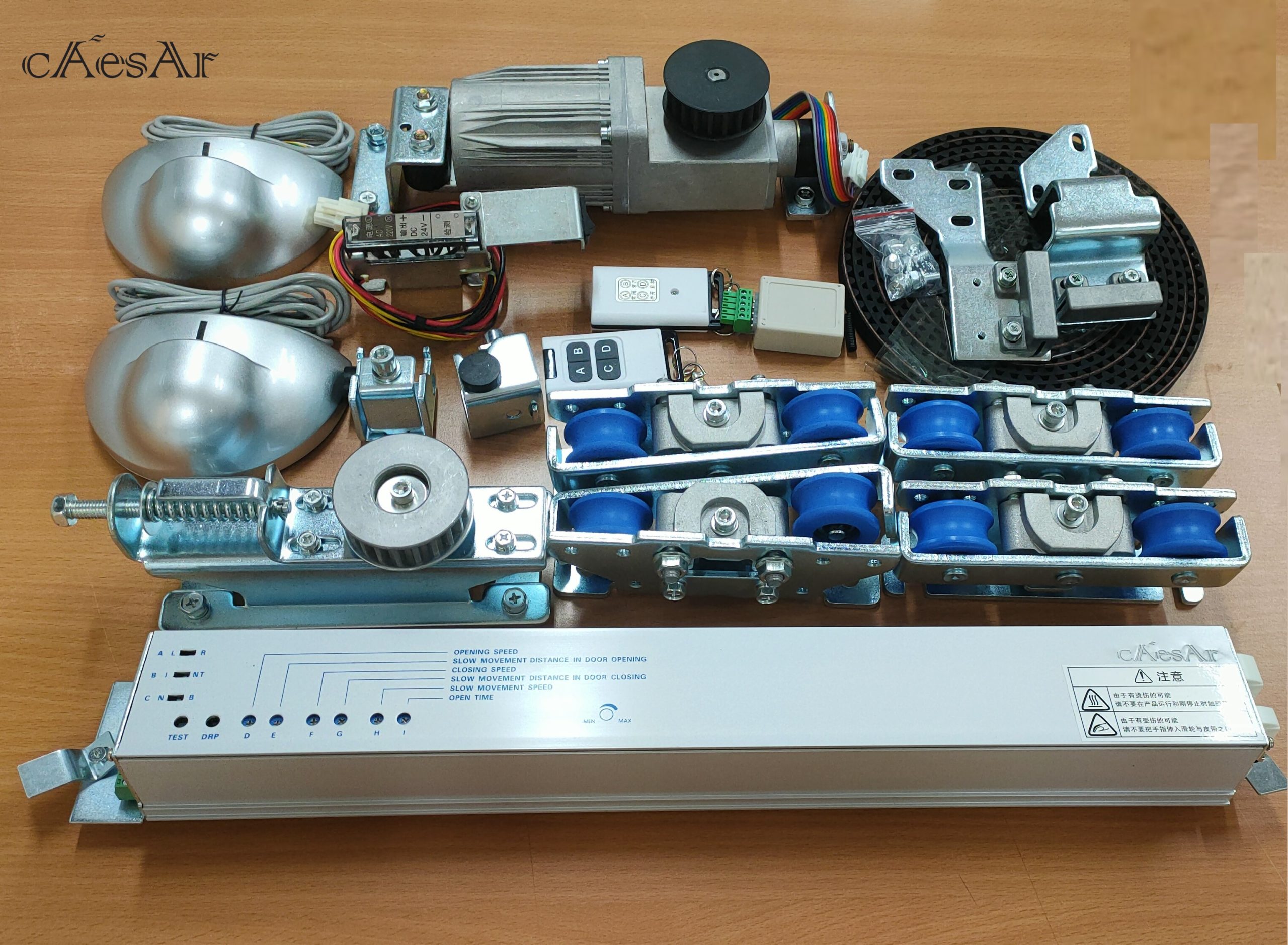

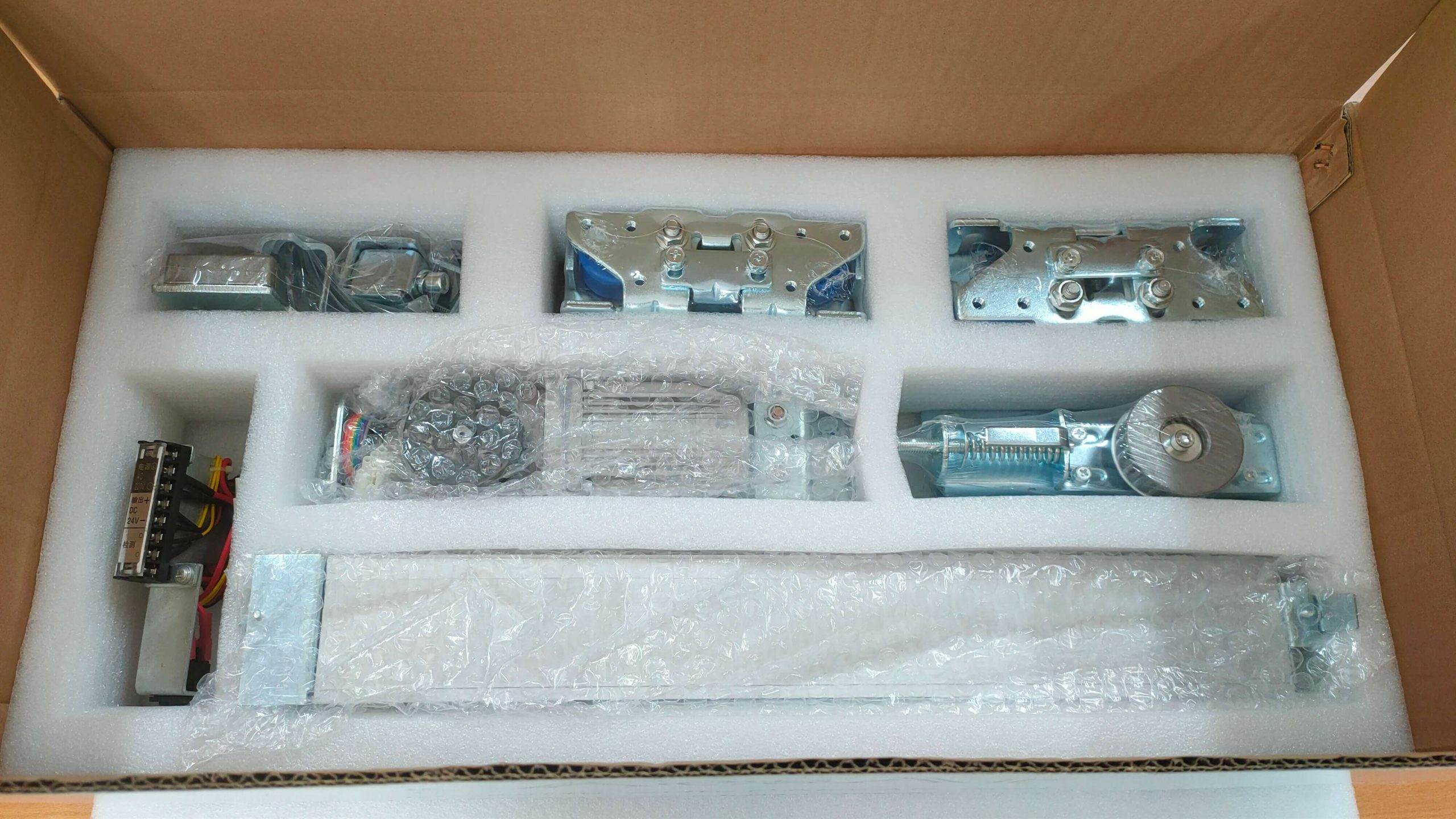

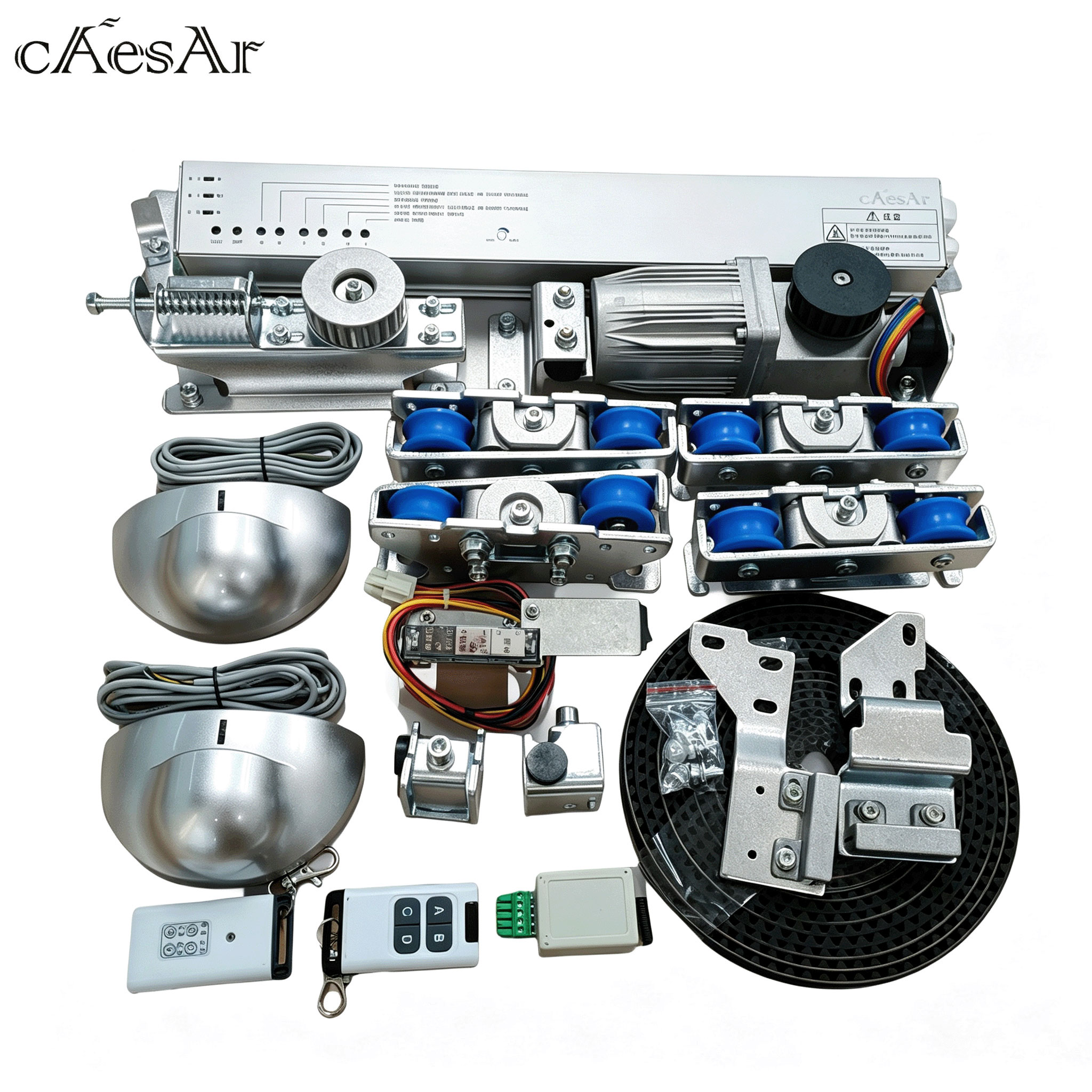

EL100 Automatic door Standard package includes:
1.Motor ×1      2.Control board ×1       3.Switch ×1       4.Remote ×2        5.Sensor ×2       6.Carrier ×4
7.Return pulley ×1       8.Stoper ×2       9.Belt connection ×1      10.Driving belt ×1      11.Track 2m×2


*Adopt DC brushless motor, small size, high power, optimize the design of deceleration device, further reduce noise.
*Optimize the control program and work with the new motor to run more smoothly and smoothly.
*With high-strength polyurethane pulleys, the rolling friction noise is even lower.
*The new sensor is more sensitive and stable.
*Remote debugger has a wide range of adjustable functions.
*Internal safety device, continuous operating life up to 100W times or more.

Additional information

Weight 21 kg
