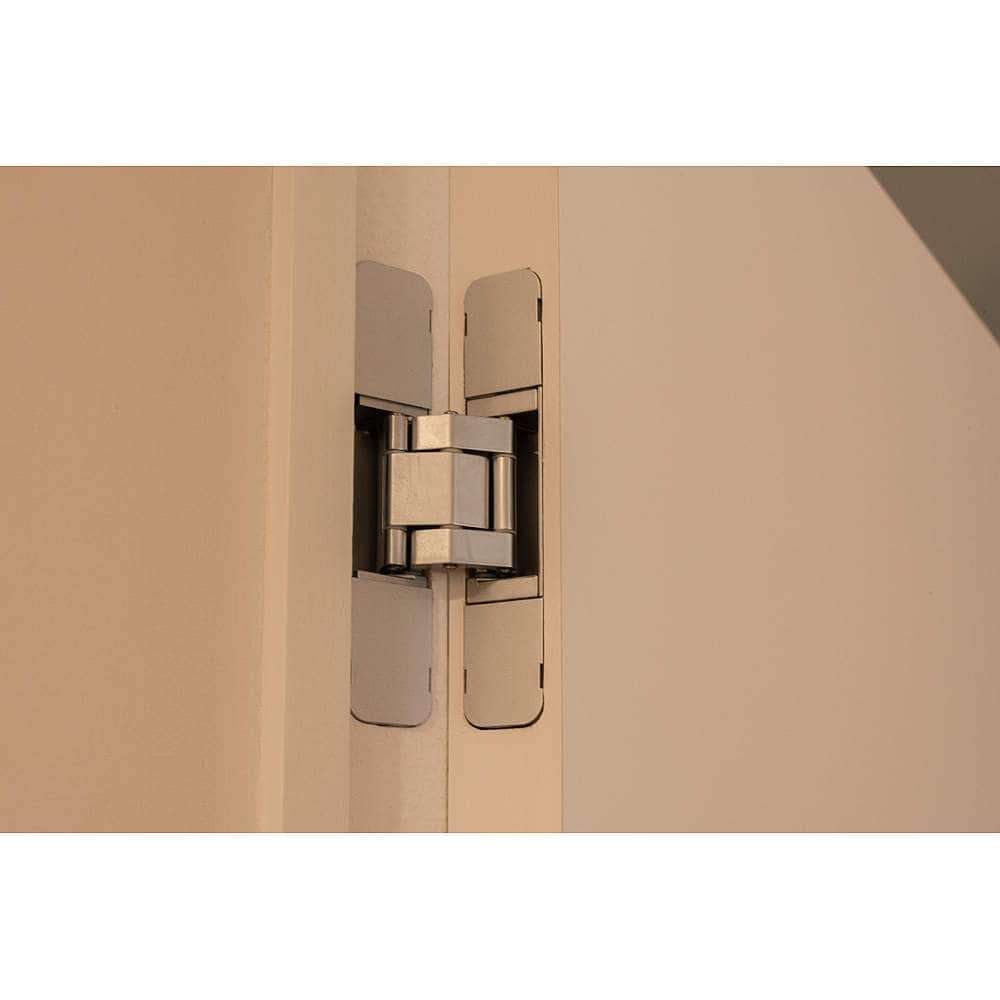

Conceal hinge with three-dimensional adjustment function
$53.80

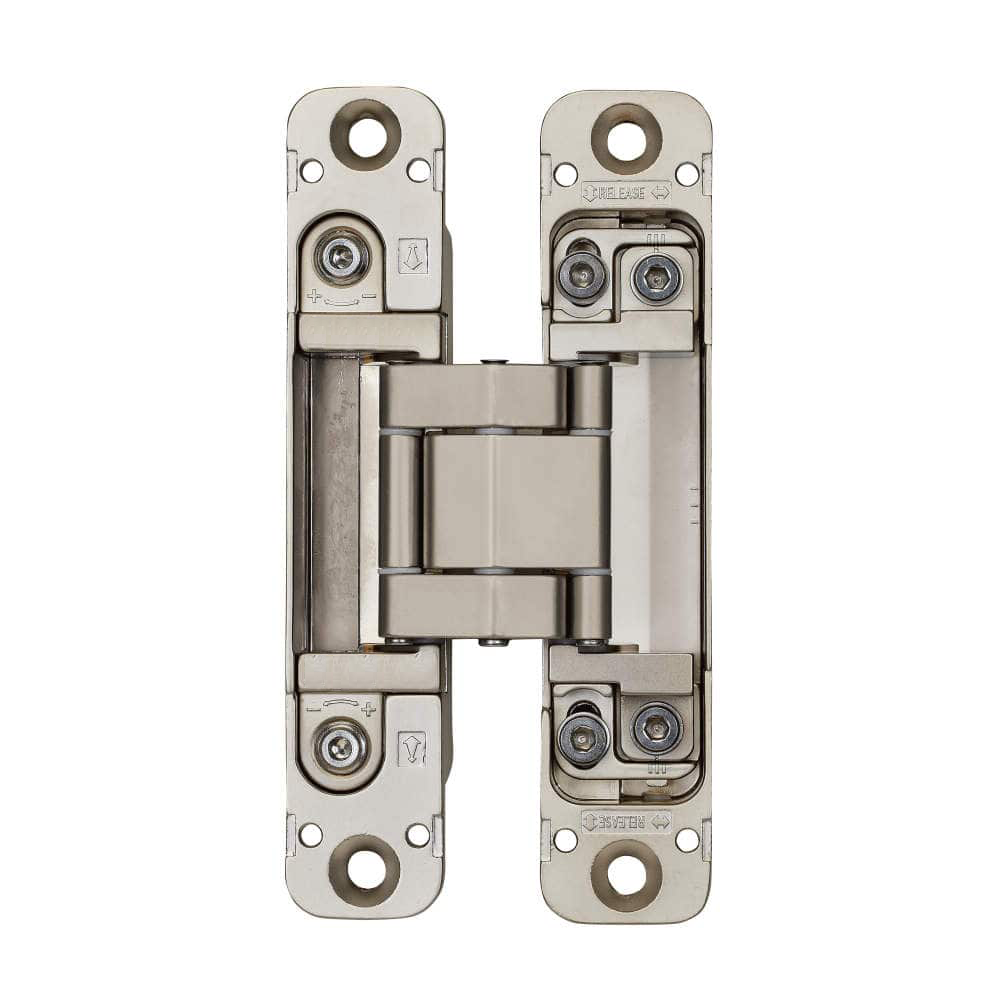

– Features a three-dimensional adjustment function, allowing for vertical, horizontal, and depth adjustments after hinge installation.
– Easy installation and adjustment.
– Passed 300,000 cycles of dedicated open/close testing.
– Includes steel countersunk screws.
– Decorative covers conceal all screw heads for a neat appearance.
– Door weight: up to 100 kg.
– Door thickness: 38 mm and above.
– Maximum door dimensions: height 2400 mm x width 900 mm.
Description
Models:
– 170-024-876
– 170-024-875
– 170-025-539
Product Codes:
– HES3D-E190DC
– HES3D-E190DN
– HES3D-E190BL

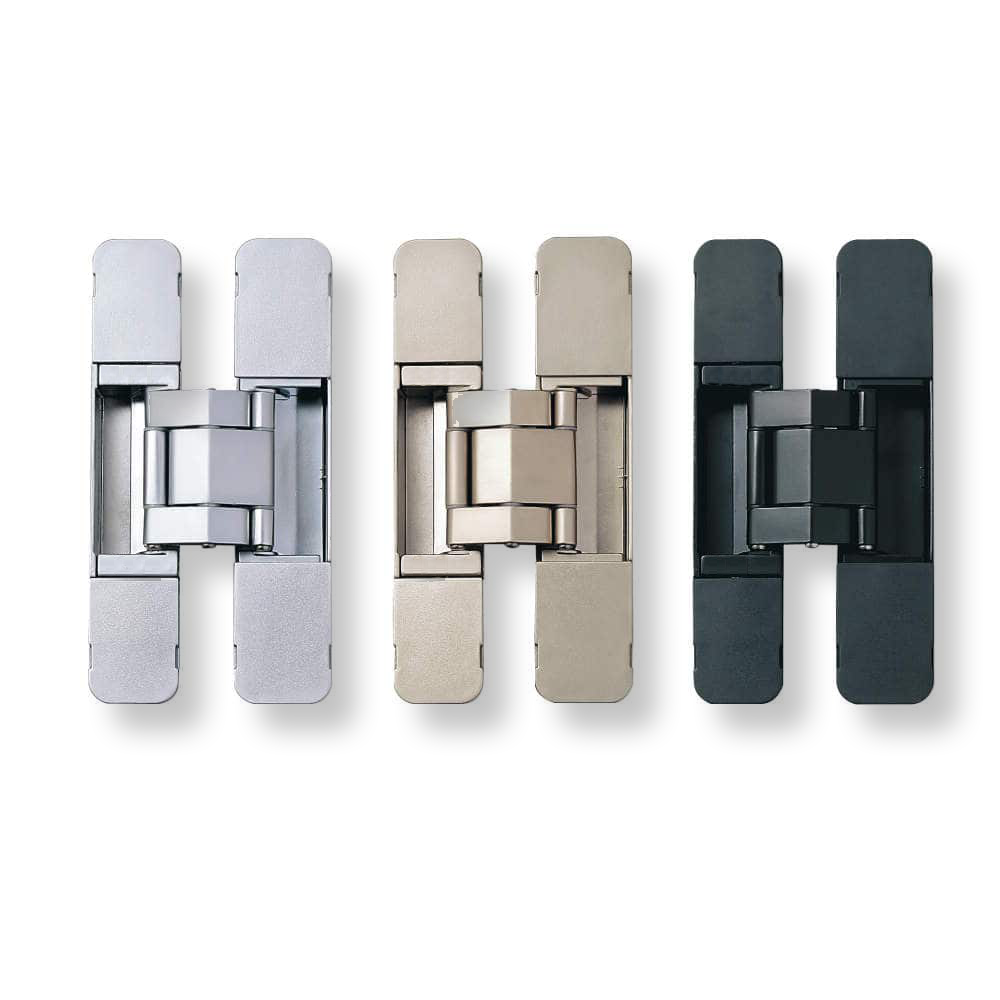

Surface Finish/Color:
– Satin Chrome
– Satin Nickel
– Black
Door Width:
– Maximum 900 mm (for all models)
Door Height:
– Maximum 2400 mm (for all models)
Weight per Model:
– HES3D-E190DC: 1050 g
– HES3D-E190DN: 1050 g
– HES3D-E190BL: 1050 g
Packaging:
– HES3D-E190DC: 1 box contains 2 units, 1 carton contains 24 units
– HES3D-E190DN: 1 box contains 2 units, 1 carton contains 24 units
– HES3D-E190BL: 1 box contains 2 units, 1 carton contains 24 units
Door Thickness:
– Minimum 38 mm (for all models)
Door Weight:
– Maximum 100 kg (for all models)
Opening Angle:
– 180° (for all models)
—
Additional information
| Weight | 2.5 kg |
|---|
