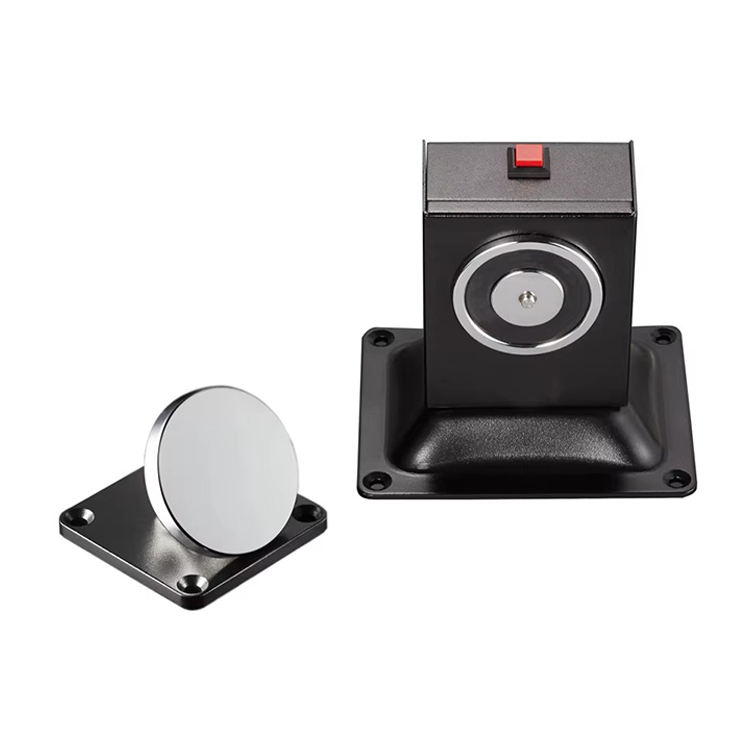

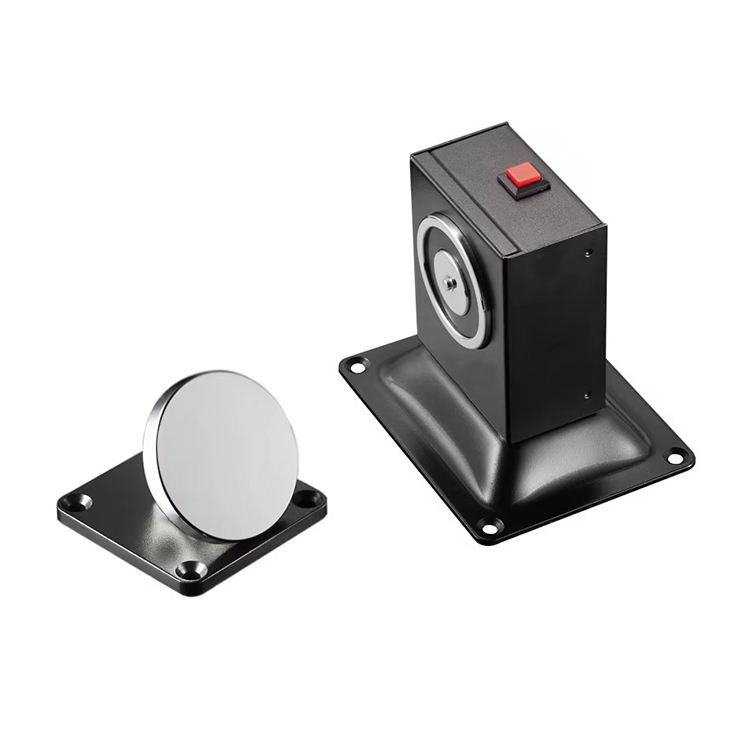

Floor and Wall Mount Electric Magnetic Door Holder for Emergency Exit

Description

This is a wall mount and floor mount door holder.which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.

Parameter Description

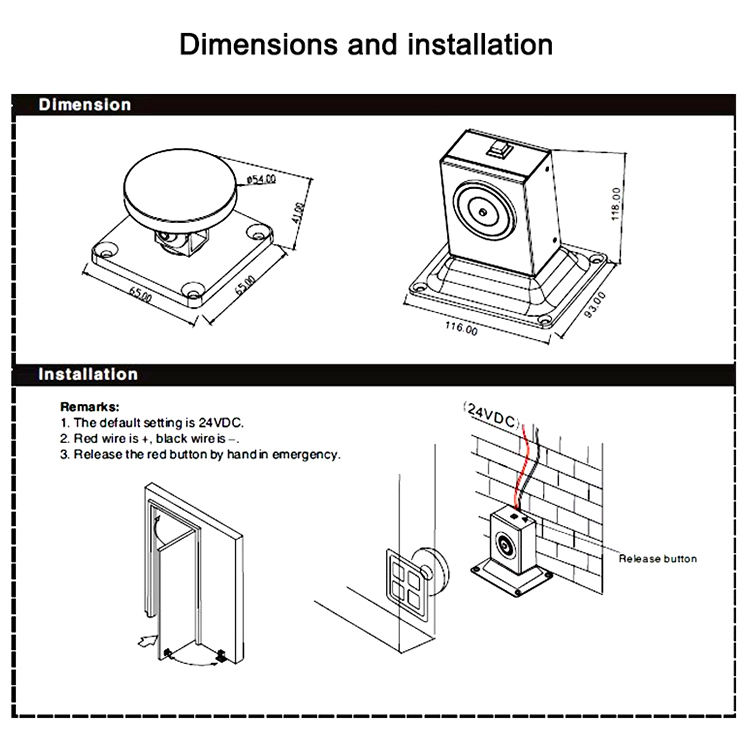

Dimension：L116xW93xH118(mm)
Holding Force：50kg(110Lbs)
Voltage：24VDC
Suitable for：All Kinds of Single(Double) Smokeproof Door
Opening Mode：90 or 180 Degree Door
Finished for Shell：Stainless steel, Wire Drawing
Current Draw：70mA
Optional：Manual door release button
Operating Temp：-10℃ ~+55℃ (14-131F)
Weight：1.4kg
