Premium Automatic Door Mechanism ES200

ES200 automatic sliding door mechanism is an elegant and fuctional unit that has been designed to meet the requirements of every automatic door application (EN 16005 and DIN 18650)

  • Germany Dunkermotoren GR 63×55 + SG80 + RE20
  • Maximum bearing capacity of double moving door: 160 kg x2
  • Opening width of double moving door: 900 – 3000 mm
  • Closed strength: 150N
  • Door machine height: 150mm
  • Function module (FM) optional

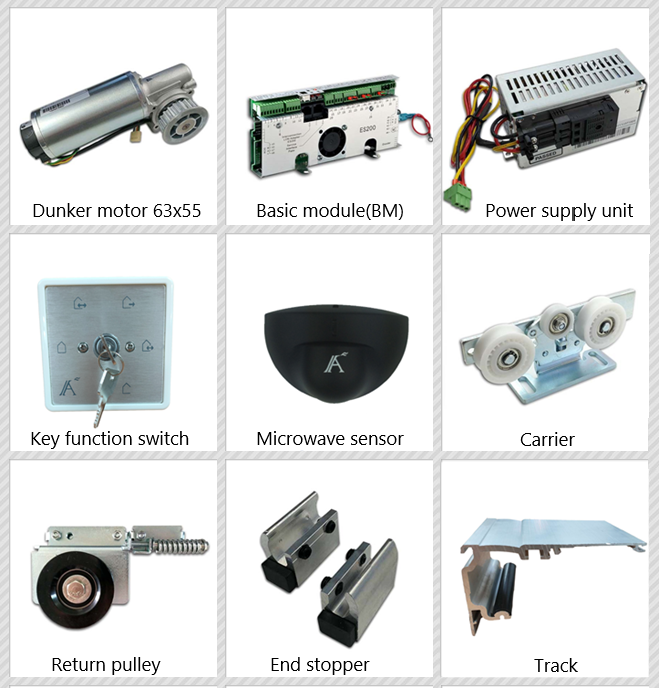

Mechanism standard packege includes HD Track & Hardware with Belt Drive System, basic control module (BM), Motor & decode, Power supply unit, motion sensor x2, Key switch .

  • PLEASE NOTE: Maximum length is 3000 by air, The track will be cut in two pieces for a standard size (4 meters) if you need to take a flight.
  • The track rail is covered a pad with special material for noise reduction & running smooth
  • Standard size, openning width 2000mm (Track rail length 4150mm)
  • ​The mechanism will be pack in hard carton box, complete package is standard, Kit package (Track rail and kit separated) is available as optional
  • Instructions depict how to assembly and operating. The instruction video can be found on our website also. It is solely the responsibility of the installer to insure the system is supported & attached properly
  • Technical data is for all ES200 products, Optional items and internal cover are not included in standard packege
  • Two type integral lock set are available as optional, Lock or release when power off
  • A key switch for functional program is standard, a remote switch is available as a optional
  • Power supply unit can work on 90V AC ~ 240V AC
  • Click here for ACCESSORIES & Additional Safety Sensors
  • Door running parameters can be adjusted on basic module, If you like to adjust the parameter using a panel beside a door, contact us for ES200T

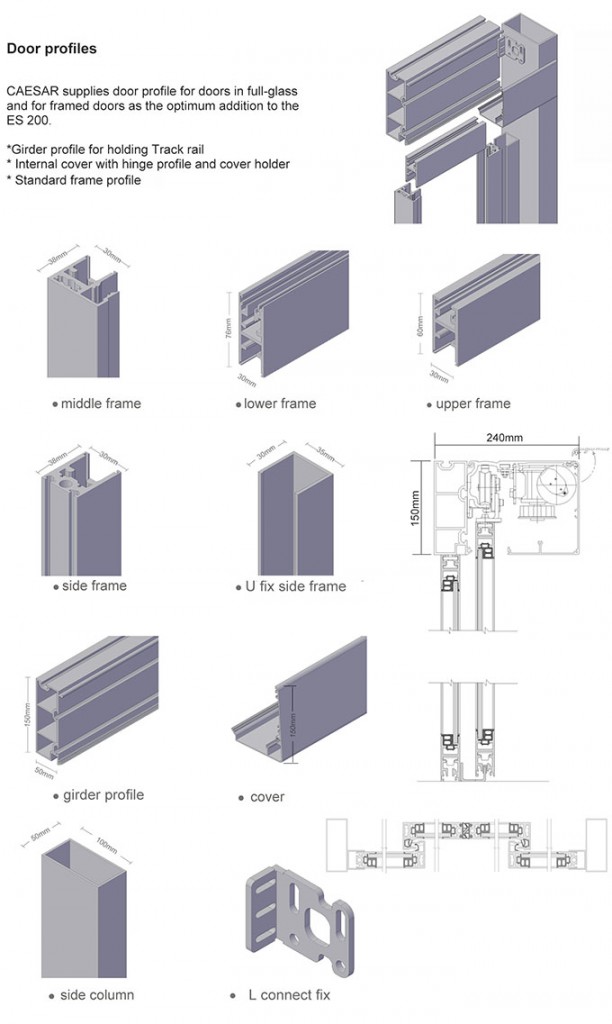

  • Door profile system are available (scroll down for details)

The professional profile system of doors are available
