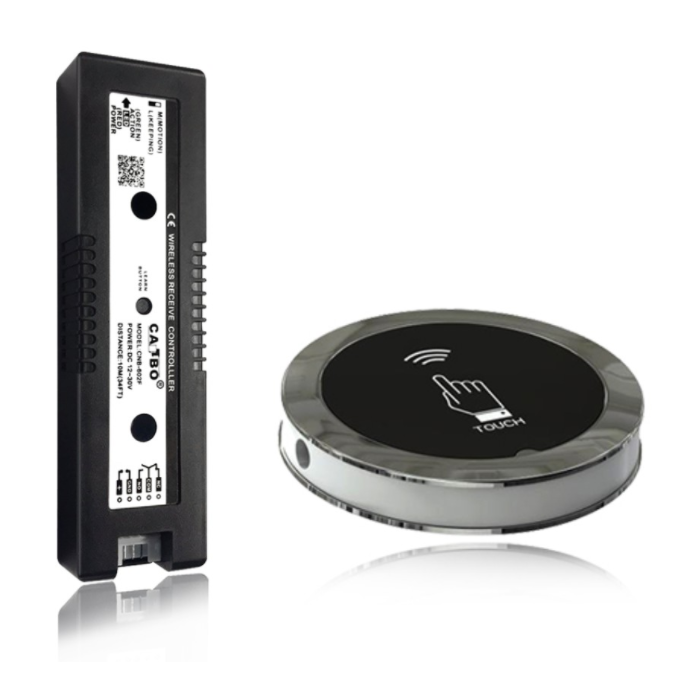

WIRELESS METAL TOUCH SWITCH

Description

Product application

Using low power consumption and high sensitivity 2.4G wireless touch switch wide Used for dimming glass control switch automatic door opening and The gating device.

Overall characteristics

The transmitter has a low-power design and has a longer battery life. Frequency jump design, improve the anti-interference ability, effectively solve the problem of multiple launches at the same time Touch switch design, instead of mechanical switch, longer service life. The receiver is equipped with a wide voltage input design and a DC1230V DC power supply input. When the signal is received, the light indication can confirm whether the signal switch is valid.

Technical parameter

Support function: Touch-sensing

Standby current of 10 μA

Emission mean current: 12mA

Battery service life: An average of 100 times per day, for 220 days

Working humidity: 90%

Working temperature: -30℃ -50℃

Emission frequency: 2.4GHZ2032

Power supply battery: button battery 3V x2

Way to install: wireless mount

Wireless distance: visual distance of 38 meters

Product appearance and dimensions: 60mm×16.5mm

Receiver technical parameters

power supply: DC12~30V

standby current: 30 mA (DC12V power supply)

Action current: 74 mA (DC12V power supply)

relay contact: 1A 24VDC

contact suction holding time: 1.5 seconds (click)

signal output: click / hold / dial

product appearance size: 110mm (L) 30mm (W) 15mm (H)
