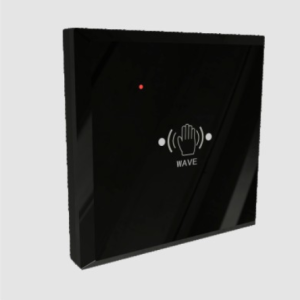

WIRELESS INFRARED TOUCH FREE SWITCH 505MHW

Description

Product application

Relay signal output can be used with automatic door access controller.

Overall characteristics

Standard type 86 switch panel, wireless design, installation-free wiring, and more flexible installation. The panel adopts radium carving technology, with backlight display, novel style, fashion. Using 2.4G wireless communication technology, good frequency consistency and high stability of wireless transceiver. The transmitter adopts low power transmission technology, with long transmitting distance, low power consumption and long battery life. The receiver uses the self-learning pair code, which is convenient for customers to add the induction switch at any time. Receiver wide voltage input design, 12m30V DC power input effective. When the remote control is valid, the blue light is on to confirm whether the switch is valid.

Technical parameter

Power Supply Voltage: AC/DC 12-30V

Quiescent current: 30 mA (when DC12V is in power supply)

Action current: 74 mA (DC12V when supplied)

Main contact capacity: 1A24VDC (Wireless receiver)

Contact suction hold time: 1.5 seconds (wireless receiver)

Power Supply Voltage: 3V (23V dry batteries, parallel power supply) (transmitter)

Standby current: 10.3 μ A (emitter)

Emission current: 12.55mA (Transmitter)

Battery service life: Average induction 200 times per day, durable 220 days (transmitter)

Receiver sensitivity: -95dbm sensing distance: 3-30cm

Launch range: Empty space is 30 meters, up to more than 30 meters

Appearance dimensions (emitter): 86mm 86mm

Appearance dimensions (receiver): 110mm (L) 30mm (W) 15mm (H)
