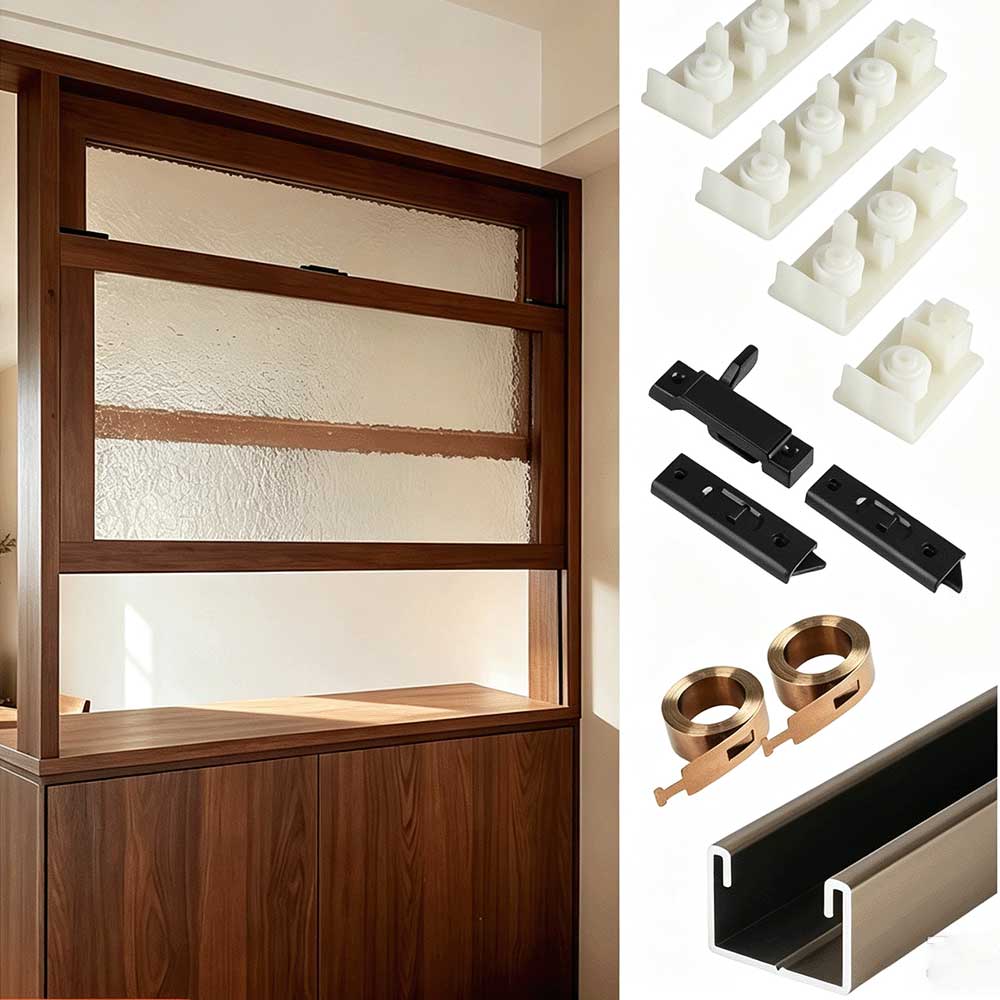

Vertical Sliding Lift Window Track Hardware

Description

Product Features

1. Easy operation with free vertical hold at any height. Customizable handle. The sash stays steadily at any position for flexible ventilation, delivering stable and versatile performance.
2. Vertical sliding opening design saves extra indoor & outdoor space, eliminating collision risks. Suitable for multiple application scenarios.
3. Aluminum alloy track: lightweight, high strength, corrosion-resistant, smooth and quiet.
4. Steel coil spring plus nylon base. The spring can be matched to the sash weight. Smooth & labor-saving lifting, keeps the sash locked steadily at any height with no rebound. Nylon construction enables silent shock absorption.
5. Dual-lock design for reliable safety. Flip lock facilitates cleaning, while window lock provides secure protection.

Installation Requirements

1. Applicable height per sash: 350~900mm (moving sash) Applicable width: 350~1200mm (moving sash)
2. 50/50 split for fixed and moving sash: Moving sash height = (Clear inner height H + Overlap) ÷ 2
3. Moving sash height ≤ 0.8m, width ≤1.2m. If the width exceeds 1.2m, it is recommended to use two separate windows.
4. Single-side gap: 2mm

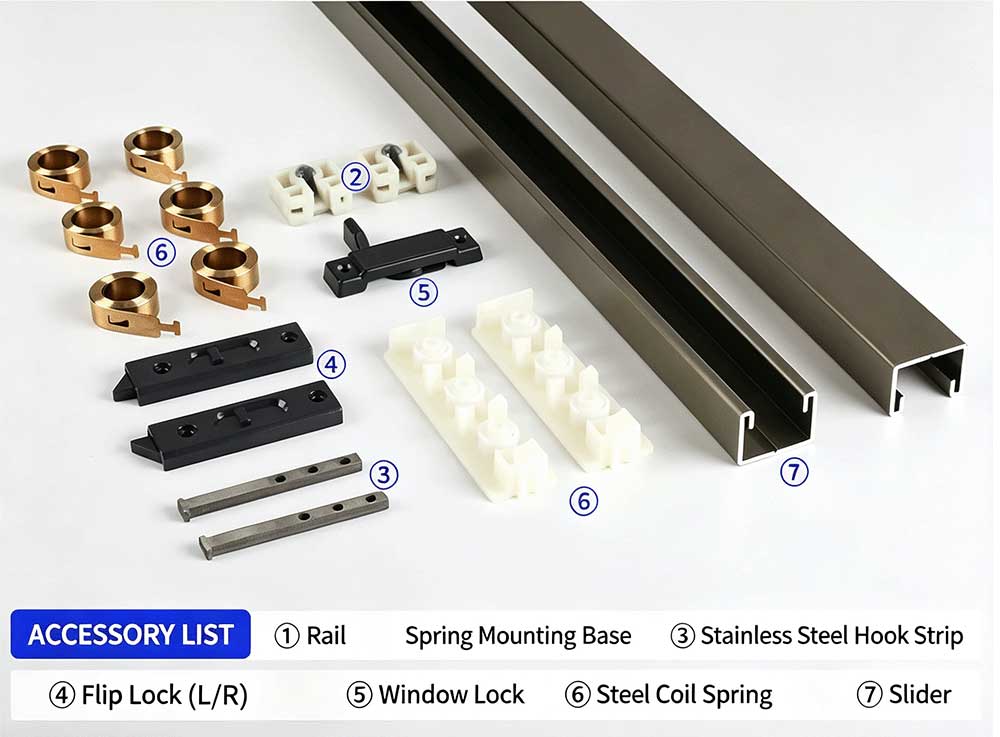

Package Includes:

Please select the appropriate model according to the actual weight and overall height of your window sash:

• Model A5: Load capacity 5kg, rail length optional: 1m / 1.5m / 2m
• Model A10: Load capacity 10kg, rail length optional: 1m / 1.5m / 2m
• Model A15: Load capacity 15kg, rail length optional: 1m / 1.5m / 2m
• Model A20: Load capacity 20kg, rail length optional: 1m / 1.5m / 2m
