Up and Down Folding Window Hardware

Description

Product Features

1. 80° wide opening angle. There is no need to avoid the sash, maximizing space utilization and creating an open and transparent indoor-outdoor area.
2. Arbitrary position hold. The opening angle can be flexibly adjusted according to scenarios for customizable ventilation.
3. Abandoning the traditional gas strut support structure. It adopts an innovative combination of steel coil spring and nylon base. Different configurations are selected based on sash weight. Smooth and labor-saving lifting, anti-rebound design, with nylon for silent shock absorption.
4. Aluminum alloy track features high hardness, deformation resistance, corrosion resistance, smooth and quiet operation.

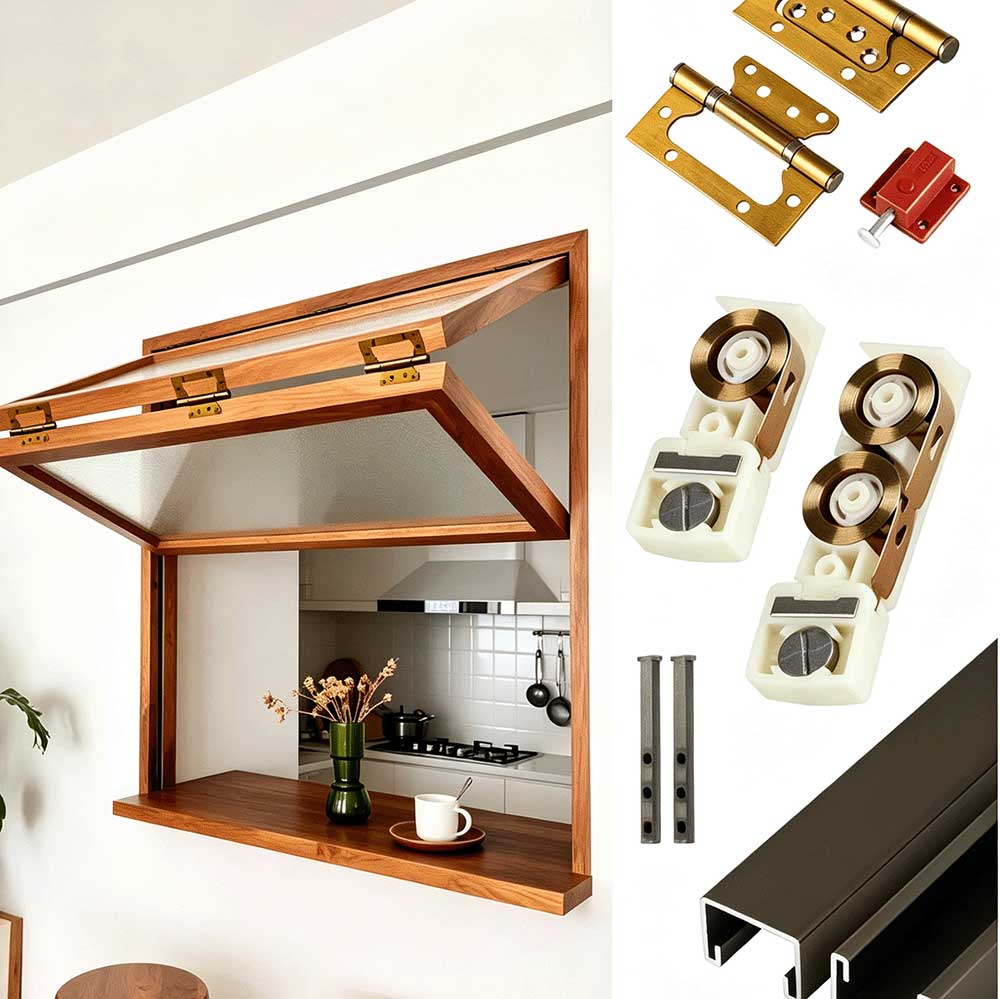

5. Suitable for open kitchens, milk tea & coffee shops, offices, balconies and other scenarios.

Installation Requirements

1. Applicable height per sash: ≤600mm
2. Overall applicable width: ≤1200mm
3. Applicable sash thickness: 40mm
4. Total rough opening width = window width + 4 (clearance)
5. Total rough opening height = upper sash + lower sash + 2.5*2 + 2
6. If the width exceeds 1.2m, it is recommended to split into two separate windows.

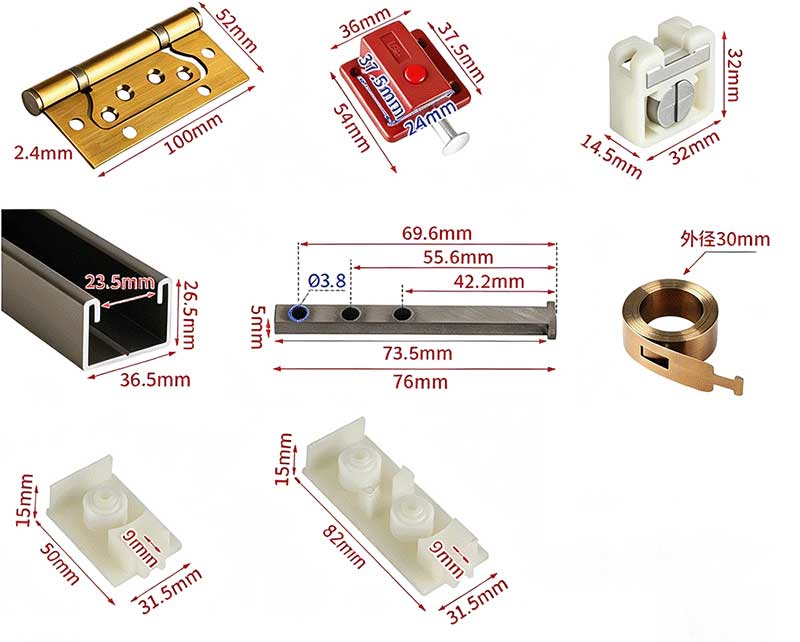

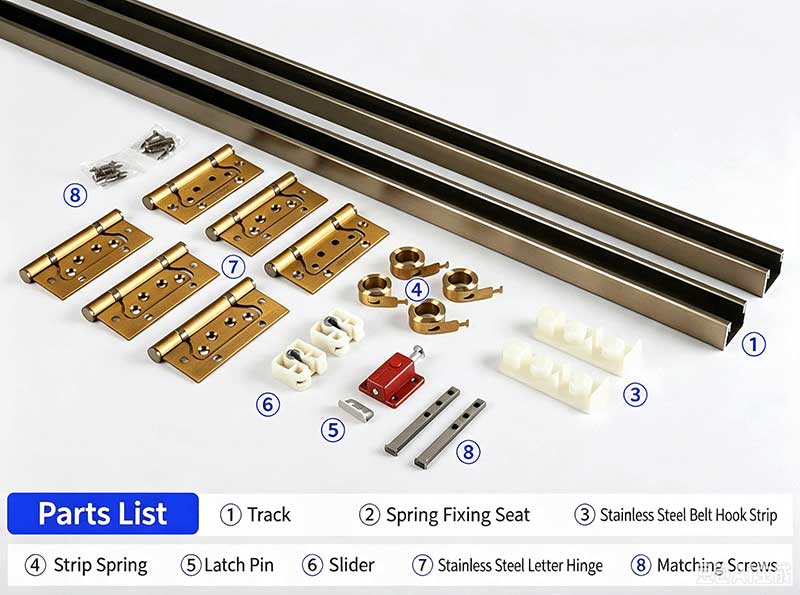

Package Includes:

Please select the appropriate model according to the actual weight and overall height of your window sash:

• Model A12: Load capacity 12kg, rail length optional: 1m / 1.5m / 2m
• Model A23: Load capacity 23kg, rail length optional: 1m / 1.5m / 2m
• Model A30: Load capacity 30kg, rail length optional: 1m / 1.5m / 2m
