SLM (EC100)

Description

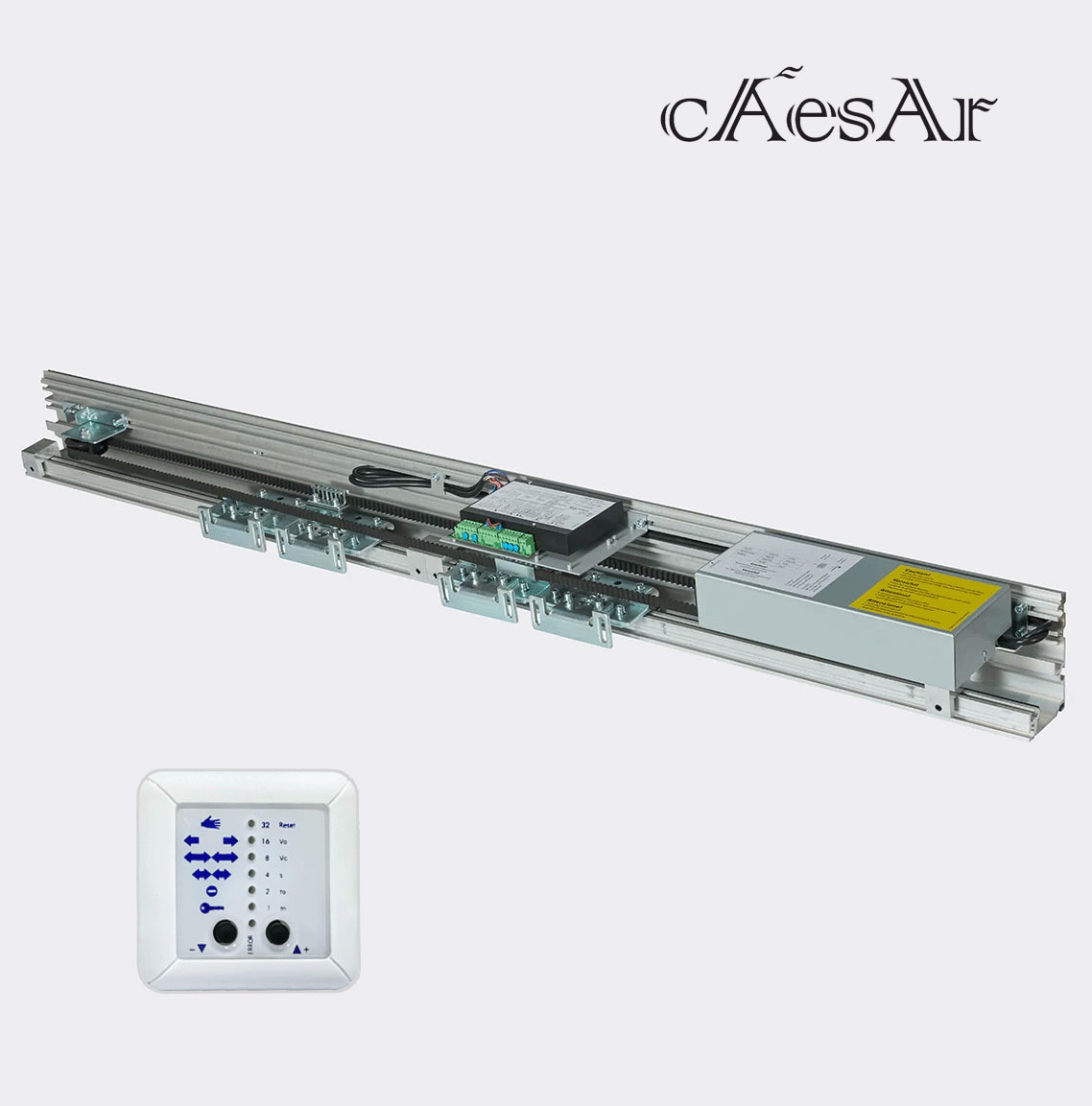

EC SLIDING DOOR OPERATOR
The cost-effective, basic drive unit

Control panel(BEDIS)

The two-way aggregation system can operate a variety of options, such as: program selection, adjustment function, and self-test display.Use the sheathed cable(U72M or DIN47-100CY) to connect to ensure reliable operation within a distance of 30 meters, compact size.

Flexible structure

Adopt modularized component design concept, use simple installation direction for customers, ensure the use of door machine function is flexible and convenient.

Smart self-test display

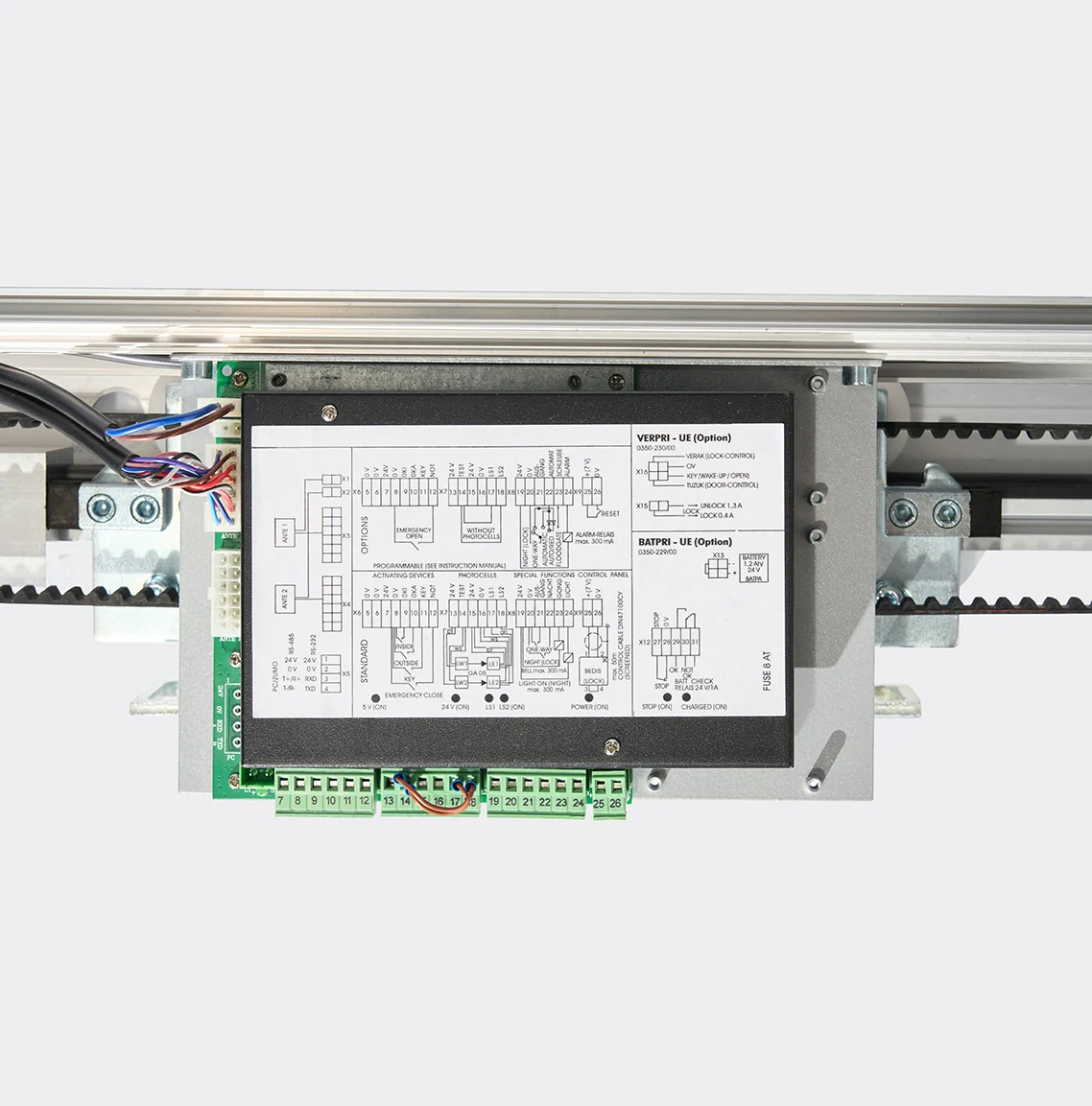

The automatic door system operation has an automatic monitoring function,which can monitor the running status and results of the system to ensure that the system operates without failure. At the same time, the system has a self-check function. Through the various combinations of the LED lights on the electronic control panel, various failures occur. For example:
*Drive device failure;
*Control module failure;
*Lock module failure;
*Sensor failure;
*Door monitoring failure;
*Power off / contr
olled backup battery;
According to the actual operating
conditions for self-adjustment to
achieve the best state.

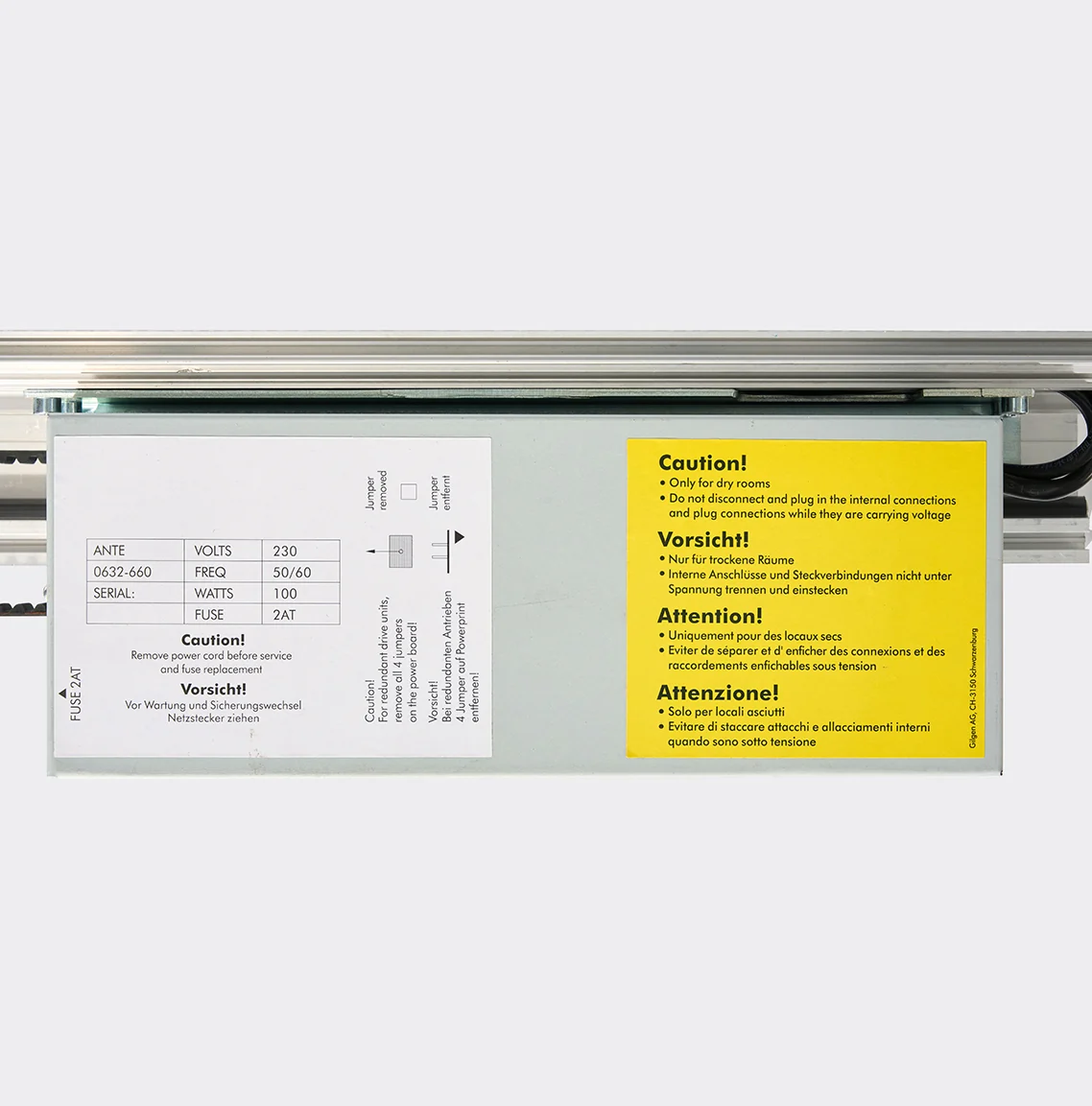

Rugged drive module

The drive motor uses the German DUNKER brushed DC motor and the motor is equipped with a reliable power regulation electronic system.

Automatic learning program

*Test quality and friction;
*Initial adjustment of the maximum allowable speed, between 0.6-0.7m/s;
*According to CEN/FCOS safety regulations, the maximum static force is 150N;
*Laser gamma locator test;
*Automatic positioning of the end;
