Sliding Gate Motor with Led Blinker signal Light

Name: Sliding Gate Motor with Led Blinker signal Light
SKU: 8374
Price: 12.00 USD
Availability: InStock

$12.00

12‑265V Wide‑Voltage LED Warning Light, Flashing / Steady‑on Signal Light for Gate & Garage Door Systems
Dual‑Mode Lighting for Versatile Applications

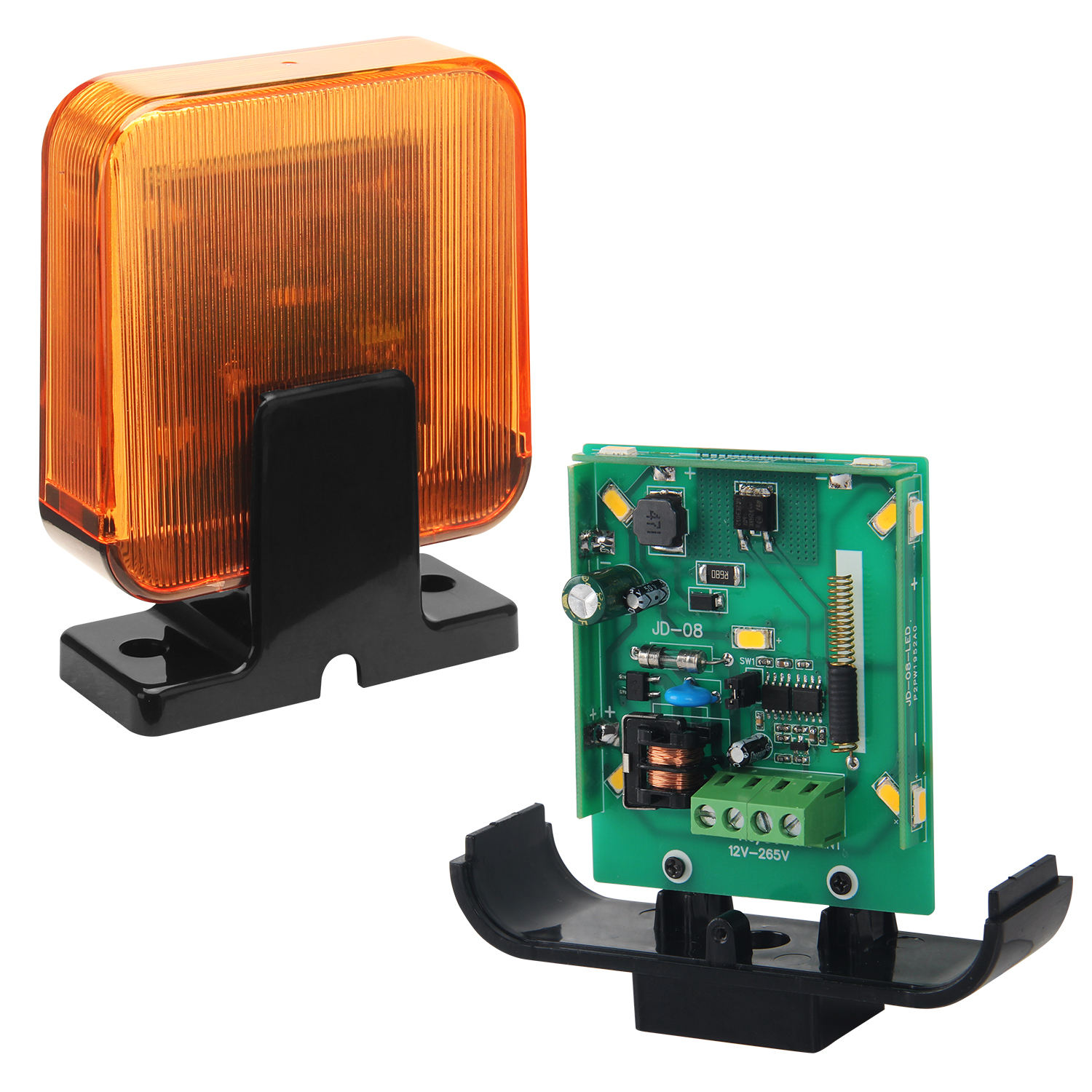

Equipped with built‑in jumper switch SW1 for one‑touch switching between flashing and steady‑on modes:
‑ Jumper connected to 2 pins: LED flashes at 1 Hz, ideal for gate movement indication, fault alarms and other high‑visibility warning scenarios.
‑ Jumper disconnected: LED stays steady‑on, suitable for continuous status indication or auxiliary emergency lighting.
Freely switch between two modes to meet diverse warning requirements for access control, garage doors and industrial equipment.

Categories: Automatic Gate Accessories, Automatic Gate Opener

Description

Wide‑Voltage Power Supply for Full‑Scenario Compatibility
Supports 12‑265V AC/DC wide‑voltage input. Compatible with 12V/24V DC access‑control power supplies and 220V AC mains power. No extra transformer required; connect wires directly for operation. Widely compatible with garage door motors, barrier gate controllers, access‑control main units and industrial alarm devices.
High‑Brightness & Waterproof Design for Long‑Term Reliability

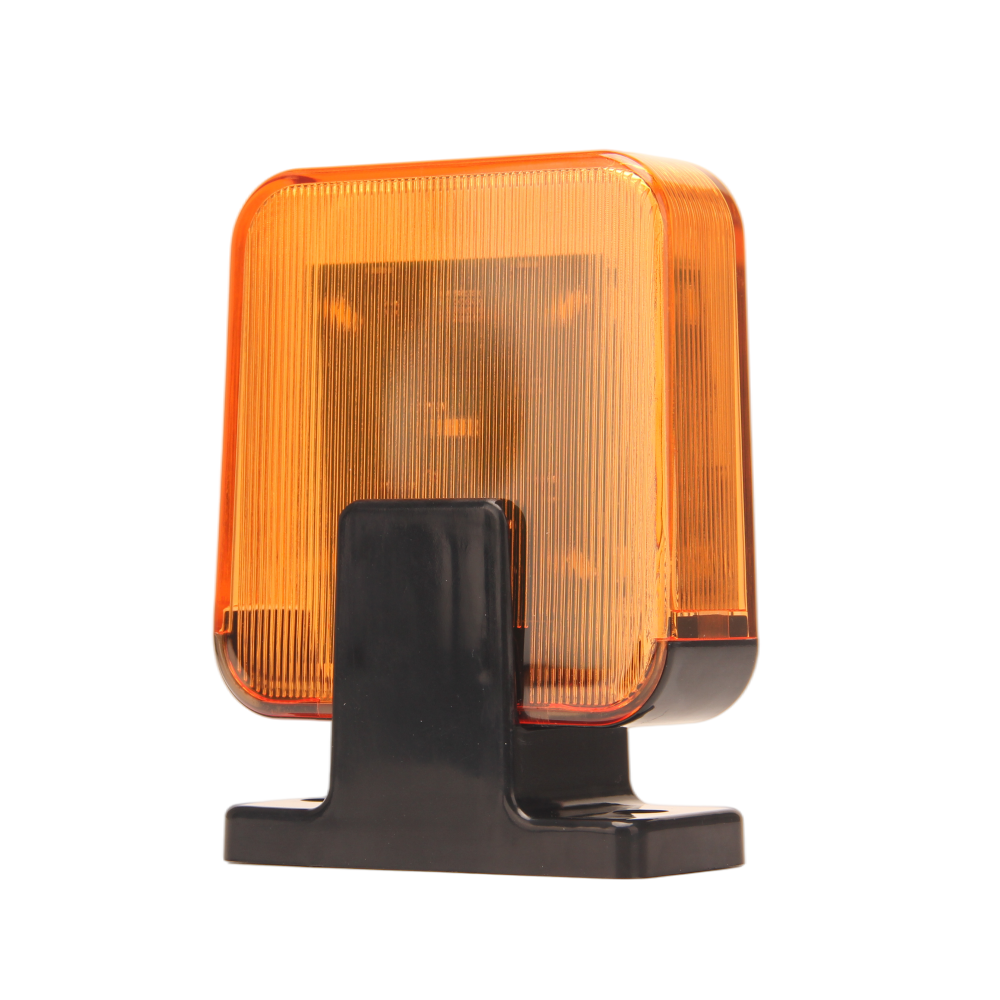

‑ 4W high‑brightness LED: Orange lens with high‑transmittance textured surface delivers even, prominent light, clearly visible both indoors and outdoors.
‑ IP54 dust‑proof & water‑proof rating: Weather‑resistant housing withstands rain and dust, well‑suited for outdoor installation.
‑ Wide‑temperature stable performance: Operating temperature ‑20℃ ~ +60℃, works reliably under extreme hot and cold conditions.

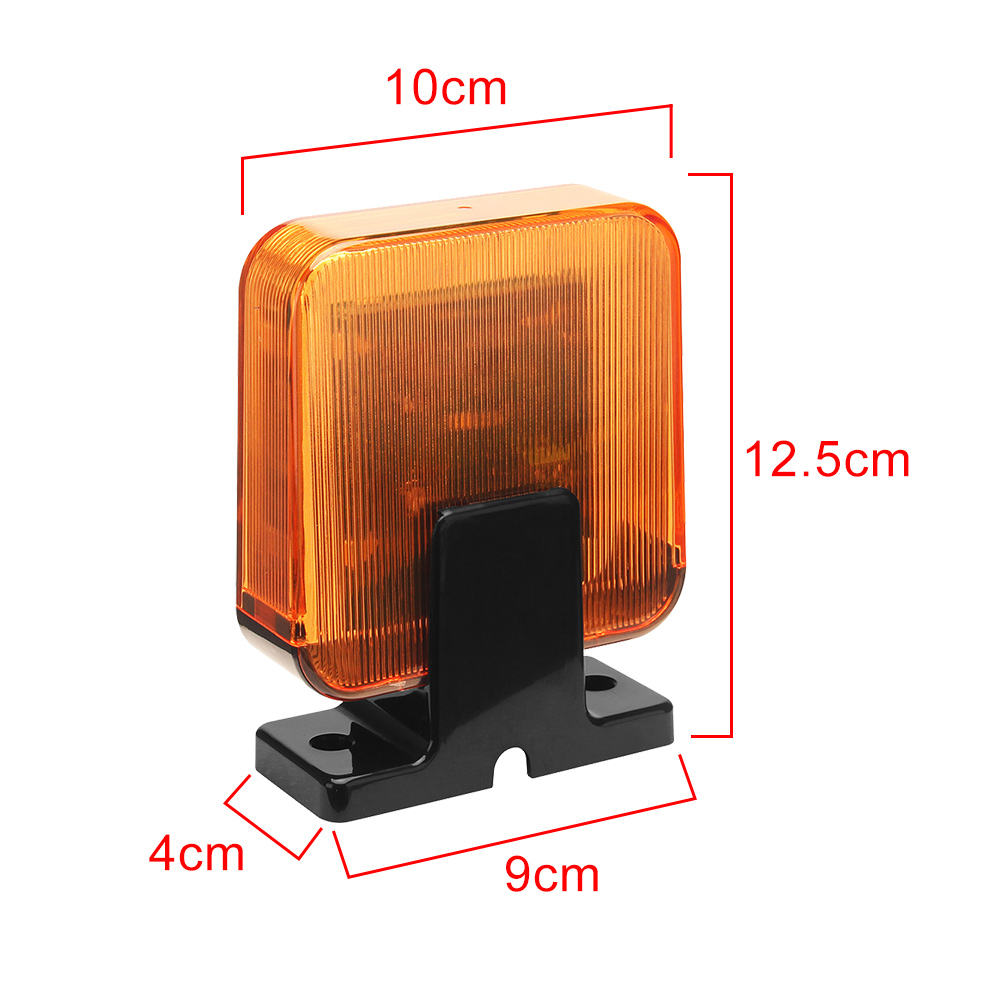

‑ Compact dimension: 98×40×125 mm, space‑saving with flexible mounting options.

Flexible & Easy Installation
Supports vertical and horizontal mounting. Pre‑drilled mounting holes allow secure fastening onto walls, gate panels or equipment enclosures using expansion tubes and M4*32 screws. Clear wiring procedures enable quick setup even for beginners.

Specifications
Operating Voltage: 12‑265V AC/DC
Power Rating: 4W
Lighting Mode: 1 Hz Flashing / Steady‑on (switchable)
Ingress Protection: IP54
Operating Temperature: ‑20℃ ~ +60℃
Product Dimensions: 98mm×40mm×125mm
Product Weight: 200g
Mounting Method: Vertical / Horizontal screw fastening
Material: Weather‑resistant ABS lens + plastic base
