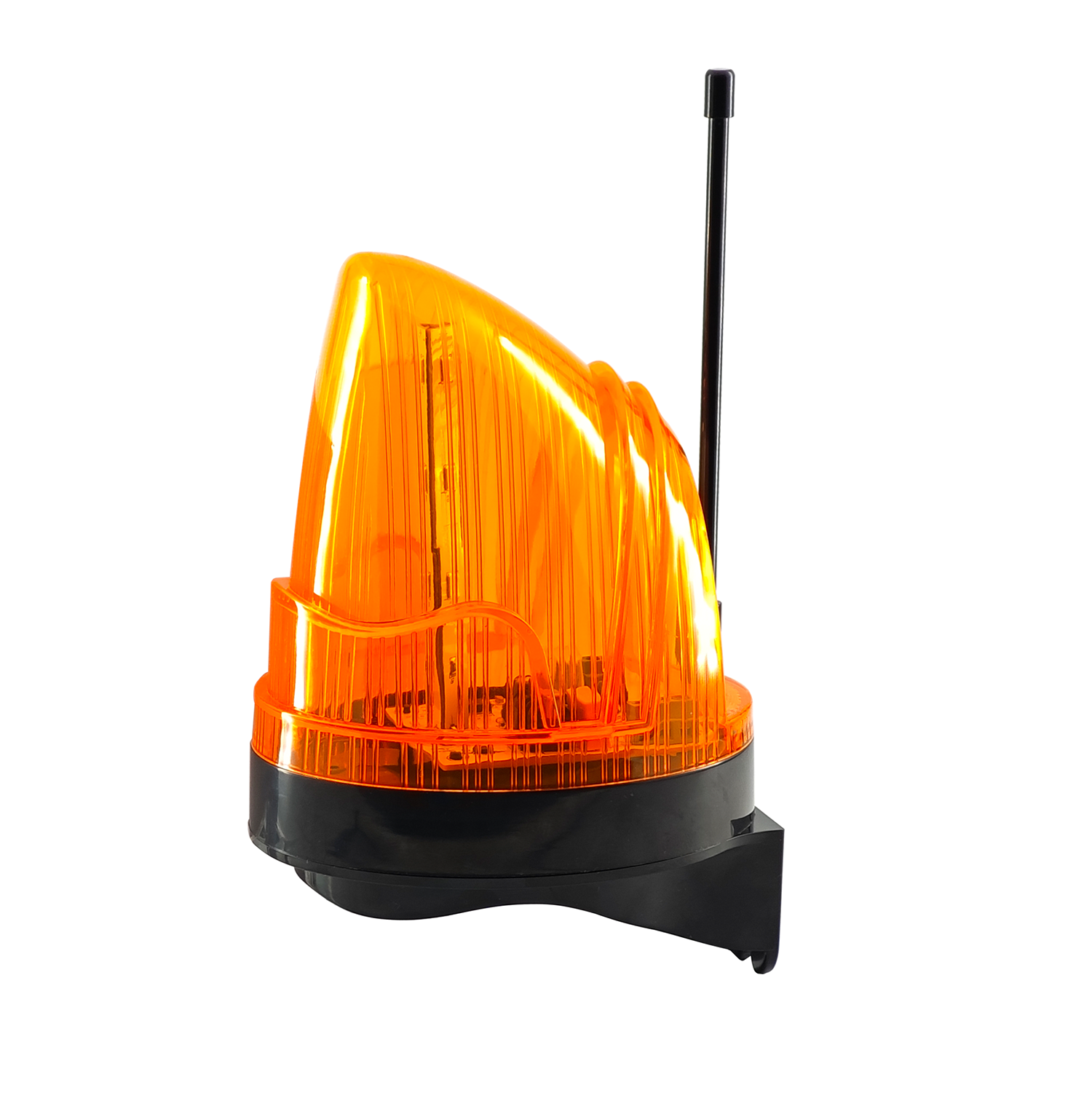

Modern Designed Automatic Gate Warning Alarm Lamp Durable LED Flash Lamp with Brass

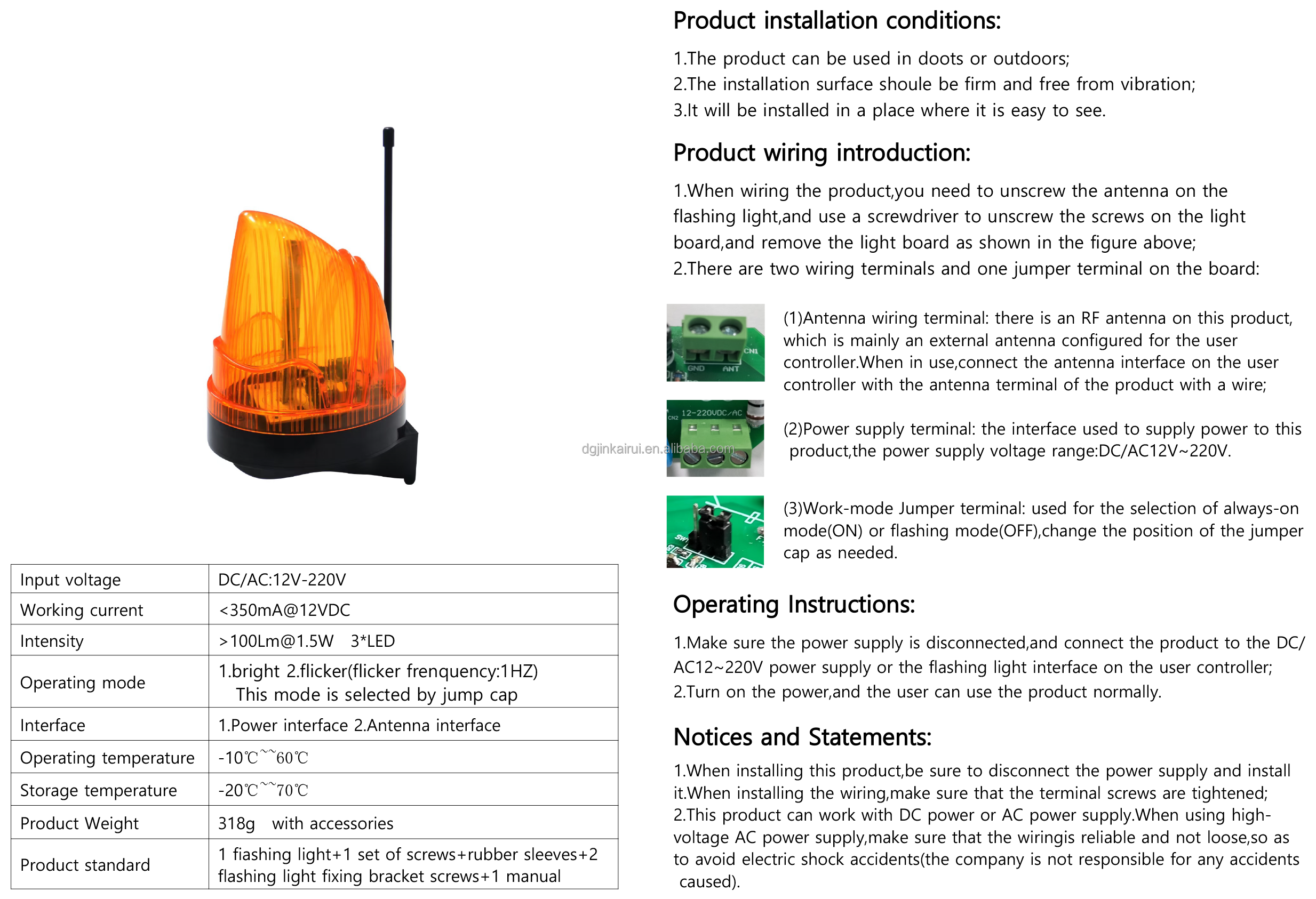

● LED Flashing Instruction Manual
This product is designed for both indoor and outdoor use. It should be installed on a firm, vibration-free surface and positioned
in a clearly visible location for optimal performance.
● Product Wiring Guide

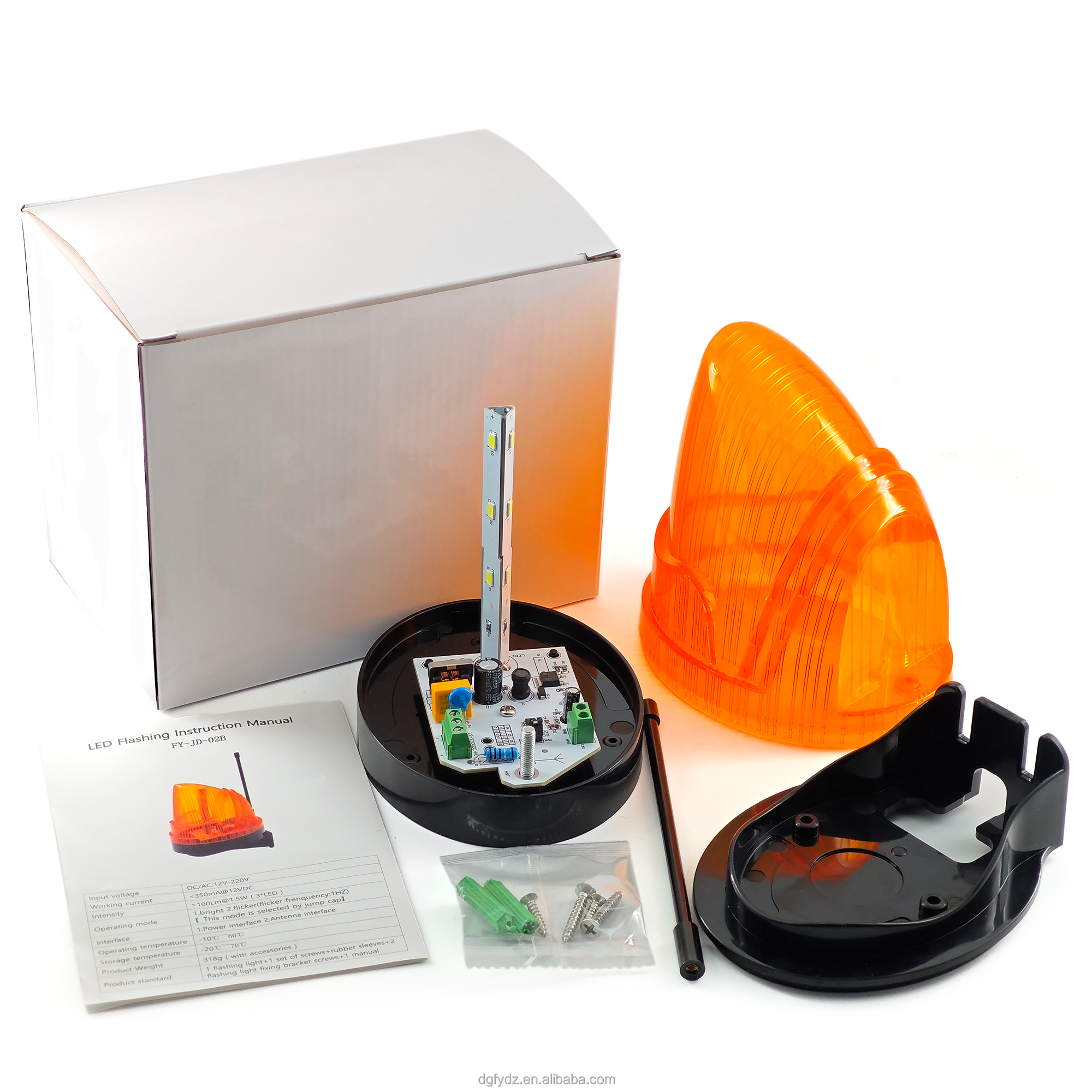

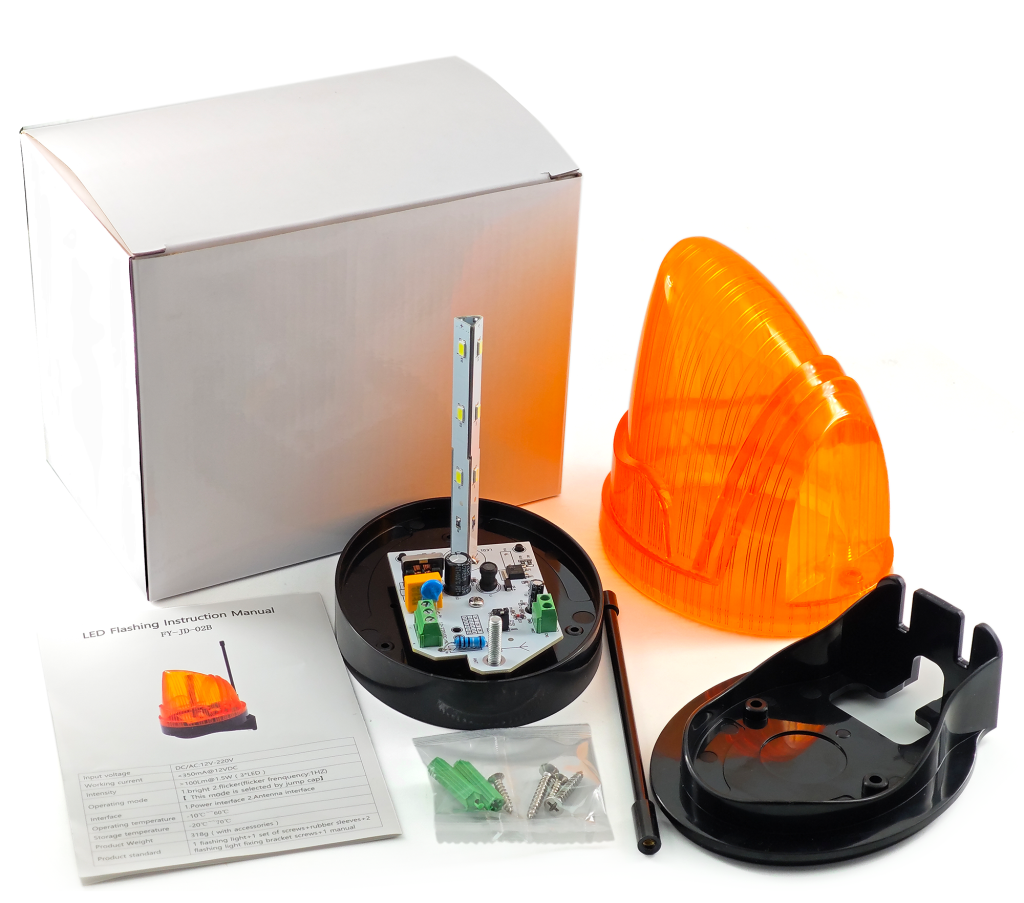

Before wiring, unscrew the antenna and remove the screws on the light board using a screwdriver. Carefully detach the light board as shown in the diagram. The board features two wiring terminals and one jumper terminal:
* Antenna Wiring Terminal: Equipped with an RF antenna, this terminal connects to an external user controller. Use a wire to link the antenna interface of the controller to the product’s antenna terminal.
* Power Supply Terminal: This terminal provides power to the product, supporting a DC/AC 12V~220V voltage range.
* Work-Mode Jumper Terminal: Allows switching between always-on mode (ON) and flashing mode (OFF) by adjusting the jumper cap.
● Operating Instructions
1. Ensure the power supply is disconnected before connecting the product to a DC/AC 12V~220V power source or the flashing light interface on the user controller.
2. Turn on the power, and the product will function as expected.
● Important Notices
* Safety First: Disconnect the power before installation. When wiring, ensure that all terminal screws are securely tightened.
* Power Compatibility: The product works with both DC and AC power supplies. When using high-voltage AC power, ensure that the wiring is secure and reliable to prevent electric shocks. (The company is not responsible for accidents resulting from improper installation.)
