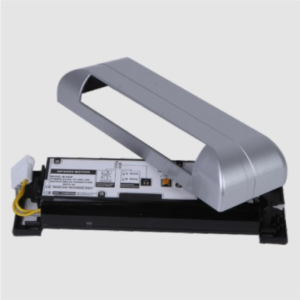

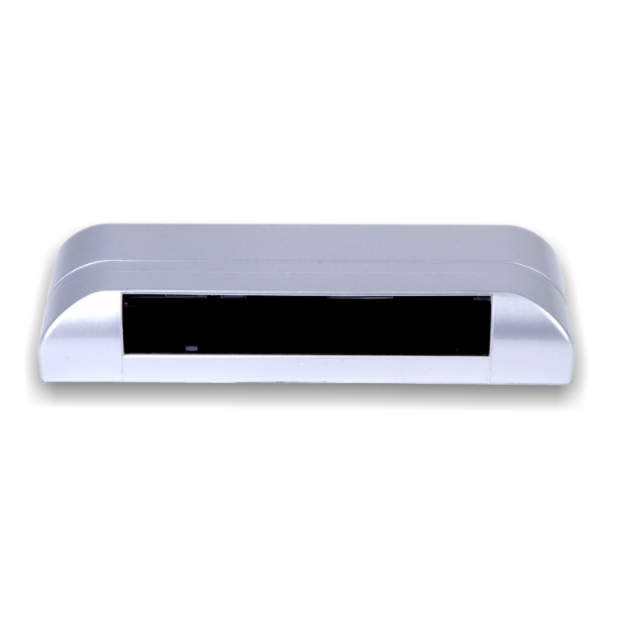

Infrared Sensor 204E

Description

Product application

This product is an active infrared sensor. The induction range of imported infrared electronic optical tube is flexible and convenient, and the distance control is accurate. Anti-interference ability is strong and the sensitivity is high, the misaction is very low, can be convenient for a variety of automatic door induction matching, especially suitable for the narrow door space or facing the human body walking frequently on the occasion. Overall characteristics

Overall characteristics

High-grade appearance, international structure technology, precision optical lens, structure design. Using advanced background analysis technology, it can automatically learn and analyze the background in the initial state of startup, and can lock the background information. Special door width range setting switch, can be through the combination of dial switch, to achieve a wide induction range or narrow induction range of free choice. By adjusting the main body and side range turning plate, and then combined with the sensitivity selection setting switch, the distance of the induction distance ahead can be accurately adjusted.

Technical parameter

Number of light: Six launch, six receive

Functional category: Detection of moving objects, induction start

Maximum installation height: 3000mm

Sensitivity adjustment function: Yes (knob adjustment)

Electric power: AC/DC12-36V±5%

Dynamic current: 110 mA (when DC12V has power supply); 68 mA (when DC12V has power supply)

Quiescent current: Sensing area: 1500(D)×2000(W)mm

Appearance size: 221(L)×74(W)×35(H)mm

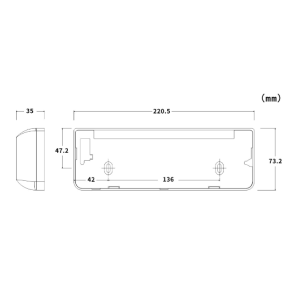

Product size 35 220.5 47.2 136 (mm) 73.2

The sensor starts the probe 001/002
