ES200 easy MDU (Mini Drive Unit)

Description

Main Technical Specifications

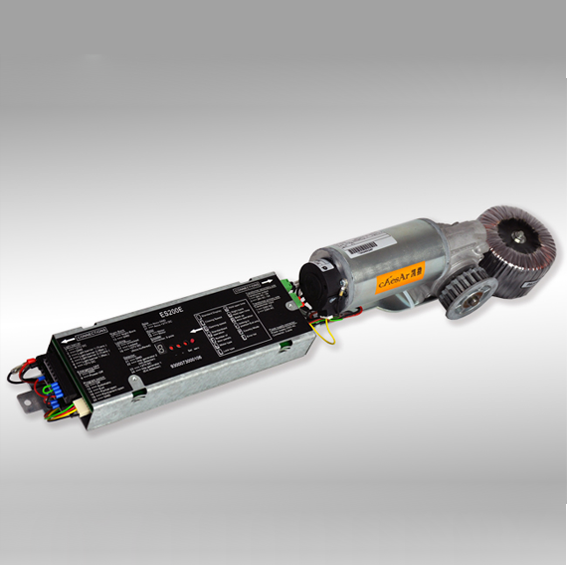

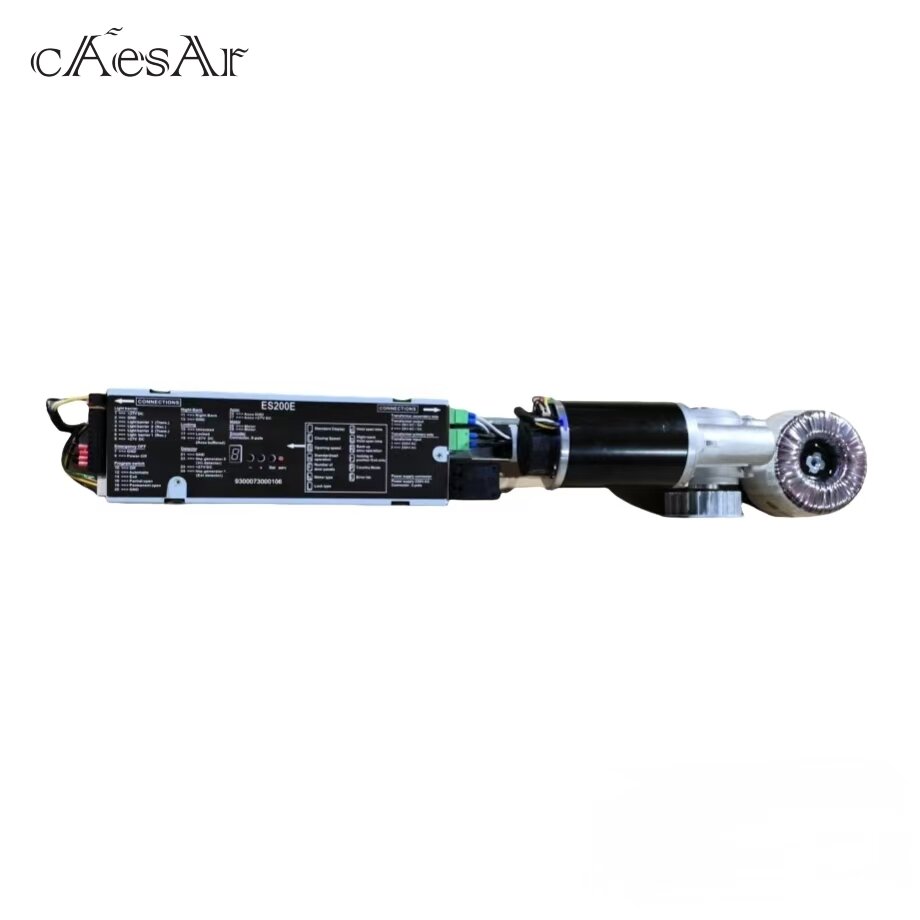

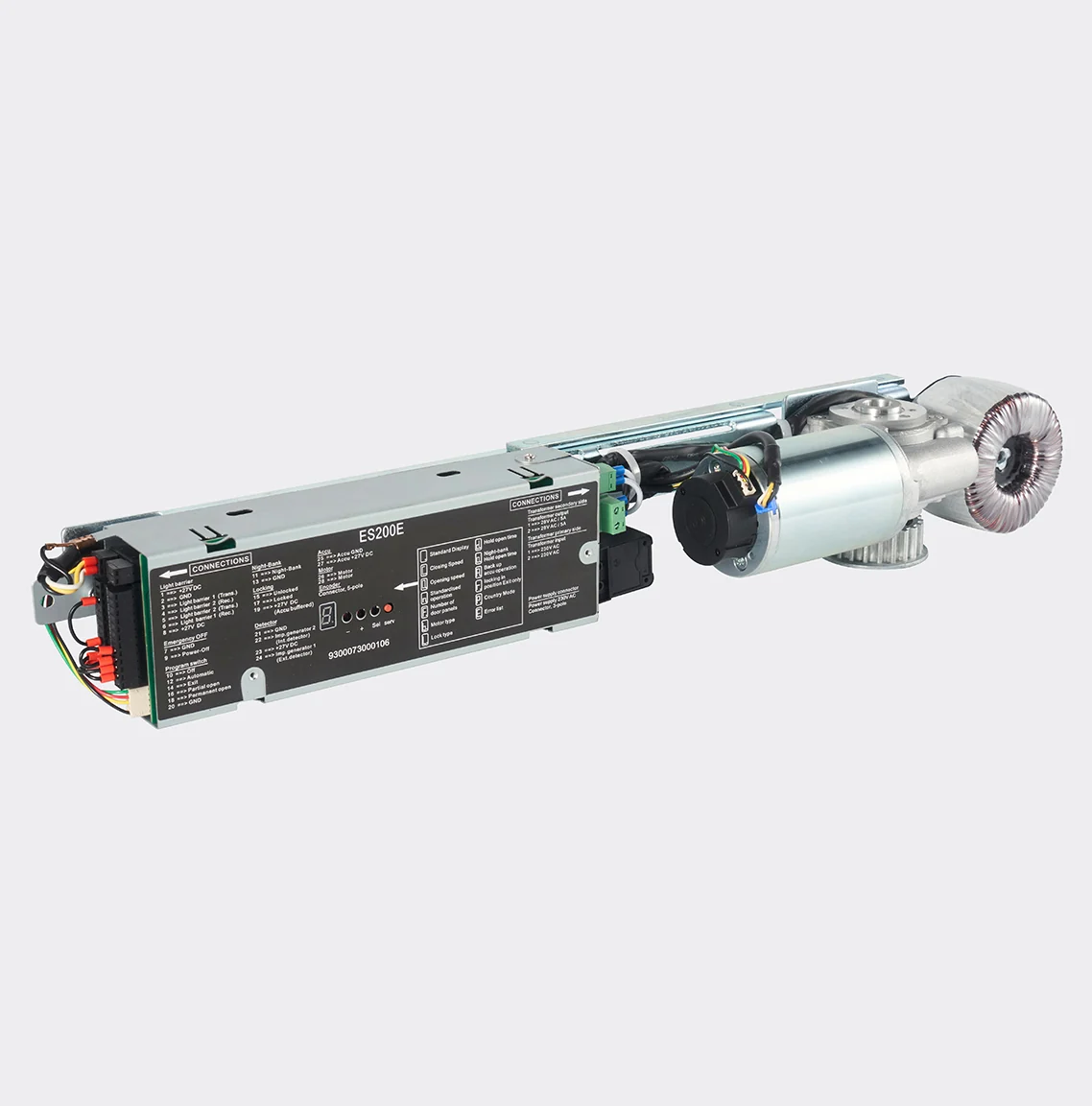

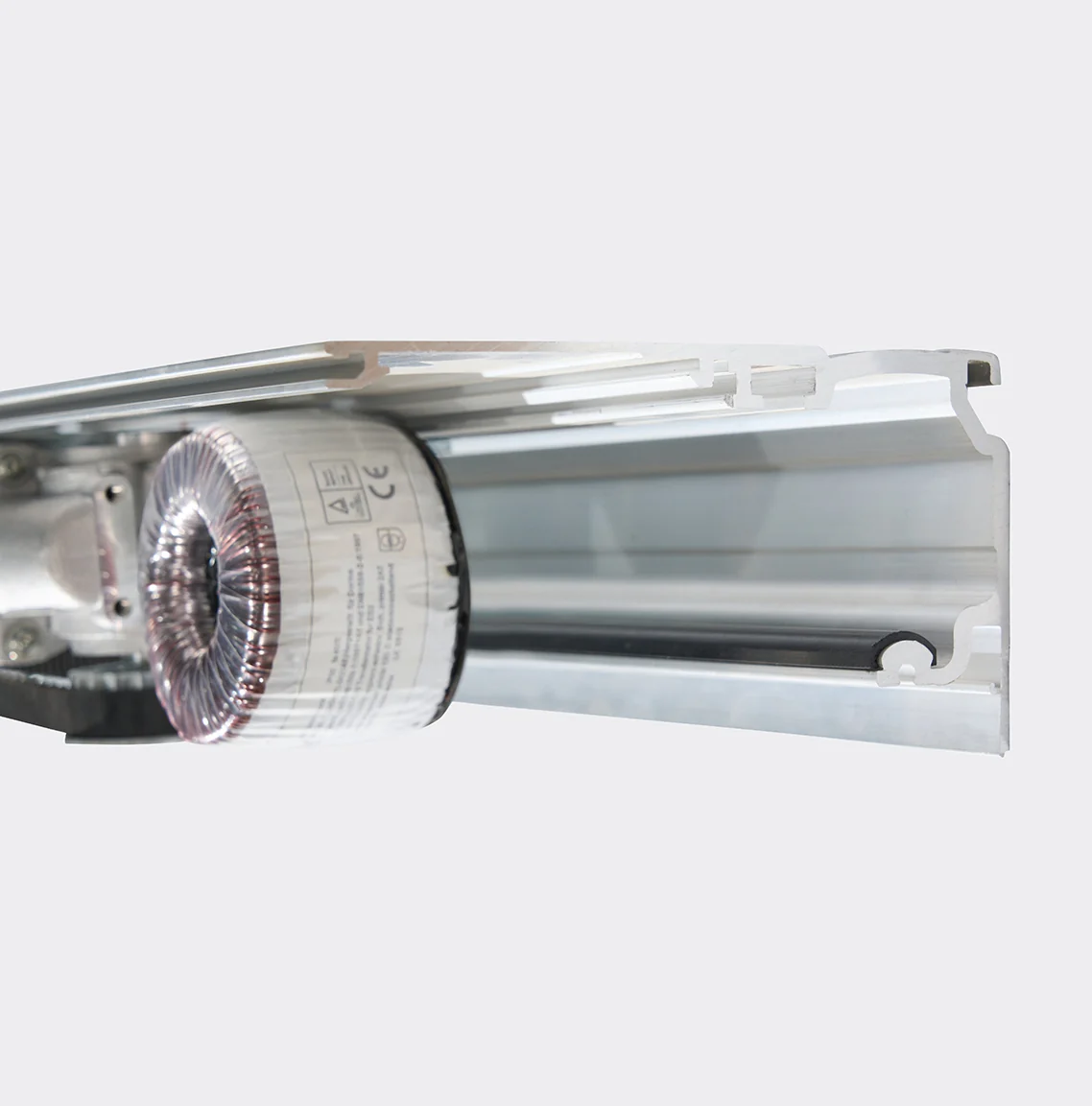

Product Name: CAESAR ES200easy Mini Drive Unit (MDU) — Direct‑mountable to the ES200easy door operator top rail for efficient, standardized installation and maintenance.
Compatibility Platform: Compatible with the ES200easy standard drive main unit platform and all regional variants of the ES200easy product. Telescopic‑door and dedicated emergency‑exit models utilise the same drive‑unit design, with model‑specific performance limitations applied accordingly.

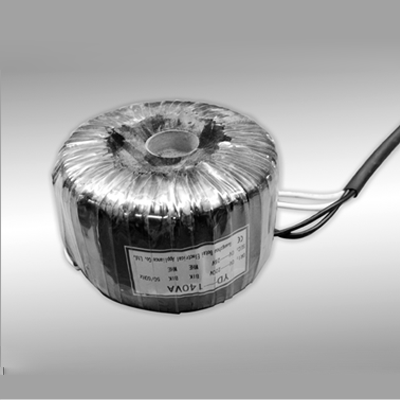

Bill of Components for ES200easy Mini Drive Unit: Controller (BM), Dunkermotoren GR 63×25 motor, universal power supply (approx. 90‑230 V), and steel mounting base. Factory‑pre‑integrated to minimise on‑site commissioning variables.
Door Operator Top‑rail Specifications: Supports 100 mm and 150 mm slim‑profile top rails. Nominal service life for the ES series: approx. 1 million opening‑closing cycles.
Drive Main‑Unit Performance Parameters: ES200 EASY load capacity: 2 × 100 kg.

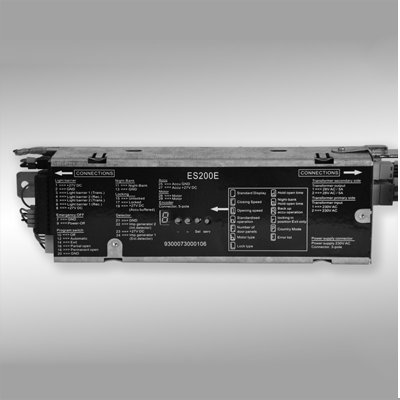

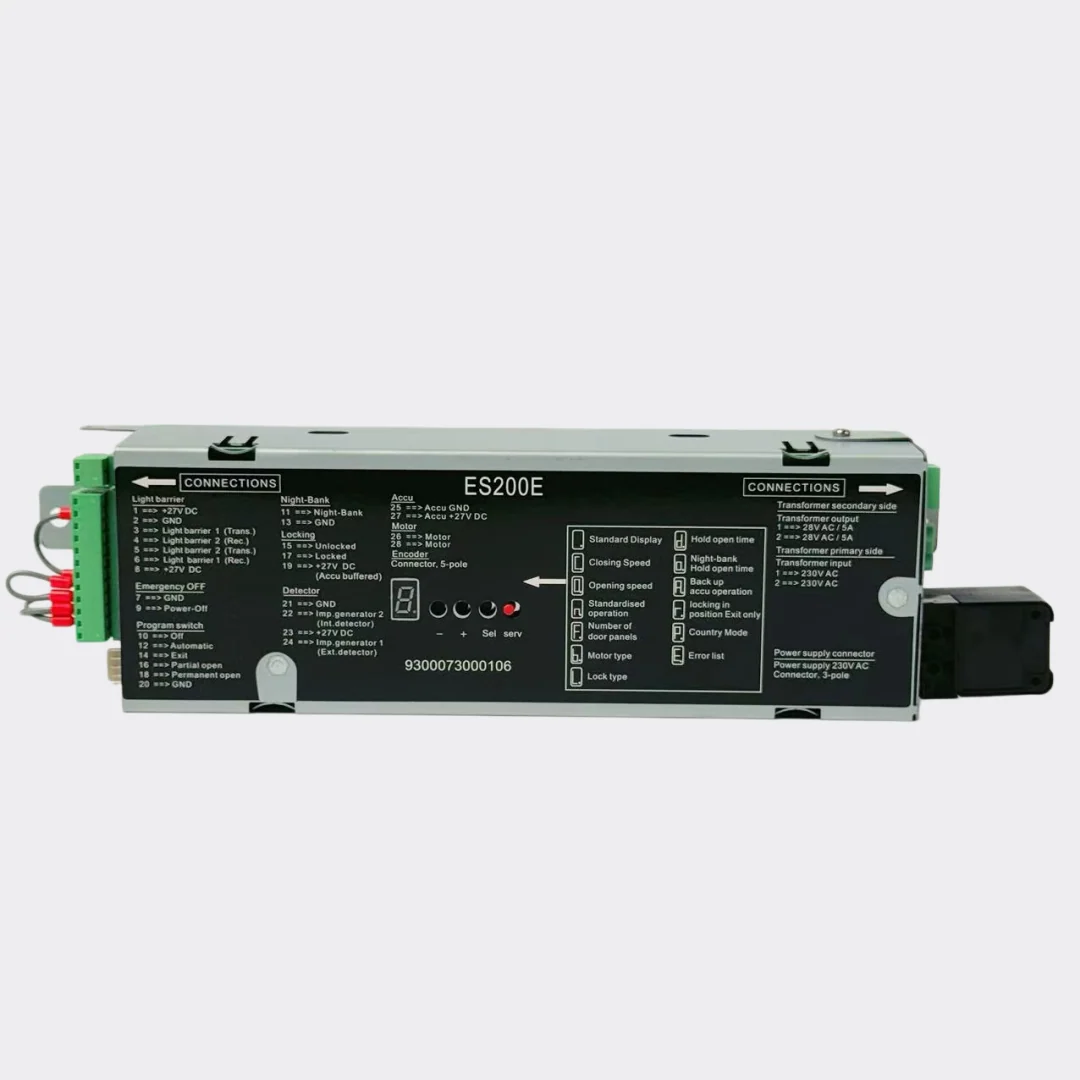

Control Architecture: Modular Base Module (BM), with optional Function Modules (FM). Sensors and external accessories use the DCW® bus. Commissioning and parameter configuration are performed via the unit’s built‑in integrated display.
Safety & Standards: Fitted with compliant sensors and door‑edge safety protection devices. When correctly commissioned, this unit complies with EN 16005 and DIN 18650 requirements.

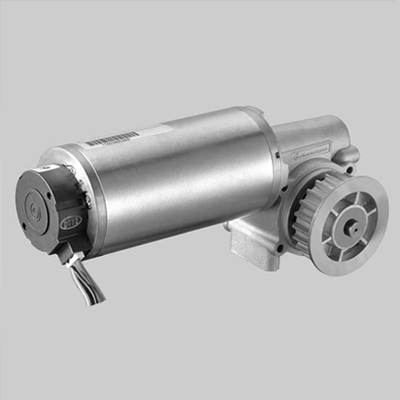

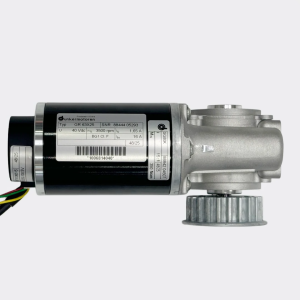

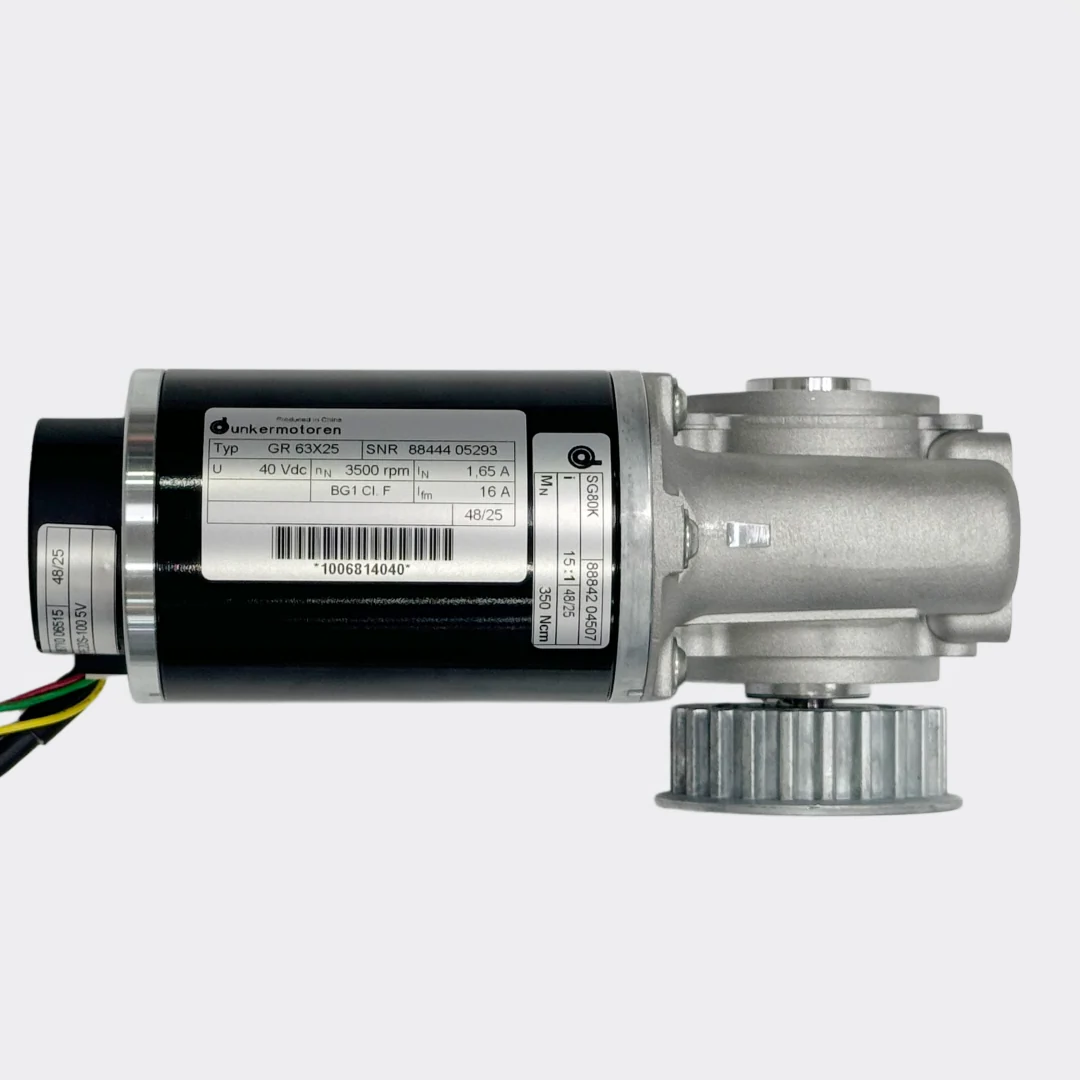

Motor Parameters (for reference during selection): GR 63×25 brushed DC drive motor supplied for ES200easy.
