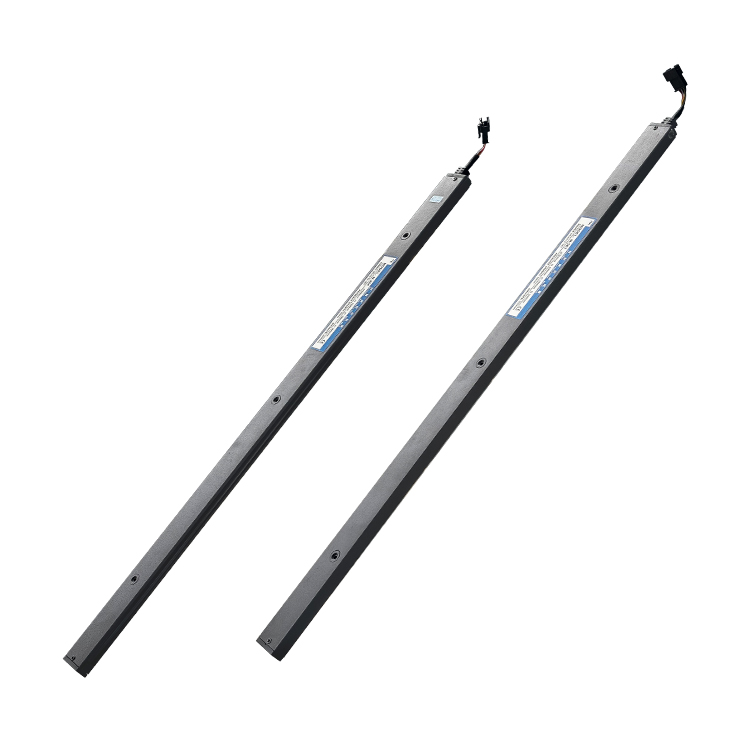

CN-261 Infrared Safety Light Curtain

Product Application

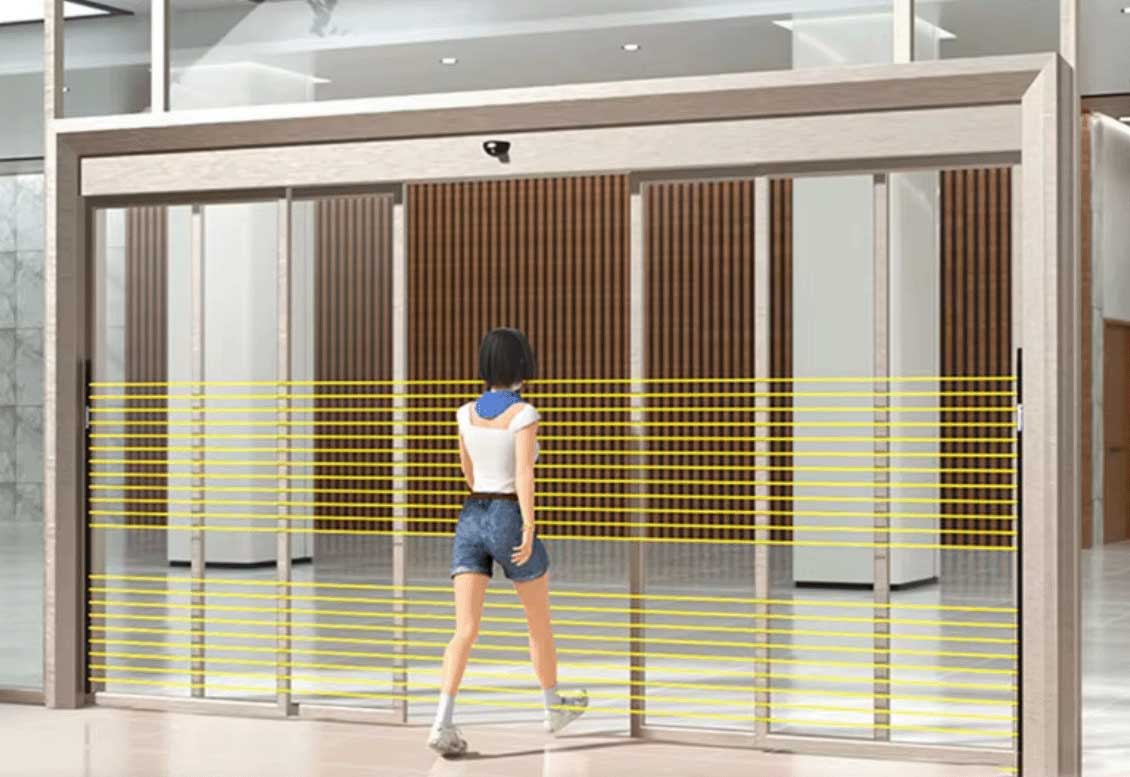

Widely used as an auxiliary function for anti-pinch safety (for people or objects) of elevators and automatic doors. It can accurately detect passing persons or objects and send door-open signals to automatic doors.

Overall Characteristics

►Plug-and-socket mating connection for easier installation. ►Timeout reminder function, configurable to enable or disable. ►Anti-redundancy function, enable/disable optional with 4 adjustable time gears. ►Blanking function can be turned on/off. When activated, shielding from top to bottom will not trigger the anti-pinch protection. ►Wide voltage design, 12~36V AC/DC input.
