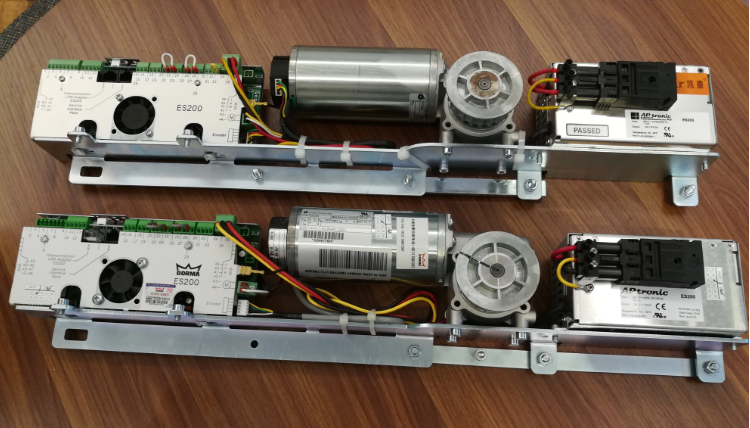

Caesar ES200 automatic door operator, derived from German technology, in line with EN10065:2012 European safety standards, CE, RoHS and FCC international certification, using international famous brand Germany Dunker motor, powerful, safe and reliable, excellent quality, hot sale to More than 95 countries around the world.
The ES200 is an elegant and fuctional unit that has been designed to meet the requirements of every automatic door application.

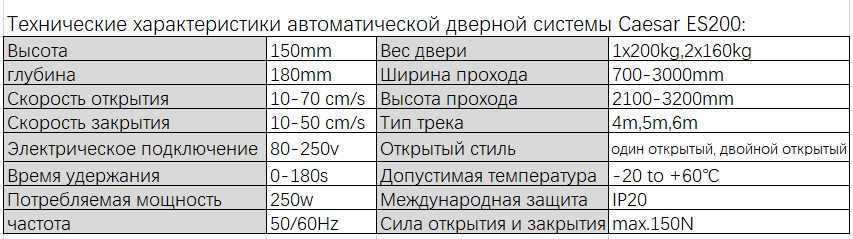

Features
Opening width of a single moving door: 700-3000 mm
Maximum bearing of single moving door: 200 kg
Opening width of double moving door: 900 – 3000 mm
Maximum bearing capacity of double moving door: 320 kg x2
Door machine height: 150mm
Installation depth: 175mm
On / close speed: 10-80 cm/s (adjustable)
Open hold time: 0-60s (adjustable)
Closed strength: 150N
Power input: AC 220V, 50 / 60 Hz
Power consumption: <150W>
Basic module (BM)
Functional programs
– Off
– Automatic
– Permanent open
– Partial open
– Exit only
– Night-bank switch
Connection for
– locking device
– light barriers
Function module (FM)
Pharmacy control
Door status detection (triple-mode)
Main and secondary closing edge protection
Emergency closing
Bell contact
Airlock control
Synchronising mode
* Optional (EN 16005 and DIN 18650)

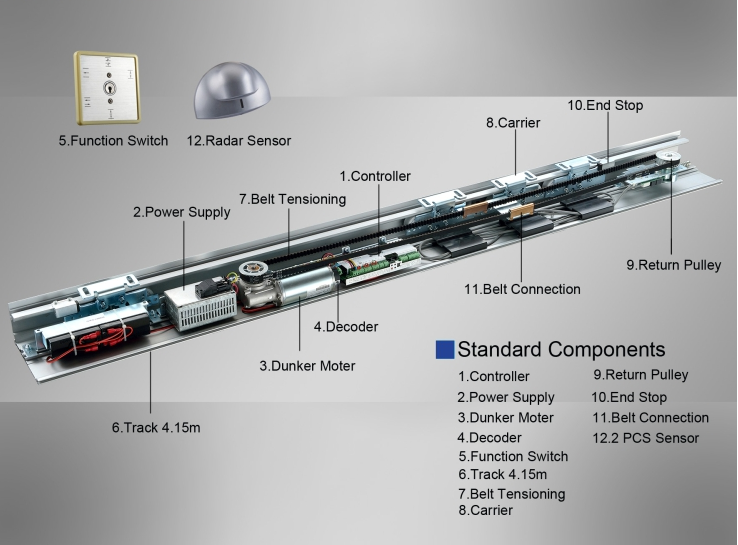

The professional profile system of ES 200
10+ years R&D and manufacturering experience
