Electric Linear Motor Drive Pocket Door kit

US$816.00 – US$888.00

Custom Linear motor drive package for new construction or renovation pocket door system designed to fit hidden within a 2 x 4 wall!

  • Slim and Easy installation
  • Locking or Non-Locking

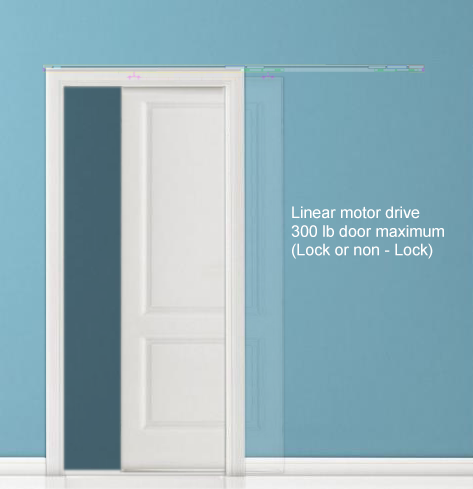

  • 300 lbs per Door Capacity

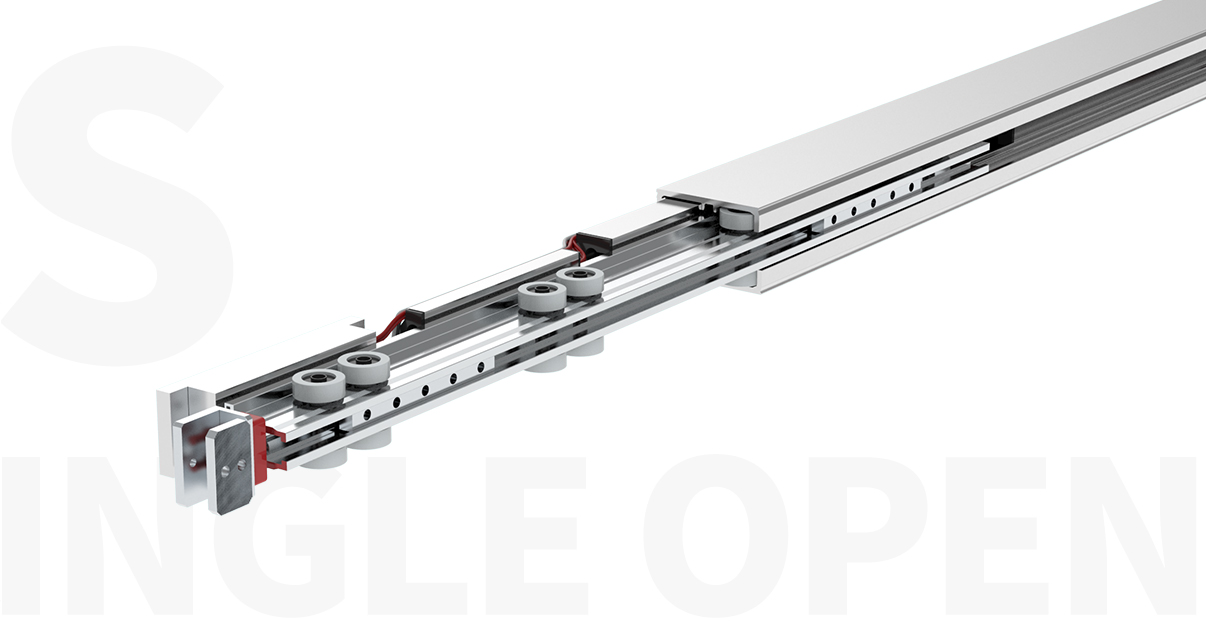

  • Caesar MS100 Linear Motor sliding door operator

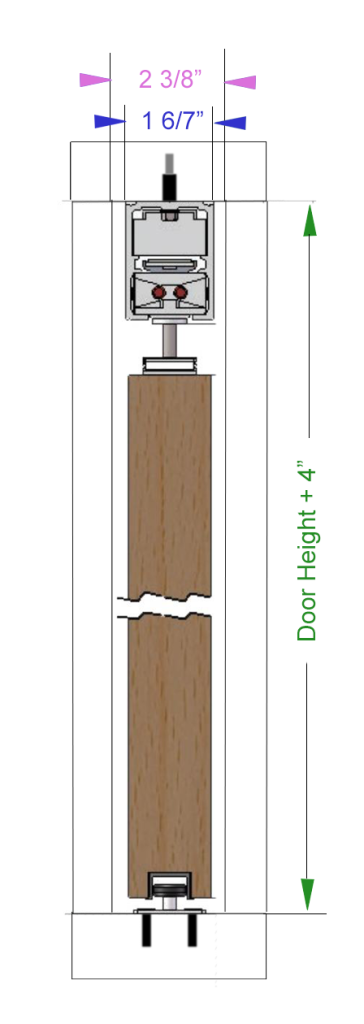

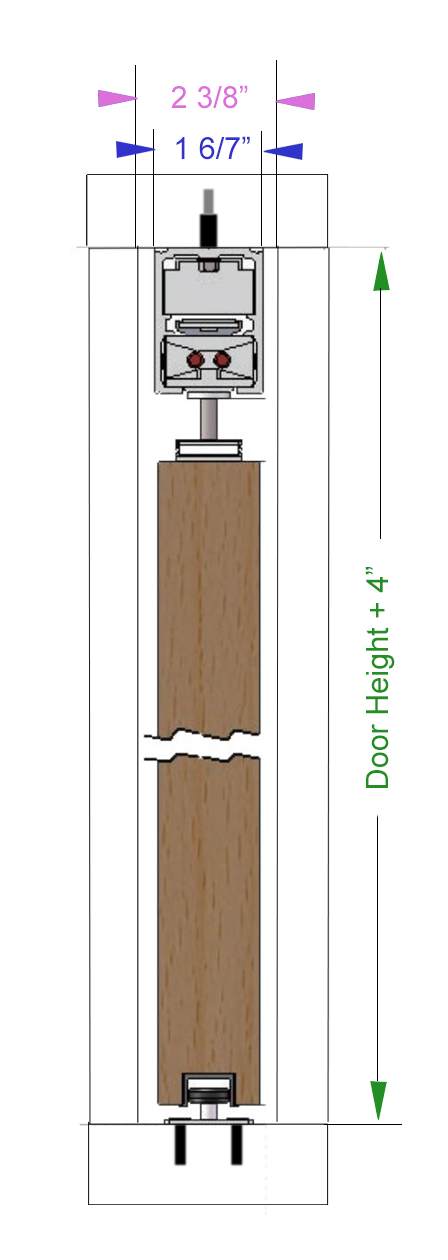

  • Fits inside a 2×4 wall
  • For Doors 1 1/8″ to 1 3/4″ thick (not included)
  • Safety of anti-pinch function and cut-out device
  • Low noise and smooth running
  • A revolutionary product of the pocket door
  • No belt drive, No traditional motor, No wall control box
  • built-in 110 VAC Outlet

Kit includes Intelligent module, Motor driven,Linear motor, Inner sliding guide, Safety power source, Door guide, Low temperature electric mortise lock (optional), and Wireless Buttons.

  • PLEASE NOTE: This system is designed for Indoor Residential Pedestrian use only.
  • Instructions is available. Other methods of installation are possible. It is solely the responsibility of the installer to insure the system is supported & attached properly.
  • Remote control distance: sight distance 12 meters, partition wall 6 meters
  • Sensor, Push button, Touchless button are available.
  • Instructions depict how to assembly and operating. The instruction video can be found on our website also.

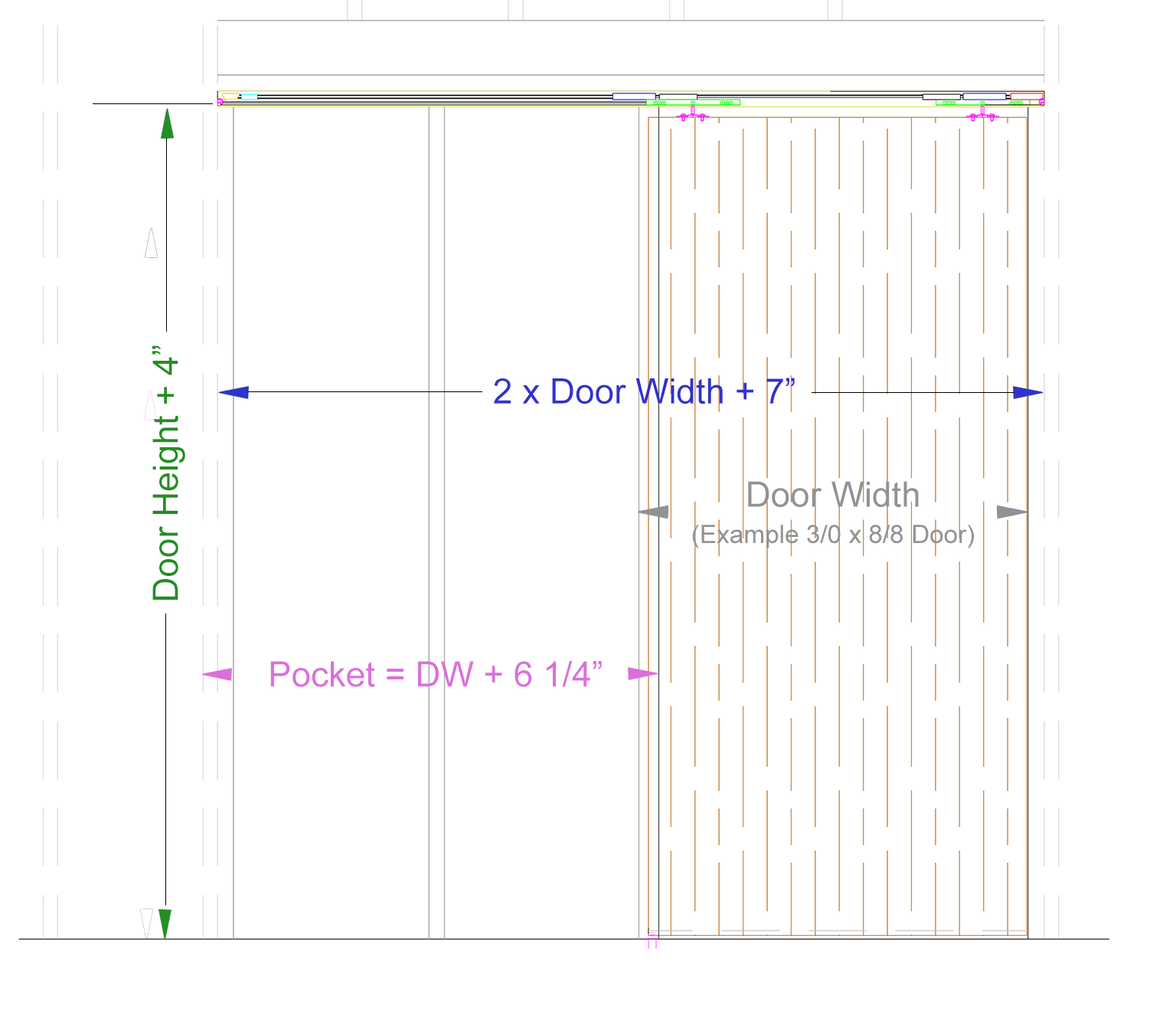

  • Opening Size
  • 30″ Single
  • 32″ Single
  • 34″ Single
  • 36″ Single
  • 42″ Single

A revolutionary product of the pocket door
