ECdrive automatic sliding door system

Drive system for linear sliding doors in high traffic

The linear sliding door system ECdriver offers numerous convincing benefits at an excellent cost/performance ratio. The drive is suitablefor doors in high traffic areas. The ESdrive covers door leaf weights of up to 120 kg and is uncompromisingly reliable. High-quality materials and the latest control technology guarantee high efficiency. Servicing costs are considerably reduced thanks to the selfcleaning roller carriage. Therounded cover in the elegant design gives the system an attractive appearance.

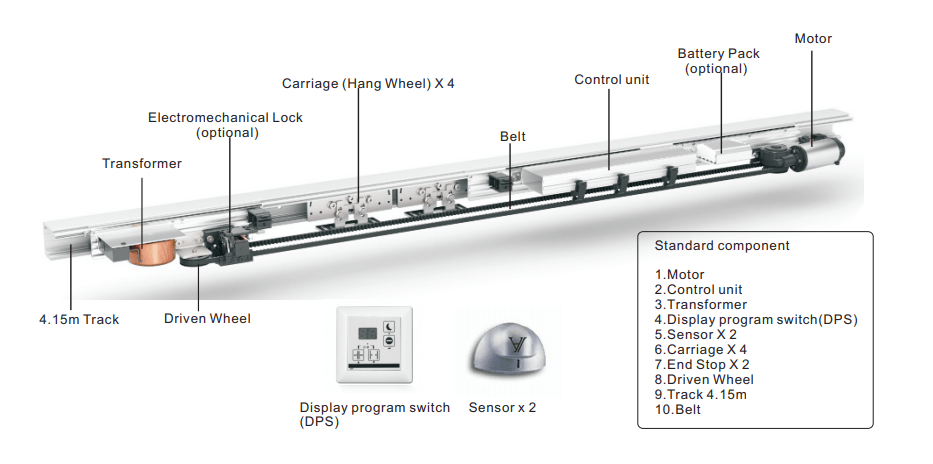

ECdrive automatic door system Features and benefits:

1.Driving motor adopts brush speed regulating motor, which has large torque, wide adjustable speed range and overheat protection of motor;

2.Transformer: high power, low temperature rise, small size;
3.The pulley comes with a cleaning brush, which has high strength, good abrasion resistance and low noise;;
4.CPU control unit has self-learning program; All parameters and fault diagnosis of the system can be adjusted by display programme switch (DPS);
5.With automatic reverse function, when the door encounters obstacles in the process of closing, it will automatically move in the opposite direction.
6.May be combined with all standard door profiles

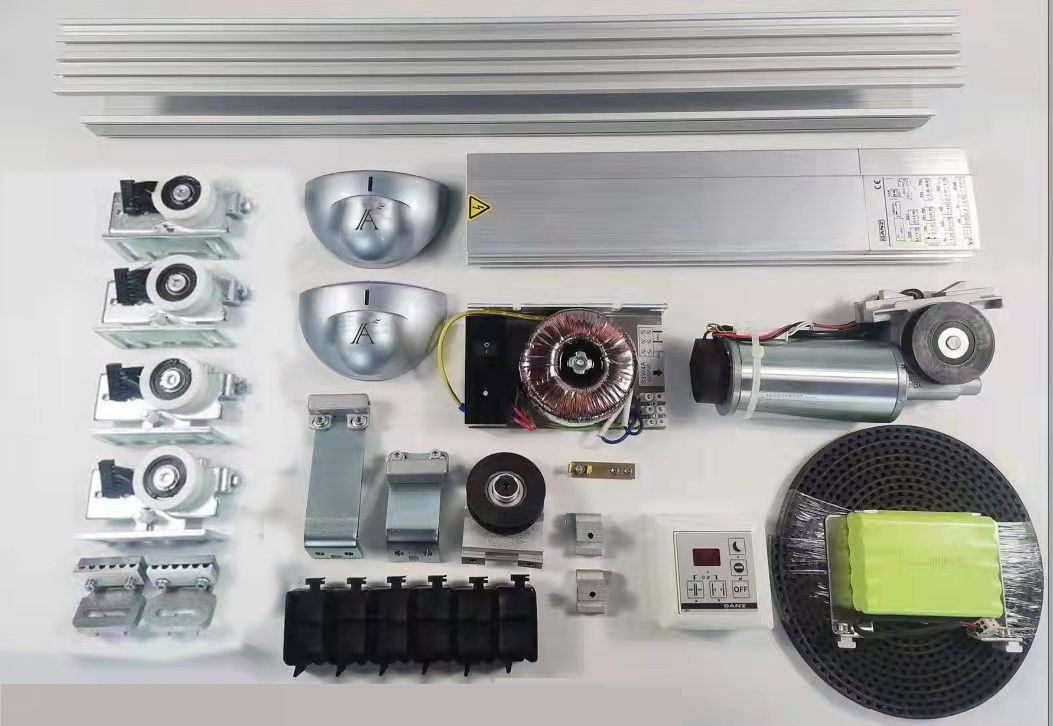

7.Fully comprehensive range of accessories
8.Reliable investment due to compliance with all relevant European standards.
